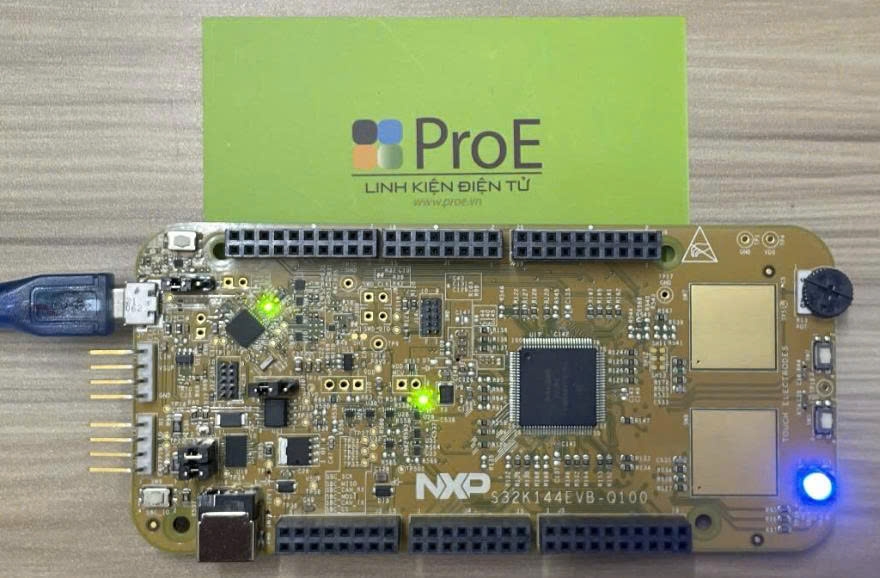

S32K144EVB S32K144EVB-Q100 S32K144 Evaluation Board

Microcontroller (MCU)

• 32-bit Arm^® Cortex^®-M0+ based S32K144

System Basis Chip (SBC)

• UJA1169TK: Mini high-speed CAN system basis chip

• TJA1027: LIN 2.2A/SAE J2602 transceiver

• OpenSDA: Serial and Debug Adapter with support for several industry-standard debug interfaces

• Easy access to the MCU I/O header pins for prototyping

• Small form factor
• Low cost

• Arduino^® UNO pint-out compatible with expansion “shield” support

• On-board connectivity for CAN, LIN, UART/SCI

• Flexible power supply options: micro USB or external 12 V supply

• 2 x touchpads
• 1 x potentiometer
• 1 x RGB LED
• 2 x push buttons
