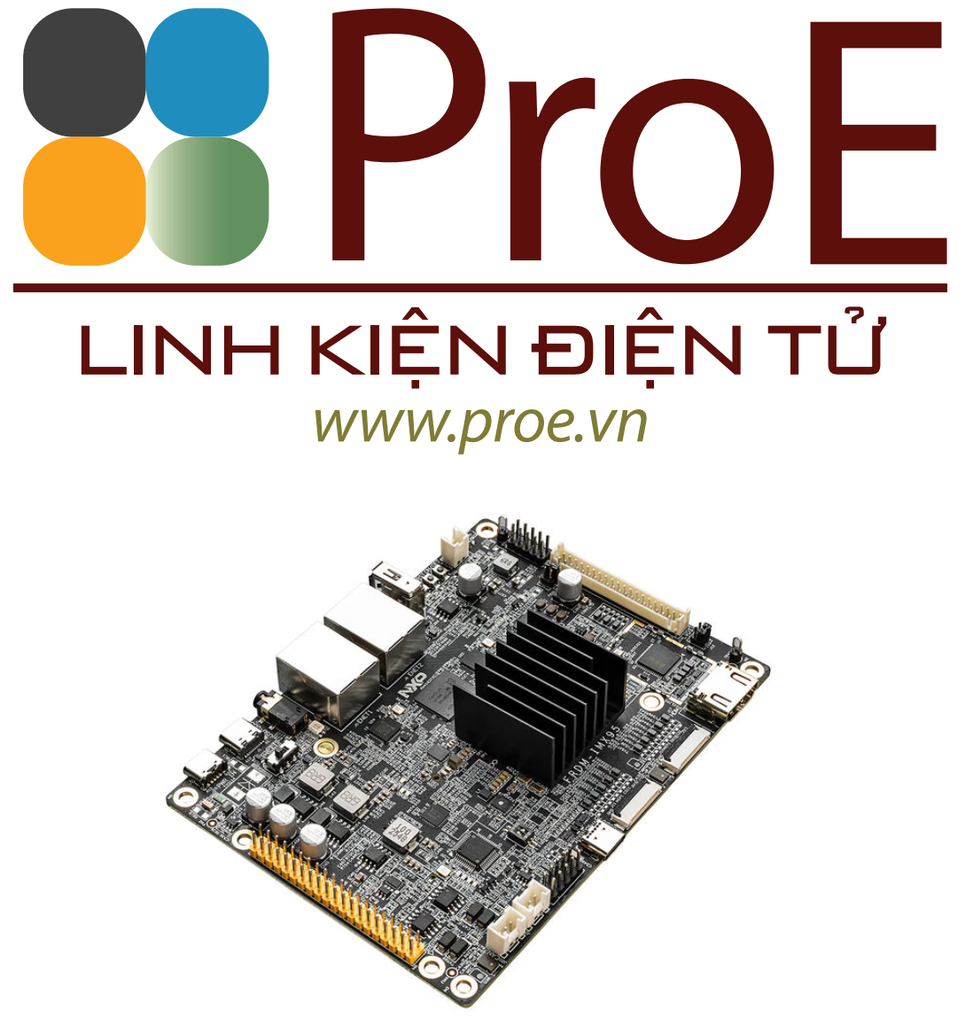

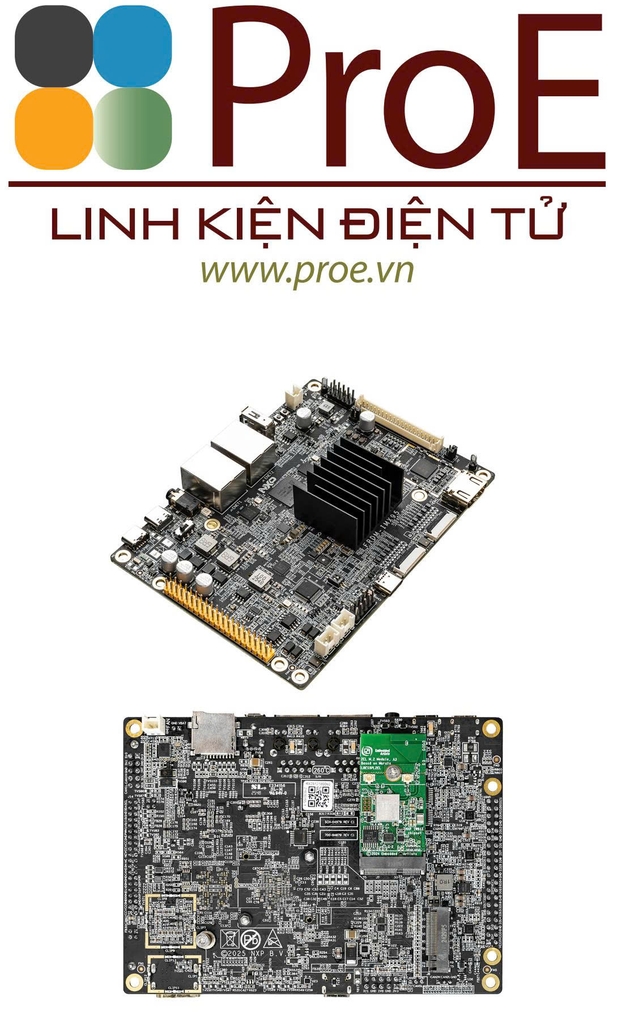

FRDM-IMX95 FRDM i.MX 95 Development Board

The FRDM‑IMX95 is a low‑cost, compact development board built on the powerful i.MX 95 applications processor in a 15 mm x 15 mm package. Designed for rapid prototyping and evaluation, it delivers advanced AI acceleration, rich multimedia performance and connectivity based on Wi-Fi 6 Tri-Radio IW612 M.2 module ideal for modern edge designs.

With flexible expansion interfaces, comprehensive software enablement and integrated GoPoint, an intuitive demo interface that simplifies exploring key use cases, the FRDM‑IMX95 is perfectly suited for advanced HMI systems, industrial networking, edge gateways, vision processing and AI‑driven applications.

Features

Processor

• i.MX 95 Applications Processor
• 6x Arm® Cortex-A55
• 1x Arm® Cortex-M7
• 1x Arm® Cortex-M33
• NXP eIQ® Neutron NPU

Memory

• 8 GB LPDDR4X-4000
• 32 GB eMMC 5.1
• MicroSD slot
• Electrically Erasable Programmable Read-Only Memory (EEPROM)

Display and Camera Interfaces

• 1 x4 lane combo MIPI-DSI/CSI (FPC 22-pin connector)
• 1 x4 lane LVDS to HDMI (HDMI connector)
• 1 x4 lane LVDS (2x20-pin HDR)
• 1 x4 lane MIPI-CSI (FPC 22-pin connector)

Wireless​

• M.2 module with NXP’s Wi-Fi 6 Tri-Radio IW612

Audio

• 3.5mm Audio Jack for Master Quality Sound (MQS) support
• Pulse Density Modulation (PDM) Microphone Support

Connectivity

• 1x USB 3.0 Type-C connector
• 1x USB 2.0 Type-A connector
• 2x GbE RJ-45
• 2x CAN Header (HDR)
• 2x20-pin Expansion Interface (EXPI) HDR
• 2x5-pin HDR for I²C, ADC and CAN

Debug

• UART via USB-Type C
