FRDM-IMX95-PRO
- Mã sản phẩm: FRDM-IMX95-PRO
- Nhà sản xuất: Freescale Semiconductor - NXP
- Website hỗ trợ: https://www.proe.vn
Liên hệ
FRDM i.MX 95 Pro: Wi‑Fi 6 Tri‑Radio and Dual M.2 Expansion Development Board for Edge AI Applications

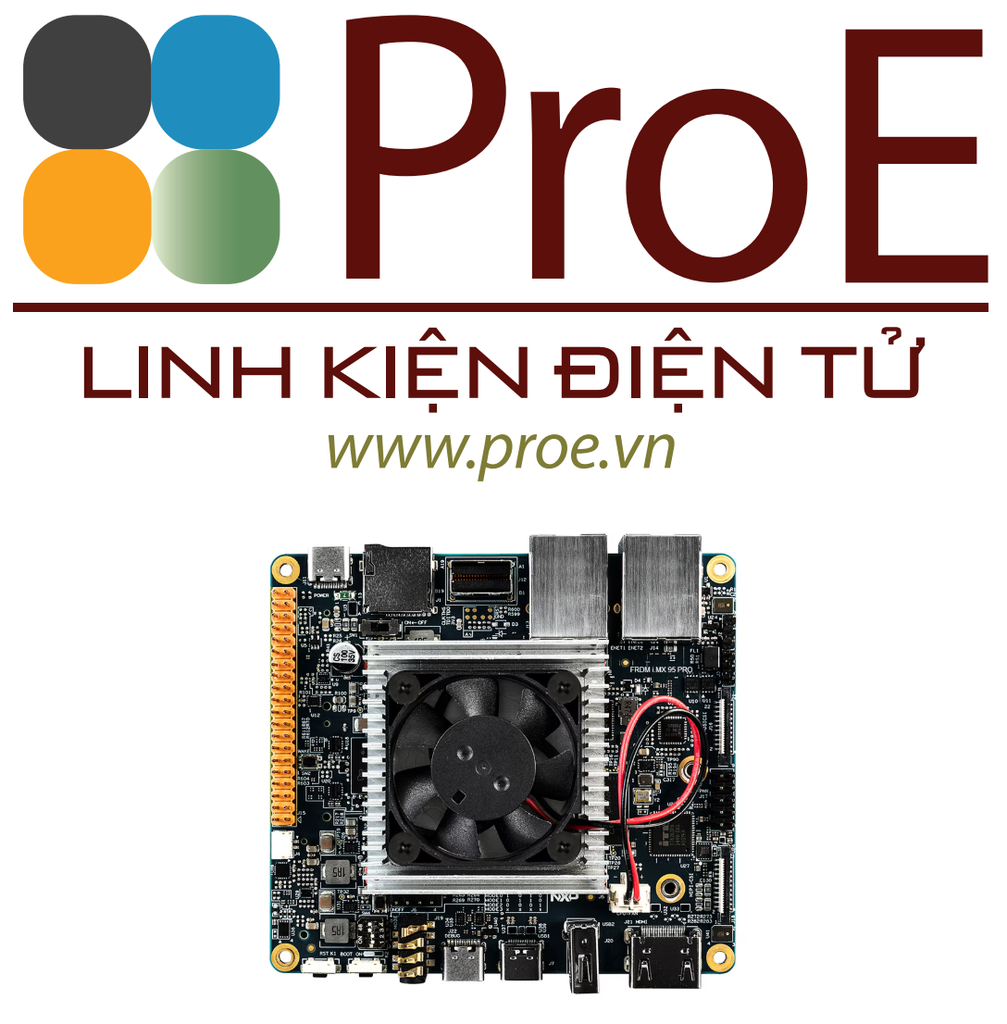

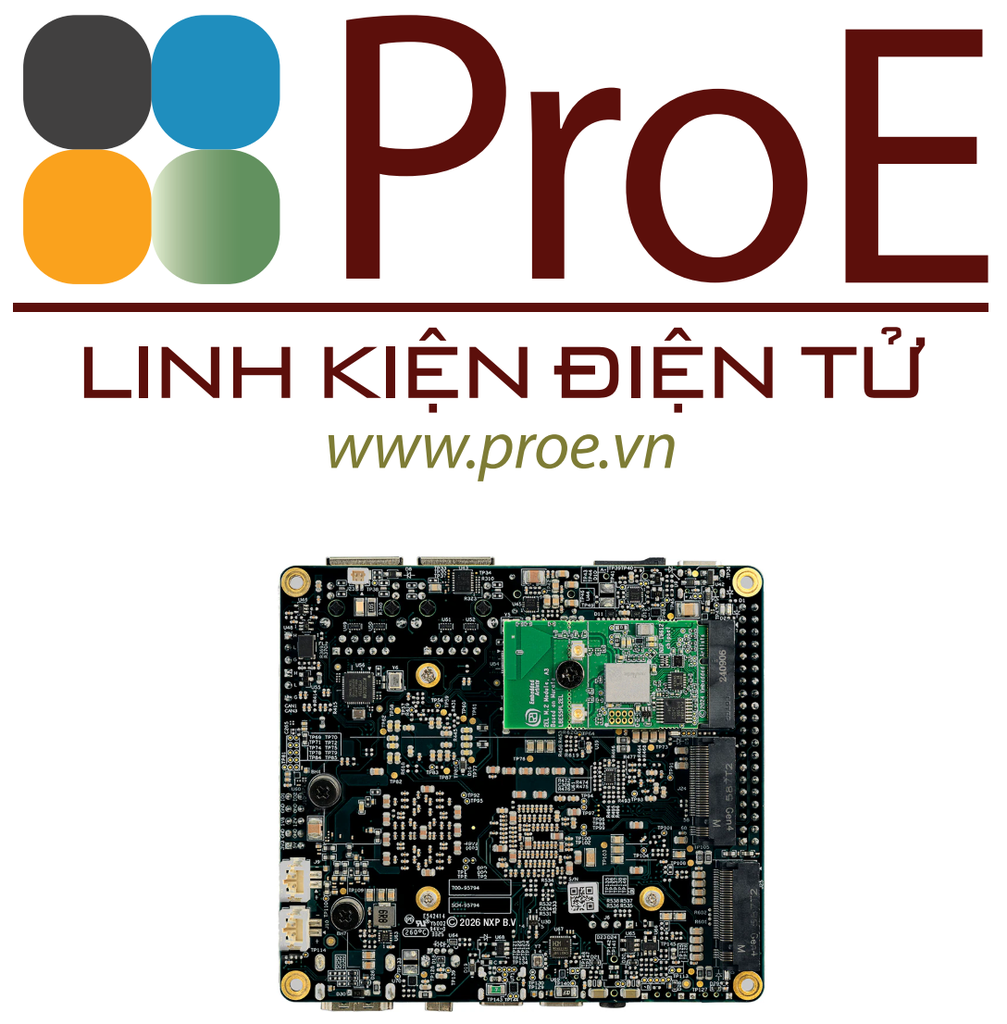

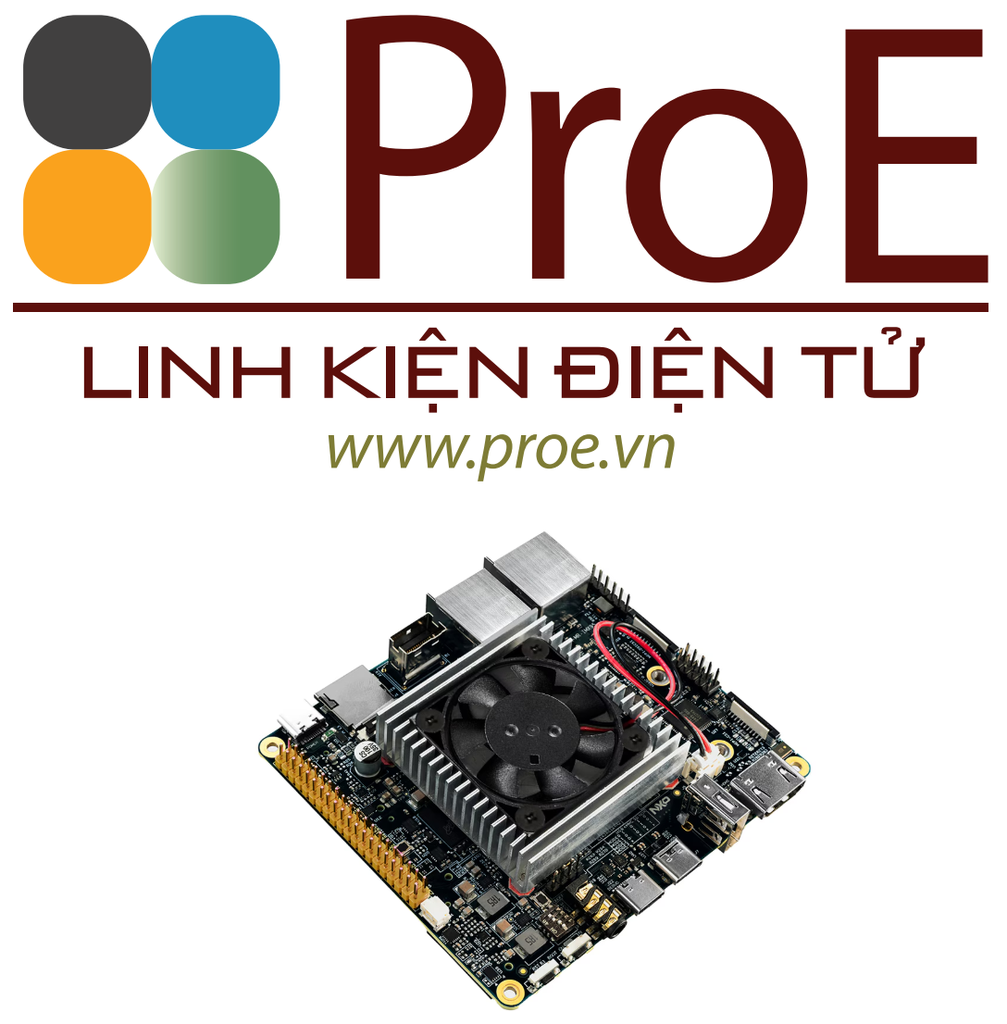

The FRDM i.MX 95 Pro development board evaluates the i.MX 95 Applications Processor in a compact 19 mm × 19 mm package. The board integrates six Arm® Cortex®-A55 cores, one Arm® Cortex®-M7 core and one Arm® Cortex®-M33 core, together with the eIQ® Neutron Neural Processing Unit (NPU) for edge AI acceleration. Onboard Wi-Fi 6 Tri-Radio IW612 connectivity delivers Wi-Fi 6, Bluetooth 5.4 and 802.15.4, while a 10-Gigabit Ethernet (GbE) connector and two GbE ports support high-speed industrial networking. Two M.2 Key-M connectors accept Ara240 discrete NPU (DNPU) modules or SSD expansion, and 16 GB LPDDR5 memory with rich display and camera interfaces supports demanding multimedia workloads. The GoPoint demo interface simplifies exploring key use cases across advanced human machine interface (HMI), industrial networking, robotics, edge gateways and vision processing.
Features
Processor
- i.MX 95 Applications Processor
- 6x Arm Cortex-A55
- 1x Arm Cortex-M33
- 1x Arm Cortex-M7
- eIQ Neutron NPU
Memory
- 16 GB low-power double data rate 5 (LPDDR5)-6400MT/s
- 32 GB embedded Multimedia Memory Card (eMMC)
- 512 Mbit Quad serial peripheral interface (SPI) Nor flash
- MicroSD slot
- Electrically erasable programmable read-only memory (EEPROM)
Display and Camera Interfaces
- 1x4 data lane combo mobile industry processor interface-display serial interface (MIPI-DSI)/camera serial interface (CSI) flexible printed circuit (FPC) 22-pin connector
- 1x4 lane low-voltage differential signaling (LVDS) to HDMI® (HDMI connector)
- 1x4 data lane MIPI-CSI FPC 22-pin connector
Wireless
- M.2 module with NXP’s Wi-Fi 6 Tri-radio IW612
Audio
- 3.5 mm audio jack for medium quality sound (MQS) support
- Pulse-density modulation (PDM) MIC Support
Connectivity
- USB 3.0 Type-C connector
- USB 2.0 Type-A connector
- 2x GbE RJ45
- 1x 10 GbE connector
- 2x controller area network (CAN) header (HDR)
- 2x5-pin HDR for AUX-PWR
- 1x4-pin HDR for I²C, analog-to-digital converter (ADC) and tamper
- 2 x 20-pin expansion I/O header
- 2x M.2 Key-M connectors for AI card and SSD
Debug
- Universal asynchronous receiver/transmitter (UART) to USB-Type C for debug
