EVAL BOARD S32K3X8
- Mã sản phẩm: S32K3X8EVB-Q289
- Nhà sản xuất: NXP Semiconductors
- Website hỗ trợ: https://www.proe.vn
29.000.000₫

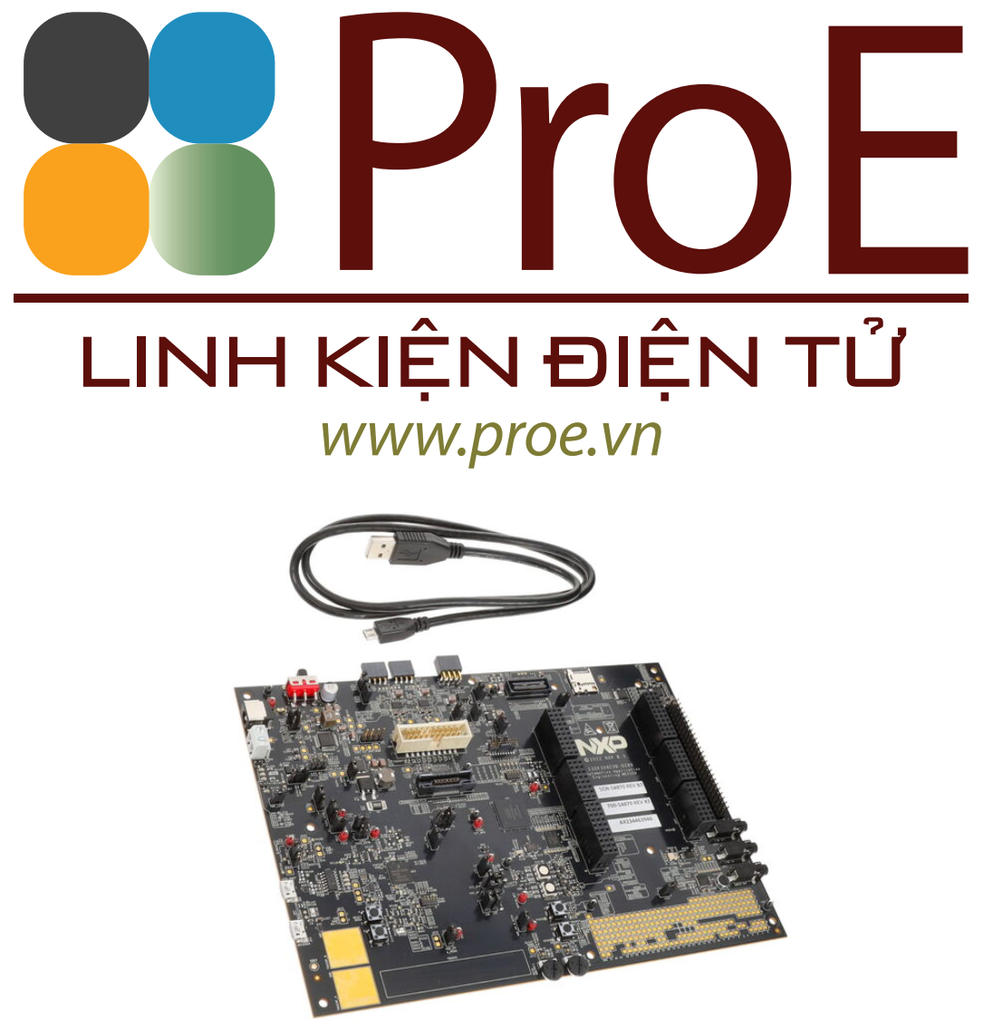

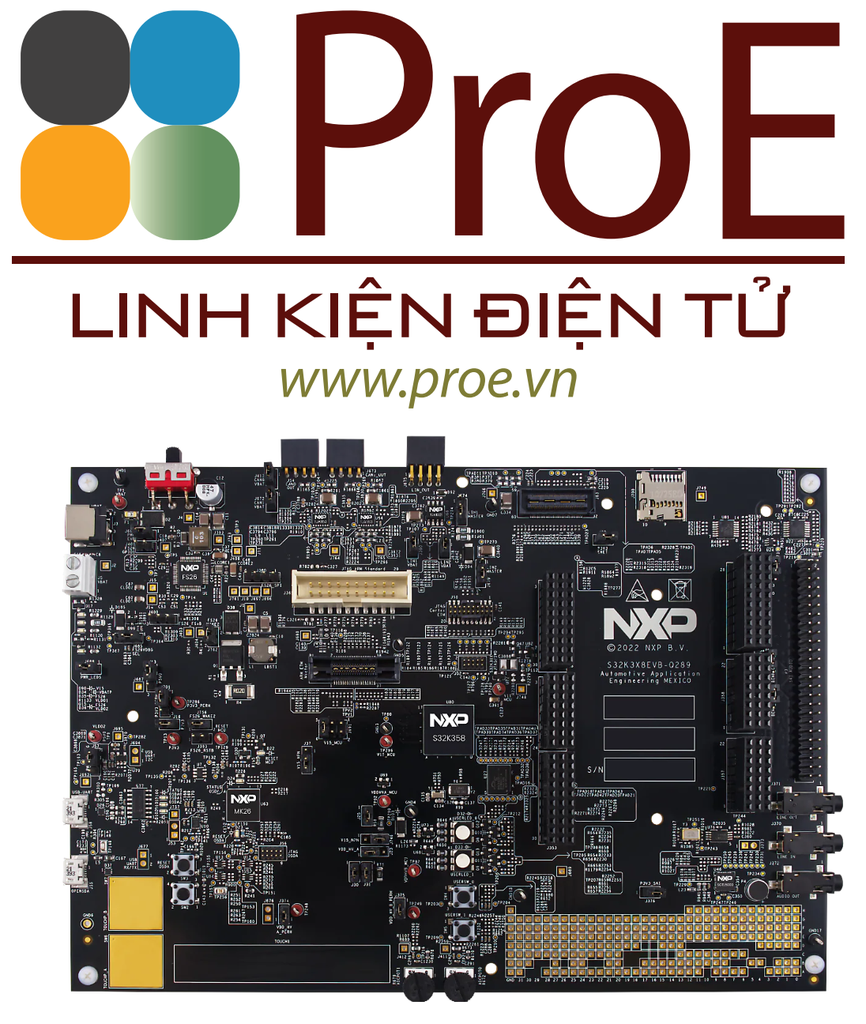

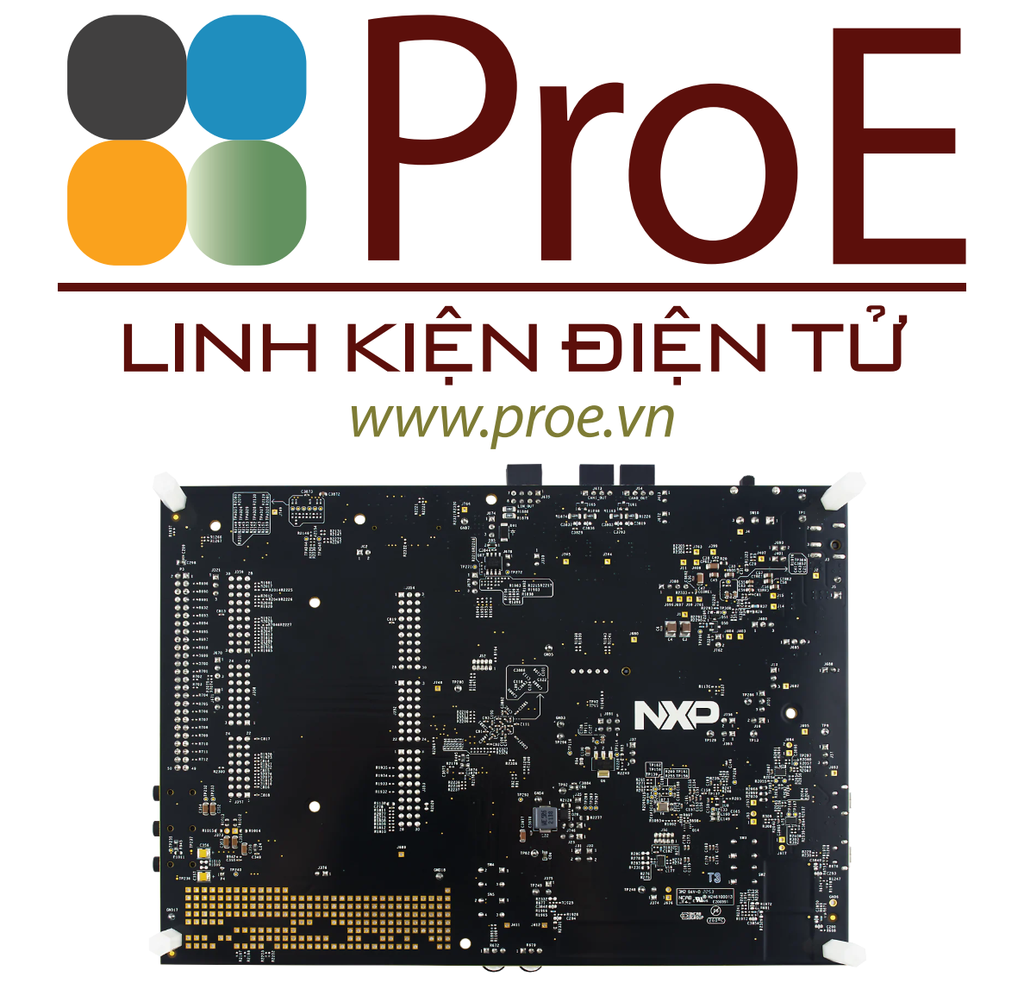

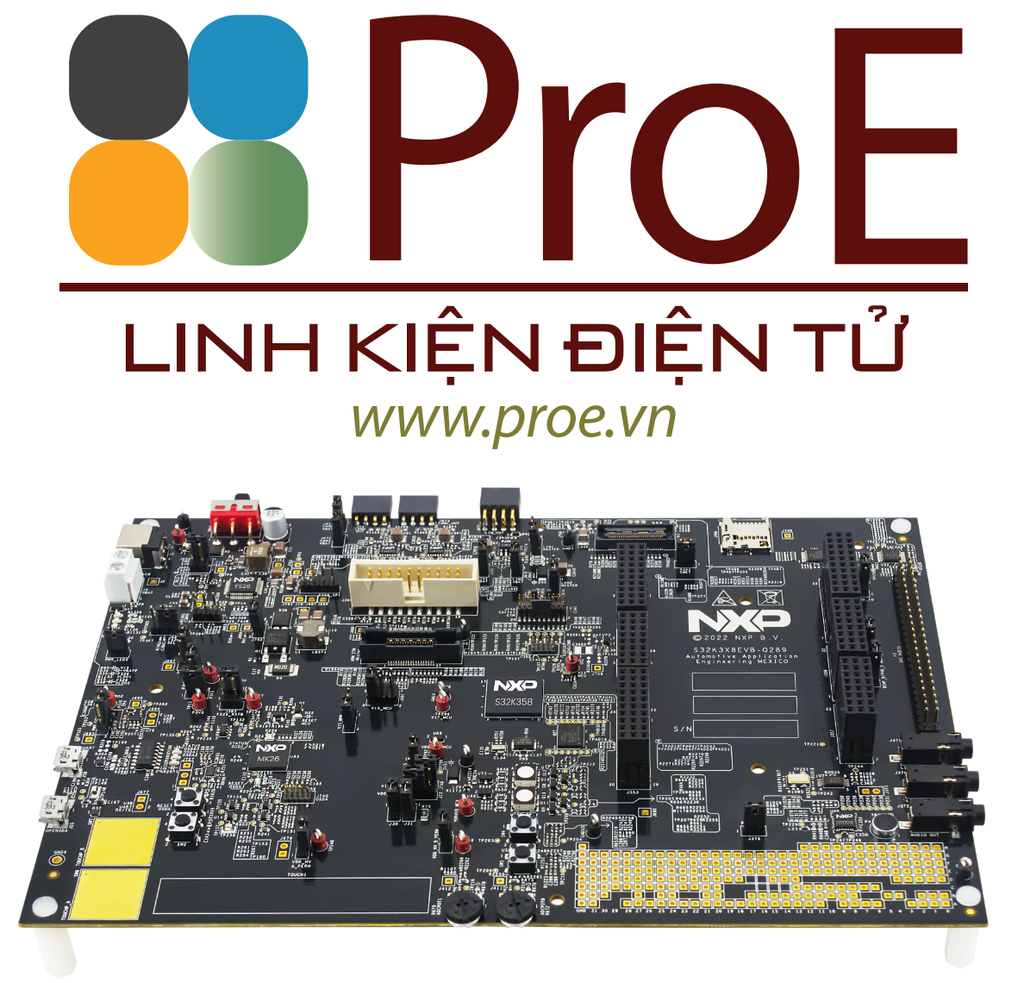

S32K3X8EVB-Q289 Evaluation Board for Automotive General Purpose
The S32K3X8EVB-Q289 is an evaluation and development board for general-purpose automotive and industrial applications.
Based on the 32-bit Arm®Cortex®-M7 S32K3 MCU in a 289 MAPBGA package, the S32K3X8EVB-Q289 offers a multicore mode, Hardware Security Engine (HSE), Over-the-Air (OTA) support, advanced connectivity and low power.
The S32K3X8EVB-Q289 offers a standard-based form factor compatible with the Arduino® pin layout, providing a broad range of expansion board options for quick application prototyping.
Features
Hardware Interface
- Power supply switch
- MCU voltage/current measurement
- 2x user RGB LED
- 2x user push-buttons
- 2x ADC rotatory potentiometer
- 2x touch pad electrode
- USB connector
- SD card slot
- SABRE connector to Ethernet interface
Software Features
- Free-of-charge Real-Time Drivers (RTD) for AUTOSAR® and non-AUTOSAR use and ASIL D compliant
- Configuration tools for both AUTOSAR and non-AUTOSAR users
- Free of charge security firmware: SHE+ compliant NXP supplied, designed for ISO 21434 compliant
- S32 Safety Software Framework (SAF): Six fault detection and reaction libraries
- Free of Charge Safety Peripheral Drivers (SPD)
- Structural Core Self-Test (SCST) Library
- Inter-Platform Communication Framework (IPCF): Middleware for multicore, multi-OS communication in single and multichip systems
- Free of charge Model-Based Design Toolbox (MBDT) for MATLAB®: NXP supplied plug-in for Simulink® environment
Compatibility
- Arduino pin-out compatible with expansion “shield” support
Interfaces
- On-board CAN FD
- On-board LIN
- SAI audio
- USB to UART
Enablement
- Free of charge S32 Design Studio IDE (Eclipse, GCC and debugger) and S32 Config Tool (pins, clocks, peripherals) with third-party compilers and debuggers
