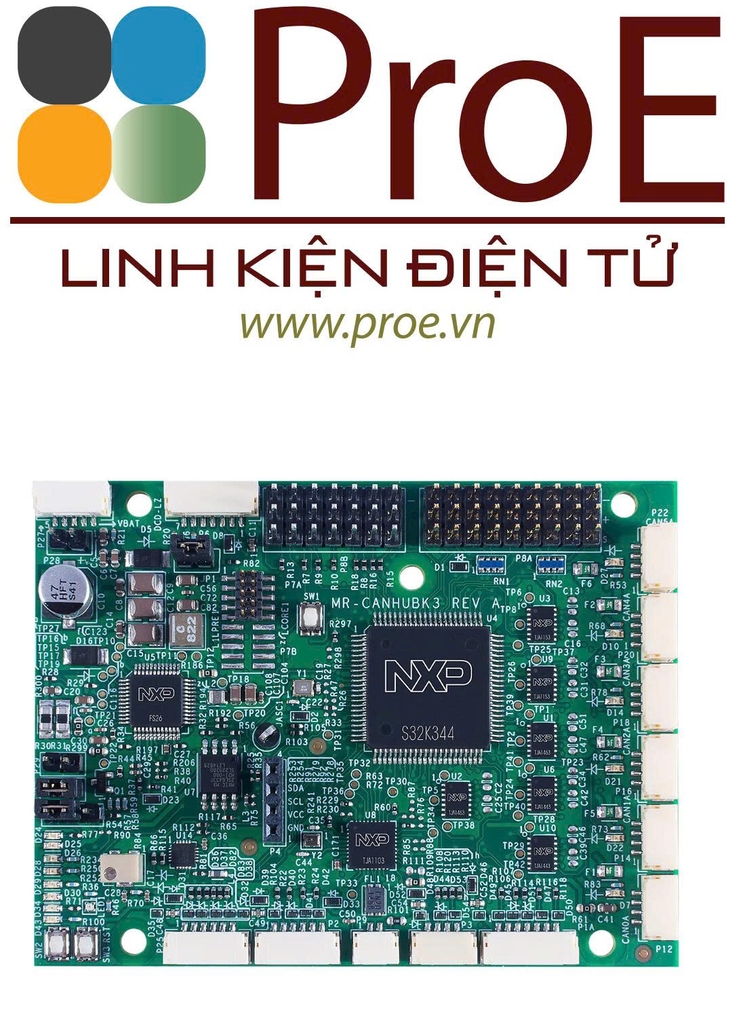

MR-CANHUBK344 EVAL BOARD FOR S32K344

More about MR-CANHUBK344

MR-CANHUBK344 is a general-purpose evaluation board targeted for mobile robotics applications such as autonomous mobile robots (AMR) and automated guided vehicles (AGV); factory automation, industrial vehicles and equipment such as forklifts, trucks and trains; energy management, and motor controller.

MR-CANHUBK344 is based on the Arm^® Cortex^®-M7 S32K3 general-purpose automotive microcontroller (MCU), featuring advanced safety, security and software support.

MR-CANHUBK344 includes 100BASE-T1 Ethernet (TJA1103) and six CAN FD ports (available in the S32K344). The six CAN ports are two each of CAN FD, CAN SIC (signal improvement) and CAN SCP (secure). Tunneling CAN over Ethernet using IEEE 1722 is one use case for this board. The SE050 Secure Element with Near Field Communication (NFC) as well as other general purpose peripheral interfaces are also accessible on DroneCode standard JST-GH connectors.

Features

MR-CANHUBK344 Evaluation Board

Kit Contains:

Kit Contains:

• MR-CANHUBK344 board
• DCD-LZ programming adapter board (giving access to a console UART)
• USB-UART adapter cable (attaches to DCD-LZ)
• Power adapter cables, including JST-JH to common red SY connector, barrel connector, XT-60 Lipo battery connector
• 6x CAN cables
• 6x CAN termination boards
• 1x T1 Ethernet cable (using JST-GH connectors)
• Generic JST-GH cables for UART/SPI/I²C/customizing to your specific needs.
• Small OLED display
• NFC antenna connected to secure element.
