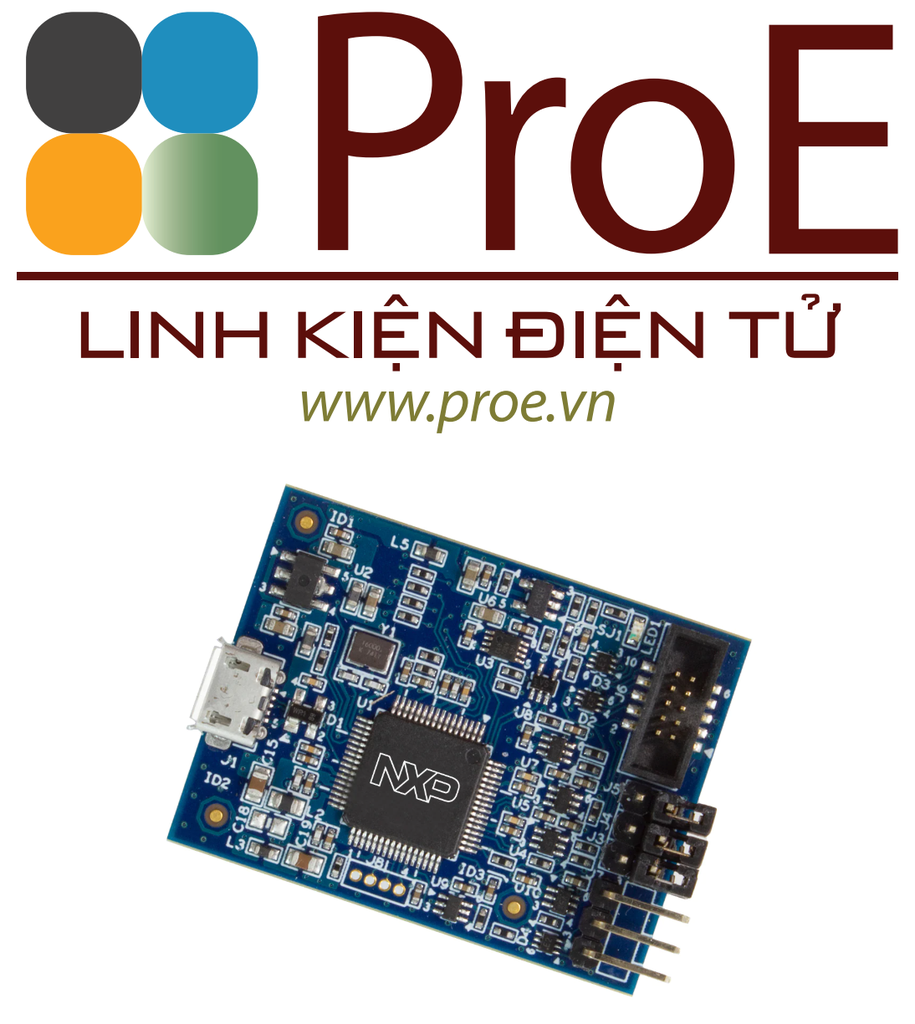

MCU-Link Debug Probe

  • Mã sản phẩm: MCU-LINK
  • Nhà sản xuất: Freescale NXP
  • Website hỗ trợ: https://www.proe.vn
1.450.000₫

Jointly developed by NXP and Embedded Artists, MCU-Link is a powerful and cost effective debug probe that can be used seamlessly with MCUXpresso IDE, and is also compatible with 3rd party IDEs that support CMSIS-DAP protocol. MCU-Link also includes a USB to UART bridge feature (VCOM) that can be used to provide a serial connection between the target MCU and a host computer. MCU-Link is based on the LPC55S69 microcontroller, and features a high-speed USB interface for high performance debug.

MCU-Link is compatible with Windows 10 and 11, MacOS and Linux. A free utility from NXP, also included with the LinkServer package, provides an easy way to install firmware updates.

Features

Microcontroller (MCU)

  • LPC55S69 dual Arm® Cortex®-M33 microcontroller running at up to 150 MHz

Debug

  • High speed USB interface
  • CMSIS-DAP firmware
  • SWD target debug
  • SWO trace/profiling I/O support
  • Supports target debug for systems running from 1.2V to 5V

User Interface

  • Status LED for ease of use
  • USB to serial COM port (VCOM)

Supported IDEs

  • Compatible with MCUXpresso IDE
  • Compatible with tools/IDEs that support CMSIS-DAP protocol
  • Compatible with MCUXpresso for VS Code

System Requirements

  • When using MCUXpresso IDE, MCU-Link firmware version 3.xxx and newer uses WinUSB, and requires MCUXpresso IDE version 11.7 or later

Supported Devices

Processors and Microcontrollers

i.MX RT Crossover MCUs

  • i.MX-RT1024: i.MX RT1024: Crossover MCU with Arm® Cortex®-M7
  • i.MX-RT600: i.MX RT600 Crossover MCU with Arm® Cortex®-M33 and DSP Cores
  • i.MX-RT1020: i.MX RT1020: Crossover MCU with Arm® Cortex®-M7
  • i.MX-RT1050: i.MX RT1050 Crossover MCU with Arm® Cortex®-M7 Core
  • i.MX-RT1015: i.MX RT1015 Crossover MCU with Arm® Cortex®-M7 Core Operating Up to 500 MHz
  • i.MX-RT1160: i.MX RT1160 Crossover MCU Dual-Core Arm® Cortex®-M7 and Cortex-M4
  • i.MX-RT1060: i.MX RT1060: Crossover MCU with Arm® Cortex®-M7
  • i.MX-RT500: i.MX RT500 Crossover MCU with Arm® Cortex®-M33, DSP and GPU Cores
  • i.MX-RT1010: i.MX RT1010 Crossover MCU with Arm® Cortex®-M7 Core Operating Up to 500 MHz
  • i.MX-RT1064: i.MX RT1064: Crossover MCU with Arm® Cortex®-M7
  • i.MX-RT1170: i.MX RT1170: 1 GHz Crossover MCU with Arm® Cortex® Cores
  • i.MX-RT1040: i.MX RT1040 Crossover MCU with Arm® Cortex®-M7 Core Operating Up to 600 MHz and Extended Temperature Range

K6x Ethernet

  • K65_180: Kinetis® K65-180 MHz, Dual High-Speed and Full-speed USBs, 2MB Flash, Anti-Tamper Microcontrollers (MCUs) based on Arm® Cortex®-M4 Core
  • K60_120: Kinetis® K60/61-120–150 MHz, Mixed-Signal Integration and Anti-Tamper Microcontrollers based on Arm® Cortex®-M4 Core
  • K60_100: Kinetis® K60-100 MHz, Mixed-Signal Integration Microcontrollers based on Arm® Cortex®-M4 Core
  • K63_120: Kinetis® K63-120 MHz, 256KB SRAM, Anti-Tamper Microcontrollers (MCUs) based on Arm® Cortex®-M4 Core
  • K64_120: Kinetis® K64-120 MHz, 256 KB SRAM Microcontrollers (MCUs) Based on Arm® Cortex®-M4 Core
  • K66_180: Kinetis® K66-180 MHz, Dual High-Speed and Full-speed USBs, 2MB Flash Microcontrollers (MCUs) based on Arm® Cortex®-M4 Core

K2x / KS2x USB

  • K21_120: Kinetis K21-120 MHZ, Full-Speed USB, Anti-Tamper Microcontrollers based on Arm® Cortex®-M4
  • K20_72: Kinetis® K20-72 MHz, Full-Speed USB, Mixed-Signal Integration Microcontrollers (MCUs) based on Arm® Cortex®-M4 Core
  • K24_120: Kinetis® K24-120 MHz, Full-Speed USB, 256KB SRAM Microcontrollers (MCUs) based on Arm® Cortex®-M4 Core
  • K26_180: Kinetis® K26-180 MHz, Dual High-Speed and Full-Speed USBs, 2MB Flash Microcontrollers (MCUs) based on Arm® Cortex®-M4 Core
  • K22_100: Kinetis® K22-100 MHz, Cost Effective, Full-Speed USB Microcontrollers (MCUs) based on Arm® Cortex®-M4 Core
  • K20_120: Kinetis® K20-120 MHz, Full-Speed USB, Mixed-Signal Integration Microcontrollers (MCUs) based on Arm® Cortex®-M4 Core
  • K20_100: Kinetis® K20-100 MHz, Full-Speed USB, Mixed-Signal Integration Microcontrollers based on Arm® Cortex®-M4 Core
  • K21_50: Kinetis® K21-50 MHz, Full-Speed USB, Anti-Tamper Microcontrollers based on Arm® Cortex®-M4 Core
  • K28_150: Kinetis® K28-150 MHz, 2x USB, Core Voltage Bypass, 2MB Flash, 1MB SRAM MCUs based on Arm® Cortex®-M4
  • K22_50: Kinetis® K22-50 MHz, Cost Effective, Full-Speed USB Microcontrollers (MCUs) based on Arm® Cortex®-M4 Core
  • K22_120: Kinetis® K22-120 MHz, Cost Effective, Full-Speed USB Microcontrollers (MCUs) based on Arm® Cortex®-M4 Core
  • K20_50: Kinetis® K20-50 MHz, Full-Speed USB, Mixed-Signal Integration Microcontrollers based on Arm® Cortex®-M4 Core
  • K27_150: Kinetis® K27-150 MHz, 2x USB, 2MB Flash, 1MB SRAM Microcontrollers (MCUs) based on Arm® Cortex®-M4 Core

KE Series Arm Cortex-M4/M0+

  • KE06: Kinetis® KE06-48 MHz, Mainstream with CAN Microcontrollers (MCUs) based on Arm® Cortex®-M0+ Core
  • KE1xZ: KE1xZ: Arm® Cortex®-M0+ 5V Main Stream MCU with NXP Touch and CAN Control
  • KE02_40: Kinetis® KE02-40 MHz, Entry-Level Microcontrollers (MCUs) based on Arm® Cortex® -M0+ Core
  • KE04: Kinetis® KE04-48 MHz, Mainstream Microcontrollers (MCUs) based on Arm® Cortex®-M0+ Core
  • KE02: Kinetis® KE02-20 MHz, Entry-Level Microcontrollers (MCUs) based on Arm® Cortex®-M0+ Core
  • KE1xF: Kinetis KE1xF-168MHz, Performance with CAN 5V Microcontrollers based on Arm® Cortex®-M4

LPC5500 Arm Cortex-M33

  • LPC55S6x: High Efficiency Arm® Cortex®-M33-Based Microcontroller Family
  • LPC550x: LPC550x/S0x: Baseline Arm® Cortex®-M33-Based Microcontroller Family
  • LPC552x-S2x: LPC552x/S2x: Mainstream Arm® Cortex®-M33-based Microcontroller Family
  • LPC551X-S1X: LPC551x/S1x: Baseline Arm® Cortex®-M33-Based Microcontroller Family
  • LPC553x: LPC553x/S3x: Advanced Analog Arm®Cortex®-M33-Based MCU Family

LPC1100 Arm Cortex-M0+/M0

  • LPC1100: Scalable Entry Level 32-bit Microcontroller (MCU) based on Arm Cortex-M0 Cores
  • LPC11C00: Scalable Entry Level 32-bit Microcontroller (MCU) based on Arm® Cortex®-M0 Cores
  • LPC11E00: Scalable Entry Level 32-bit Microcontroller (MCU) based on Arm® Cortex®-M0+ and Cortex®-M0 Cores
  • LPC11AXX: Scalable, Entry-Level 32-bit Microcontrollers (MCUs)
  • LPC11U00: Scalable Entry Level 32-bit Microcontroller (MCU) based on Arm® Cortex®-M0+ and Cortex®-M0 Cores
  • LPC11XXLV: Scalable, Entry-Level 32-bit Microcontrollers (MCUs)
  • LPC11D00: Scalable Entry Level 32-bit Microcontroller (MCU) based on Arm® Cortex®-M0 Cores

LPC1500 Arm Cortex-M3

  • LPC1517JBD48: Motion Control 32-bit Microcontroller based on Arm® Cortex®-M3
  • LPC1517JBD64: Motion Control 32-bit Microcontroller based on Arm® Cortex®-M3
  • LPC1519JBD64: Motion Control 32-bit Microcontroller based on Arm® Cortex®-M3
  • LPC1549JBD48: Motion Control 32-bit Microcontroller based on Arm® Cortex®-M3
  • LPC1518JBD100: Motion Control 32-bit Microcontroller based on Arm® Cortex®-M3
  • LPC1547JBD48: Motion Control 32-bit Microcontroller based on Arm® Cortex®-M3
  • LPC1518JBD64: Motion Control 32-bit Microcontroller based on Arm® Cortex®-M3
  • LPC1549JBD100: Motion Control 32-bit Microcontroller based on Arm® Cortex®-M3
  • LPC1519JBD100: Motion Control 32-bit Microcontroller based on Arm® Cortex®-M3
  • LPC1548JBD64: Motion Control 32-bit Microcontroller based on Arm® Cortex®-M3
  • LPC1547JBD64: Motion Control 32-bit Microcontroller based on Arm® Cortex®-M3
  • LPC1548JBD100: Motion Control 32-bit Microcontroller based on Arm® Cortex®-M3

LPC800 Arm Cortex-M0+

  • LPC84X: LPC840: 32-Bit Arm® Cortex®-M0+-Based Low-Cost MCU
  • LPC8N04: Low-Cost Microcontrollers (MCUs) based on Arm® Cortex®-M0+ Core
  • LPC82X: LPC820: 32-Bit Arm® Cortex®M0+-Based Low-Cost MCU
  • LPC81X_LPC83X: LPC810 and LPC830: 32-Bit Arm® Cortex®-M0+-Based Low-Cost MCU
  • LPC80X: LPC800: 32-Bit Arm® Cortex®-M0+-Based Low-Cost MCU

K8x Secure

  • K81_150: Kinetis K81-150 MHz HW Cryptographic Co-Processor, Anti-Tamper and QuadSPI Microcontrollers (MCUs) Based on Arm® Cortex®-M4 Core
  • K82_150: Kinetis® K82-150 MHz HW Cryptographic Co-Processor and QuadSPI Microcontrollers (MCUs) Based on Arm® Cortex®-M4 Core
  • K80_150: Kinetis® K80-150 MHz Advanced Security and QuadSPI Microcontrollers (MCUs) Based on Arm® Cortex®-M4 Core

General Purpose MCUs

  • LPC51U68: High-Performance, Power-Efficient and Cost Sensitive Arm® Cortex®-M0+ MCUs

K32 L Series Arm Cortex-M4/M0+

  • K32-L3: NXP’s Energy Efficient Cortex-M4 MCU with Cortex-M0+ and Advanced Security
  • K32-L2: Ultra-Low-Power, Highly Integrated MCU

KL Series Arm Cortex-M0+

  • KL3x: Kinetis® KL3x-48 MHz, Segment LCD Ultra-Low-Power Microcontrollers (MCUs) based on Arm® Cortex®-M0+ Core
  • KL1x: Kinetis® KL1x-48 MHz, Mainstream Small Ultra-Low Power Microcontrollers (MCUs) based on Arm® Cortex®-M0+ Core
  • KL4x: Kinetis® KL4x-48 MHz, USB, Segment LCD, Ultra-Low-Power Microcontrollers (MCUs) based on Arm® Cortex®-M0+ Core
  • KL2x: Kinetis® KL2x-72/96 MHz, USB Ultra-Low-Power Microcontrollers (MCUs) based on Arm® Cortex®-M0+ Core
  • KL8x: Kinetis® KL8x-72/96 MHz Secure Ultra-Low Power Microcontrollers (MCUs) based on Arm® Cortex®-M0+ Core
  • KL0x: Kinetis® KL0x-48 MHz, Entry-Level Ultra-Low Power Microcontrollers (MCUs) based on Arm® Cortex®-M0+ Core

KM Series Arm Cortex-M0+

  • KM1x: 50 MHz, Mainstream Precision Metrology Microcontrollers based on Arm® Cortex®-M0+
  • KM3x: 50–75 MHz Precision Metrology MCUs with Segment LCDs Based on Arm® Cortex®-M0+

K3x Segment LCD

  • K30_72: Kinetis K30-72 MHz, Mixed-Signal Integration Microcontrollers (MCUs) based on Arm® Cortex®-M4 Core
  • K30_100: Kinetis® K30-100 MHz, Mixed-Signal Integration Microcontrollers (MCUs) based on Arm® Cortex®-M4 Core

KV Series Arm Cortex-M4/M0+/M7

  • KV4x: Kinetis KV4x-168 MHz, High Performance Motor / Power Conversion MCUs based on Arm® Cortex®-M4
  • KV5x: Kinetis® KV5x-240 MHz, Motor Control and Power Conversion, Ethernet, MCUs based on Arm® Cortex®-M7
  • KV3x: Kinetis® KV3x-100–120 MHz,  Advanced 3ph FOC / Sensorless Motor Control MCUs based on Arm® Cortex®-M4
  • KV1x: Kinetis® KV1x-75 MHz,  Entry-Level 3ph FOC / Sensorless Motor Control MCUs based on Arm® Cortex®-M0+

K5x Measurement

  • K50_100: Kinetis® K50-100 MHz, USB Microcontrollers (MCUs) based on Arm® Cortex®-M4 Core
  • K51_100: Kinetis® K51-100 MHz, Segment LCD, USB Microcontrollers (MCUs) based on Arm® Cortex®-M4 Core
  • K53_100: Kinetis® K53-100 MHz, USB, Segment LCD, Ethernet Microcontrollers (MCUs) based on Arm® Cortex®-M4 Core
  • K50_72: Kinetis® K50-72 MHz, USB Microcontrollers (MCUs) based on Arm® Cortex®-M4 Core
  • K51_72: Kinetis® K51-72 MHz, Segment LCD, USB Microcontrollers (MCUs) based on Arm® Cortex®-M4 Core

K0x Entry-Level

  • K02_100: Kinetis® K02-100 MHz, Microcontrollers (MCUs) with Optimized Features Based on Arm® Cortex®-M4 Core

K7x Graphic LCD

  • K70_120: Kinetis® K70-120–150 MHz, High-Speed USB, Ethernet, DDR and Anti-Tamper Microcontrollers Based on Arm® Cortex®-M4 Core

LPC54000 Arm Cortex-M4

  • LPC541XX: Low-Power Microcontrollers (MCUs) Based on Arm® Cortex®-M4 Cores With Optional Cortex®-M0+ Co-processor
  • LPC546XX: Power-Efficient Microcontrollers (MCUs) With Advanced Peripherals Based on Arm® Cortex®-M4 Core
  • LPC540XX: Power-Efficient Microcontrollers (MCUs) with Advanced Peripherals Based on Arm® Cortex®-M4 Core

MCX N Series Microcontrollers

  • MCX-N94-N54-N53-N52-N24: MCX N94, N54, N53, N52 and N24 with Highly Integrated Low-power Dual Core Arm® Cortex®-M33 MCUs, with on-chip Accelerators and Advanced Security
  • MCX-N23X: MCX N23x Highly Integrated MCUs with On-Chip Accelerators, Intelligent Peripherals and Advanced Security

MCX A Series Microcontrollers

  • MCX-A13X-A14X-A15X: MCX A13, 14, 15 Essential MCUs with Arm® Cortex® M33, Low Power and Intelligent Peripherals
  • MCX-A17: MCX A17: Essential Arm® Cortex® M33 MCU with 180 MHz and Rich Serial Peripherals
  • MCX-A34: MCX A34: Mixed-Signal MCUs for Motor Control and High Performance Analog Peripherals

K1x Mainstream

  • K10_50: Kinetis K10-50 MHz, Mixed-Signal Integration Microcontrollers (MCUs) based on Arm® Cortex®-M4 Core
  • K10_120: Kinetis® K10-120 MHz, Mixed-Signal Integration Microcontrollers (MCUs) based on Arm® Cortex®-M4 Core
  • K10_72: Kinetis® K10-72 MHz, Mixed-Signal Integration Microcontrollers (MCUs) based on Arm® Cortex®-M4 Core
  • K12_50: Kinetis® K12-50 MHz, Microcontrollers (MCUs) with Optimized Features based on Arm® Cortex®-M4 Core
  • K10_100: Kinetis® K10-100 MHz, Mixed-Signal Integration Microcontrollers (MCUs) based on Arm® Cortex®-M4 Core
  • K11_50: Kinetis® K11-50 MHz, Anti-Tamper Microcontrollers (MCUs) based on Arm® Cortex®-M4 Core

K4x USB and Segment LCD

  • K40_100: Kinetis® K40-100 MHz, Mixed-Signal Integration Microcontrollers (MCUs) based on Arm® Cortex®-M4 Core
  • K40_72: Kinetis® K40-72 MHz, Mixed-Signal Integration Microcontrollers based on Arm® Cortex®-M4 Core

LPC1700 Arm Cortex-M3

  • LPC1788FBD144: Scalable Mainstream 32-bit Microcontroller (MCU) based on Arm® Cortex®-M3 Core
  • LPC1788FBD208: Scalable Mainstream 32-bit Microcontroller (MCU) based on Arm® Cortex®-M3 Core
  • LPC1778FET208: Scalable Mainstream 32-bit Microcontroller (MCU) based on Arm® Cortex®-M3 Core
  • LPC1765FBD100: 256 KB Flash, 64 KB SRAM, USB, LQFP100 Package
  • LPC1751FBD80: Scalable Mainstream 32-bit Microcontroller (MCU) based on Arm® Cortex®-M3 Core
  • LPC1769FBD100: 512 KB Flash, 64 KB SRAM, Ethernet, USB, LQFP100 Package
  • LPC1764FBD100: 128 KB Flash, 32 KB SRAM, Ethernet, USB, LQFP100 Package
  • LPC1788FET180: Scalable Mainstream 32-bit Microcontroller (MCU) based on Arm® Cortex®-M3 Core
  • LPC1778FBD208: Scalable Mainstream 32-bit Microcontroller (MCU) based on Arm® Cortex®-M3 Core
  • LPC1785FBD208: Scalable Mainstream 32-bit Microcontroller (MCU) based on Arm® Cortex®-M3 Core
  • LPC1759FBD80: Scalable Mainstream 32-bit Microcontroller (MCU) based on Arm® Cortex®-M3 Core
  • LPC1758FBD80: Scalable Mainstream 32-bit Microcontroller (MCU) based on Arm® Cortex®-M3 Core
  • LPC1787FBD208: 512 KB Flash, 96 KB SRAM, USB, LCD, LQFP208 Package
  • LPC1788FET208: Scalable Mainstream 32-bit Microcontroller (MCU) based on Arm® Cortex®-M3 Core
  • LPC1768FBD100: 512 KB Flash, 64 KB SRAM, Ethernet, USB, LQFP100 Package
  • LPC1756FBD80: Scalable Mainstream 32-bit Microcontroller (MCU) based on Arm® Cortex®-M3 Core
  • LPC1776FET180: Scalable Mainstream 32-bit Microcontroller (MCU) based on Arm® Cortex®-M3 Core
  • LPC1777FBD208: Scalable Mainstream 32-bit Microcontroller (MCU) based on Arm® Cortex®-M3 Core
  • LPC1774FBD144: Scalable Mainstream 32-bit Microcontroller (MCU) based on Arm® Cortex®-M3 Core
  • LPC1778FBD144: Scalable Mainstream 32-bit Microcontroller (MCU) based on Arm® Cortex®-M3 Core
  • LPC1768UK: Scalable Mainstream 32-bit Microcontroller based on Arm® Cortex®-M3
  • LPC1763FBD100: 256 KB Flash, 64 KB SRAM, No CAN LQFP100 Package
  • LPC1766FBD100: 256 KB Flash, 64 KB SRAM, Ethernet, USB, LQFP100 Package
  • LPC1786FBD208: Scalable Mainstream 32-bit Microcontroller (MCU) based on Arm® Cortex®-M3 Core
  • LPC1778FET180: Scalable Mainstream 32-bit Microcontroller (MCU) based on Arm® Cortex®-M3 Core
  • LPC1768FET100: 512 KB Flash, 64 KB SRAM, Ethernet, USB, TFBGA100 Package
  • LPC1752FBD80: Scalable Mainstream 32-bit Microcontroller (MCU) based on Arm® Cortex®-M3 Core
  • LPC1767FBD100: 512 KB Flash, 64 KB SRAM, Ethernet, No CAN LQFP100 Package
  • LPC1754FBD80: Scalable Mainstream 32-Bit MCU Based on ArmArm® Cortex®-M3 Core
  • LPC1776FBD208: Scalable Mainstream 32-bit Microcontroller (MCU) based on Arm® Cortex®-M3 Core
  • LPC1765FET100: 256 KB Flash, 64 KB SRAM, USB, TFBGA100 Package
  • LPC1774FBD208: Scalable Mainstream 32-bit Microcontroller (MCU) based on Arm® Cortex®-M3 Core

LPC4000 Arm Cortex-M4

  • LPC4088FBD144: Mid-range 32-bit Microcontroller (MCU) based on Arm® Cortex®-M4 Core
  • LPC4076FET180: Mid-range 32-bit Microcontroller (MCU) based on Arm® Cortex®-M4 Core
  • LPC4088FBD208: Mid-range 32-bit Microcontroller (MCU) based on Arm® Cortex®-M4 Core
  • LPC4078FBD80: 32-Bit Arm® Cortex®-M4 MCU; Up to 512 KB Flash, 96 KB SRAM; USB Device/Host/OTG; Ethernet; EMC; SPIFI
  • LPC4074FBD144: LPC4074FBD144
  • LPC4078FET180: 32-Bit Arm® Cortex®-M4 MCU; Up to 512 KB Flash, 96 KB SRAM; USB Device/Host/OTG; Ethernet; EMC; SPIFI
  • LPC4078FBD208: 32-Bit Arm® Cortex®-M4 MCU; Up to 512 KB Flash, 96 KB SRAM; USB Device/Host/OTG; Ethernet; EMC; SPIFI
  • LPC4078FBD144: 32-Bit Arm® Cortex®-M4 MCU; Up to 512 KB Flash, 96 KB SRAM; USB Device/Host/OTG; Ethernet; EMC; SPIFI
  • LPC4088FET180: Mid-range 32-bit Microcontroller (MCU) based on Arm® Cortex®-M4 Core
  • LPC4076FBD144: Mid-range 32-bit Microcontroller (MCU) based on Arm® Cortex®-M4 Core
  • LPC4078FBD100: 32-Bit Arm® Cortex®-M4 MCU; Up to 512 KB Flash, 96 KB SRAM; USB Device/Host/OTG; Ethernet; EMC; SPIFI
  • LPC4088FET208: Mid-range 32-bit Microcontroller (MCU) based on Arm® Cortex®-M4 Core
  • LPC4078FET208: 32-Bit Arm® Cortex®-M4 MCU; Up to 512 KB Flash, 96 KB SRAM; USB Device/Host/OTG; Ethernet; EMC; SPIFI
  • LPC4072FET80: Mid-range 32-bit Microcontroller (MCU) based on Arm® Cortex®-M4 Core

LPC1800 Arm Cortex-M3

  • LPC1820FBD144: High Performance 32-bit Microcontroller based on Arm® Cortex®-M3
  • LPC1833JBD144: High Performance 32-bit Microcontroller based on Arm® Cortex®-M3
  • LPC1853FET256: High Performance 32-bit Microcontroller (MCU) based on Arm® Cortex®-M3 Core

MCX W Series Microcontrollers

  • MCX-W71: MCX W71 Secure and Ultra-Low-Power MCUs for Matter, Thread, Zigbee and Bluetooth LE
  • MCX-W72: MCX W72 Secure and Ultra-Low-Power MCUs for Bluetooth LE, Channel Sounding, Matter, Thread, Zigbee

MCX E Series Microcontrollers

  • MCX-E24: MCX E24: Reliability and Safety Focused MCU

MCX C Series Microcontrollers

  • MCX-C04x: MCX C04x MCUs with Arm® Cortex® M0+, Entry Level MCUs with Classical Peripherals
  • MCX-C14x-24x-44x: MCX C14x/24x/44x MCUs with Arm® Cortex® M0+, Entry level MCUs with USB, Segment LCD and Classical Peripherals

Wireless Connectivity

Bluetooth Low Energy

  • KW39-38-37: KW39/38/37: 32-Bit Bluetooth 5.0 Long-Range MCUs with CAN FD and LIN Bus Options, Arm® Cortex®-M0+ Core
  • KW45: KW45: 32-Bit Bluetooth® 6.0 Long-Range MCUs with CAN FD and LIN Bus Options, Arm® Cortex®-M33 Core

Wi-Fi® + Bluetooth® + 802.15.4

  • RW610: Wireless MCU with Integrated Radio: 1x1 Wi-Fi® 6 + Bluetooth® Low Energy 5.4 Radios
  • RW612: Wireless MCU with Integrated Tri-radio: 1x1 Wi-Fi® 6 + Bluetooth® Low Energy 5.4 / 802.15.4
Xem thêm Thu gọn

Điện tử ProE cung cấp linh kiện điện tử, thiết bị điện tử , linh kiện IoT chính hãng. ProE cung cấp dịch vụ đặt hàng linh kiện điện tử, thiết bị điện tử chính hãng theo yêu cầu cụ thể của khách hàng. Liên hệ : contact@proe.vn, SĐT: 0938946849
Website: www.proe.vn
Diễn đàn: https://www.facebook.com/groups/278263459284765/
Youtube Chanel: ProE Youtube
Facebook: ProE Facebook

Sản phẩm vừa xem

Sản phẩm cùng loại

MR-CANHUBK344 EVAL BOARD FOR S32K344

MR-CANHUBK344 EVAL BOARD FOR S32K344

9.800.000₫
FRDM-IMX95 FRDM i.MX 95 Development Board

FRDM-IMX95 FRDM i.MX 95 Development Board

7.800.000₫
MIMXRT700-EVK i.MX RT700 Evaluation Kit

MIMXRT700-EVK i.MX RT700 Evaluation Kit

11.000.000₫
S32K344 BLDC/PMSM Development Kit

S32K344 BLDC/PMSM Development Kit

49.000.000₫
IMX-MIPI-HDMI

IMX-MIPI-HDMI

9.900.000₫
S32K344-WB Evaluation Board for Automotive General Purpose

S32K344-WB Evaluation Board for Automotive General Purpose

38.000.000₫
FRDM Development Board for i.MX RT1186

FRDM Development Board for i.MX RT1186

3.900.000₫
• Dịch vụ nổi bật • Giới thiệu • Sản phẩm • Giải pháp • Hỗ trợ
Thêm vào giỏ hàng thành công
popup

Số lượng:

Tổng tiền:

Giỏ hàng( Sản phẩm)

Thành tiền:
0938946849
