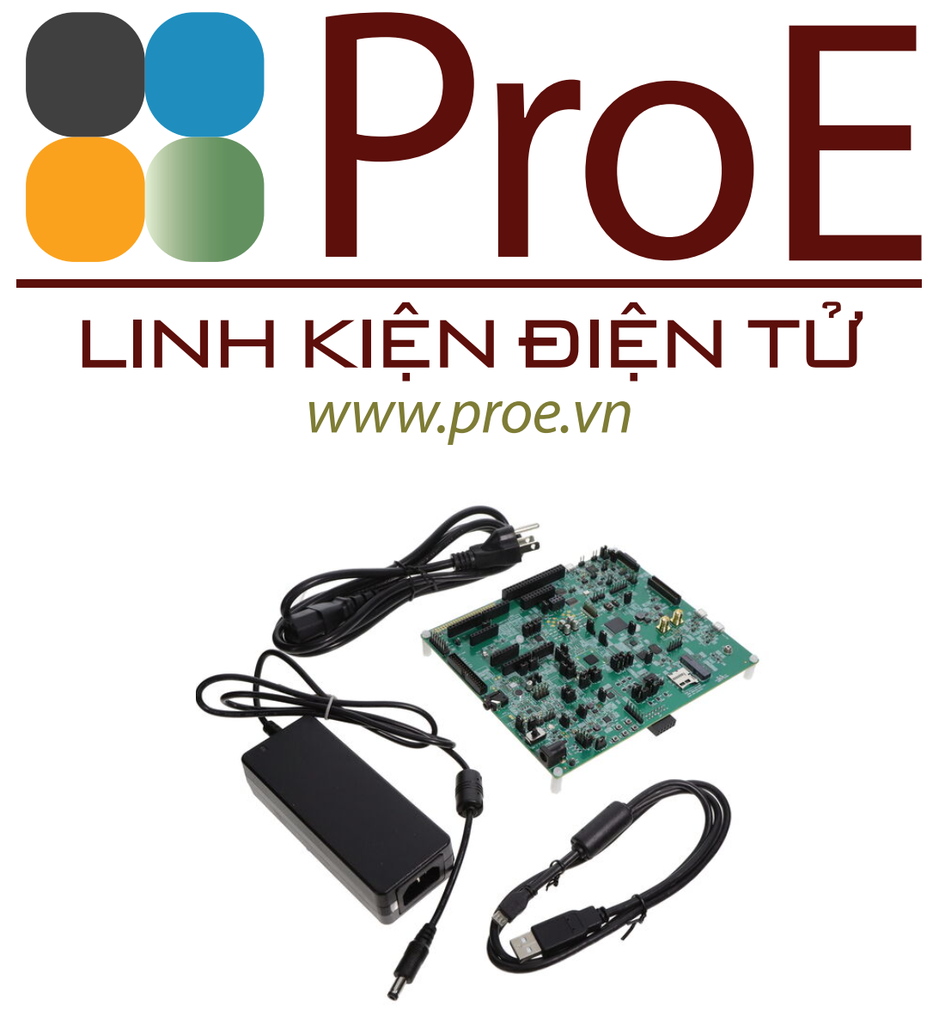

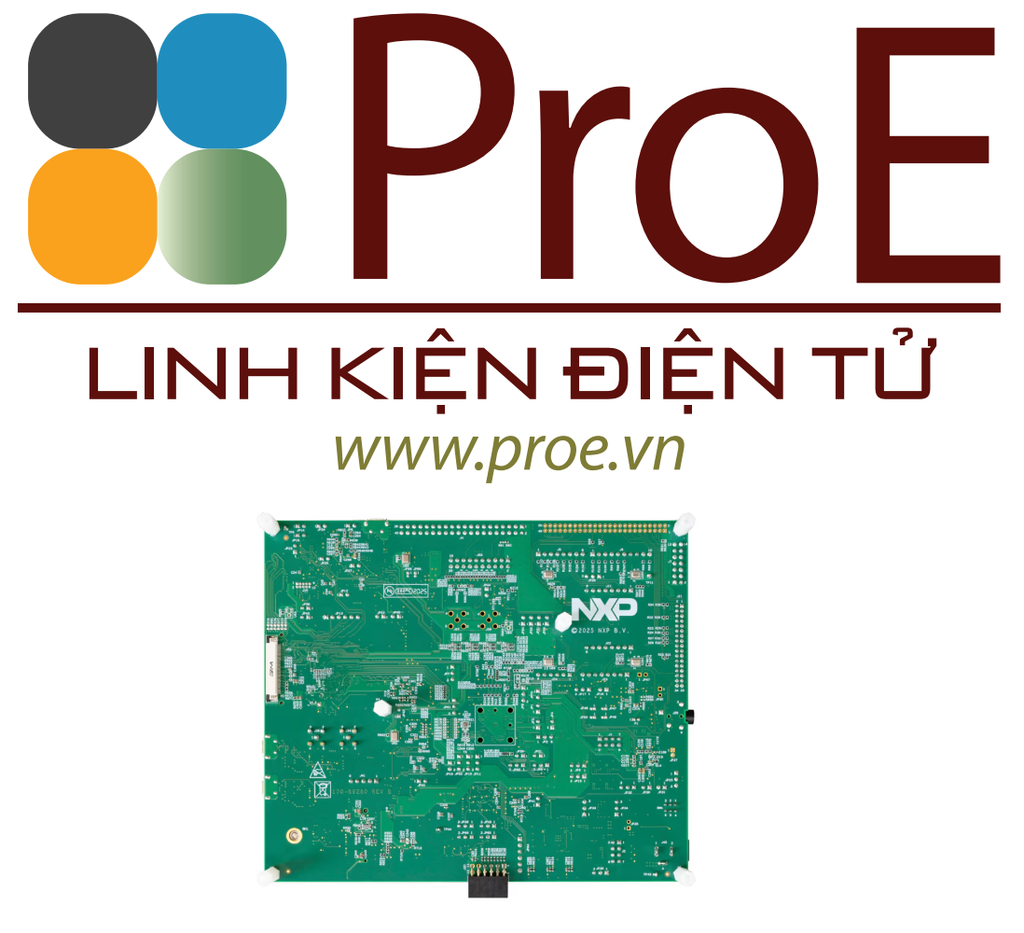

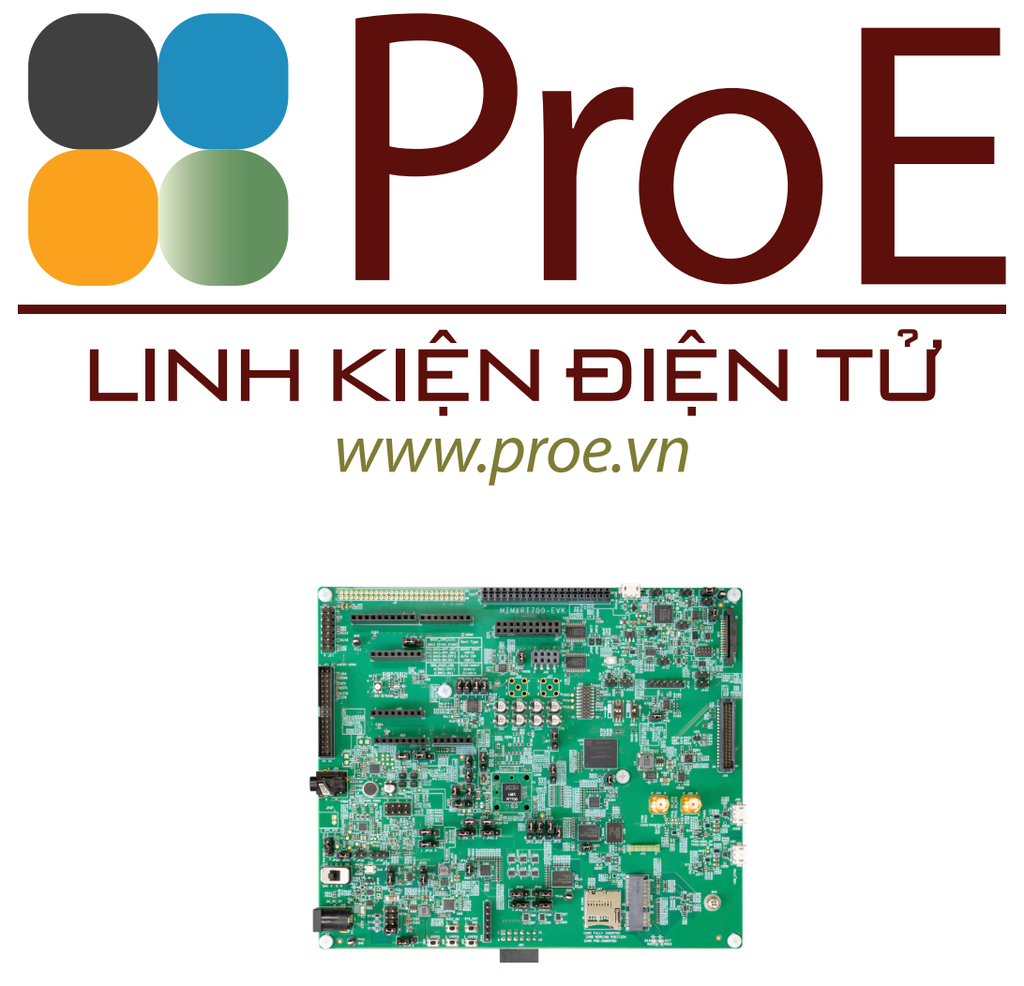

MIMXRT700-EVK i.MX RT700 Evaluation Kit

The MIMXRT700-EVK evaluation board provides a powerful, extendable platform for evaluation and prototyping with the i.MX RT700 series crossover microcontroller units (MCUs) featuring dual Arm® Cortex®-M33 cores, Cadence digital signal processor (DSP) and graphic processing unit cores using the MCUXpresso suite of software and tools. Arduino UNO, M.2, PMod(R), microphone and display connectors enable flexible expansion options, with off-the-shelf LCD panels for wearables and other applications requiring high high-performance human-machine interface (HMI). The boards feature a high-speed USB debug probe base with easy firmware update options to support Cortex microcontroller software interface-standard digital signal Processing (CMSIS-DSP) or a special version of J-link LITE from SEGGER.

Supported Devices

Processors and Microcontrollers

i.MX RT Crossover MCUs

• i.MX-RT700: i.MX RT700 Crossover MCU with Arm® Cortex®-M33, NPU, DSP and GPU Cores

Features

Processor

• Compute Arm Cortex-M33 running up to 325 MHz
• Sense Arm Cortex-M33 running up to 250 MHz
• Compute Cadence HiFi4 DSP running up to 325 MHz
• Sense Cadence HiFi1 DSP running up to 250 MHz
• Internal 7.5 MB of static random access memory (SRAM)

Board Memory

• Macronix Octal serial peripheral interface (SPI) Flash (64 MB) / Winbond quad serial peripheral interface (QSPI) Flash (64 MB)
• Macronix Octal SPI Flash (64 MB) / Winbond HyperRAM 16-bit (512 MB)
• Winbond HyperRAM 16-bit (512 MB)
• SanDisk embedded MultiMediaCard (eMMC) (16 GB)

Debug Capabilities

• 10-pin and 20-pin serial wire debug (SWD) connectors supporting external debug/trace probes
• On-board debug probe with virtual COM (VCOM) and CMSIS-DAP or J-link firmware options

Expansion Connectors

• Arduino expansion
• peripheral module (PMOD) expansion
• Mikroe click expansion
• Expansion connector for 8-channel microphone board
• improved inter-integrated circuit (I3C) header
• Flexcomm header
• FlexIO display header, which enables you to connect an optional thin-film transistor (TFT) Proto 5” CAPACITIVE from MikroElektronika (5” display board with capacitive touch)
• FlexIO camera header, which enables you to connect and optional OV7675 camera
• Mobile industry processor interface (MIPI) display connectors, which enables you to connect to optional MIPI displays available from NXP

User Interface

• Reset and user buttons for easy testing of software functionality
• User LEDs
• Boot switch

Connectivity

• High-speed eUSB native connectors
• High-speed USB port with micro-A/B connector for the host or device functionality
• SD card slot

Audio

• Audio codec with stereo line out/headphone jack and mic in
• Digital microphones (DMICs)
• Analog mics
• DMIC expansion connector supporting up to eight DMICs
• External audio card connector
