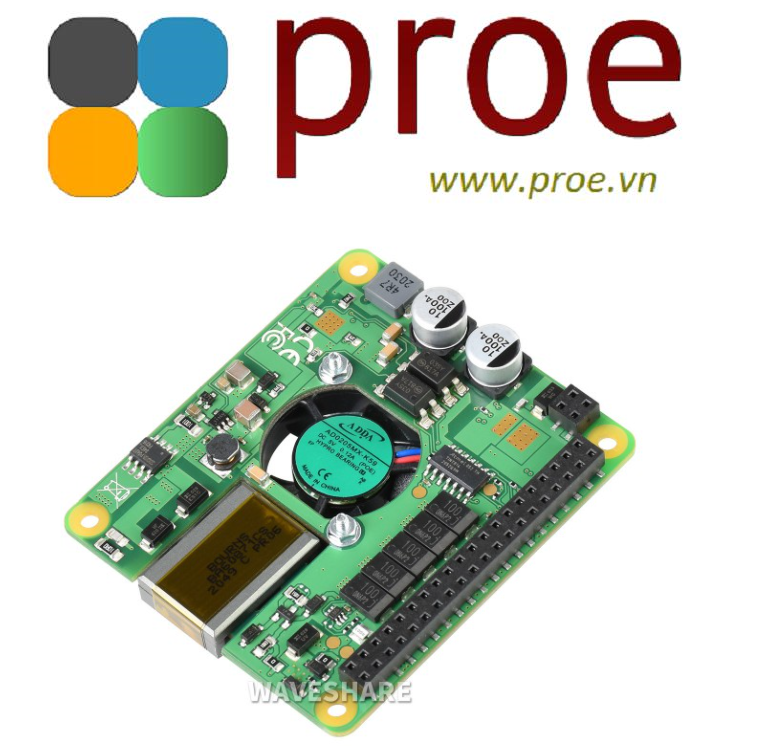

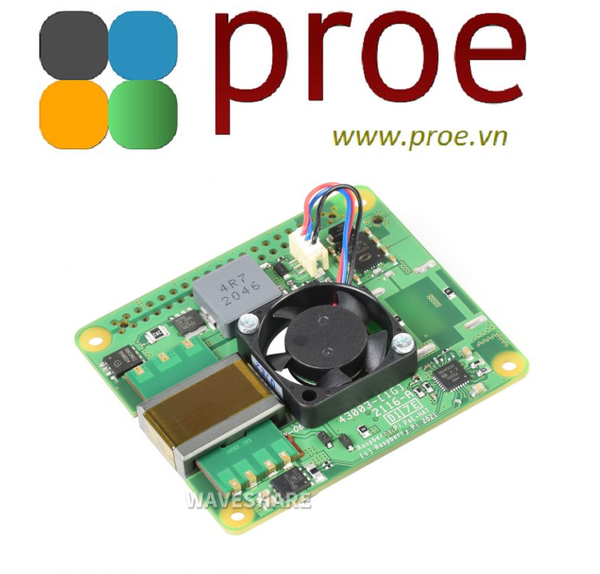

Raspberry Pi PoE+ HAT, Compatible With Raspberry Pi 3B+/4B, 802.3af/at Power-Sourcing Equipment Required
Official Raspberry Pi PoE+ HAT
Compatible with Raspberry Pi 3B+/4B, 802.3af/at-compliant
Product Overview
The Raspberry Pi PoE+ HAT is a Power Over Ethernet (PoE+) accessory for the Raspberry Pi 3B+/4B. Compared to its predecessor Raspberry Pi PoE+ HAT, it features better cooling effect, implementing the 802.3af/at standard with 5V DC/4A larger power output, providing enough power for both Raspberry Pi 3B+/4B at max load and other peripherals.
By using this small HAT and some proper 802.3af/at-compliant power sourcing equipments, it is possible to provide both network connection and power supply for your Raspberry Pi in only one Ethernet cable.
Comparison
POE HAT | POE+ HAT | |
---|---|---|
PoE standard | 802.3af | 802.3af/at |
Input voltage | 37-57 V DC, Class 2 device | 37-57 V DC, Class 4 device |
Output voltage/current | 5V DC/2A | 5V DC/4A |
Current sense | No | Yes |
Transformer design | Wire-wound | Planar |
Fan | Controllable brushless cooling fan | Controllable brushless cooling fan delivering 2.2 CFM for processor cooling |
Fan size | 25 x 25mm | |
Feature | Fully isolated switched-mode power supply | |
Compatible with | Raspberry Pi 3B+/4B |
For Use With Raspberry Pi 3B+/4B
Power Over Ethernet
Providing Both Network Connection And Power Supply For Your Raspberry Pi In One Cable
802.3af/At-Compliant, 5V DC/4A Larger Power Output
Raspberry Pi or PoE equipment is NOT included.
Larger Air Flow, Better Cooling
25 X 25mm Brushless Cooling Fan With Fan Control, Delivering 2.2CFM Air Flow For Cooling
Outline Dimensions
