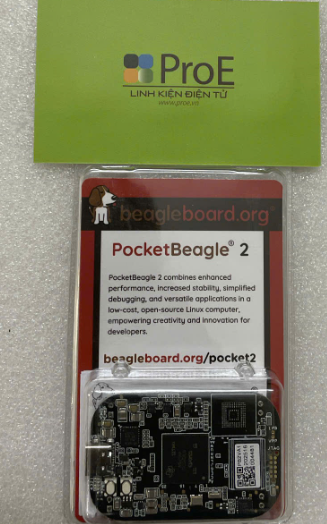

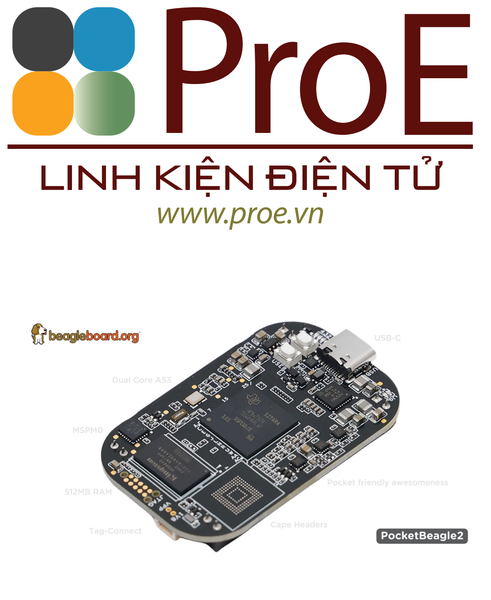

PocketBeagle 2

Mã sản phẩm: PocketBeagle 2
Nhà sản xuất: BeagleBone
Website hỗ trợ: https://www.proe.vn

1.300.000₫

Texas Instruments AM6254 SoC

Multicore 64-bit Arm Cortex-A53 microprocessor subsystem at up to 1.4 GHz
- Quad Cortex-A53 cluster with 512KB L2
  shared cache with SECDED ECC
- Each A53 Core has 32KB L1 DCache with
  SECDED ECC and 32KB L1 ICache with Parity
  protection
Single-core Arm® Cortex®-M4F MCU at up to 400
MHz
- 256KB SRAM with SECDED ECC
Dual-core Programmable Real-Time Unit
Subystem (PRUSS) running up to 333 MHz
Dedicated Device/Power Manager
Secure boot supported
Trusted Execution Environment (TEE) supported

Texas Instruments MSPM0L1105 Arm Cortex-M0+ MCU

32-MHz Arm® Cortex®-M0+ MCU
32-KB flash
4-KB SRAM
12-bit ADC

Processor: Texas Instruments AM6254 SoC
SDRAM Memory: 512MB LPDDR4 3200MHz
PMIC: TPS6521903
Debug Support:
- 3 pin 3.3V JST-SH 1.00mm UART debug port (RPI debug probe compatible)
- 10-pin JTAG TAG-CONNECT footprint
Power Source: USB C or Cape Header VIN (5V @ 1A)
Expansion: 72 expansion pin headers with power and battery I/Os, high-speed USB, 8 analog inputs, 52 digital I/Os, and numerous digital interface peripherals
LED Indicators: 1x Power, 1x Battery charging, and 4x User Controllable LEDs
SD/MMC Connector: microSD (1.8/3.3V)
User Input:
- Power Button
- User/Boot Button
PCB: 55 x 35 mm
Weight: 12.7gm
