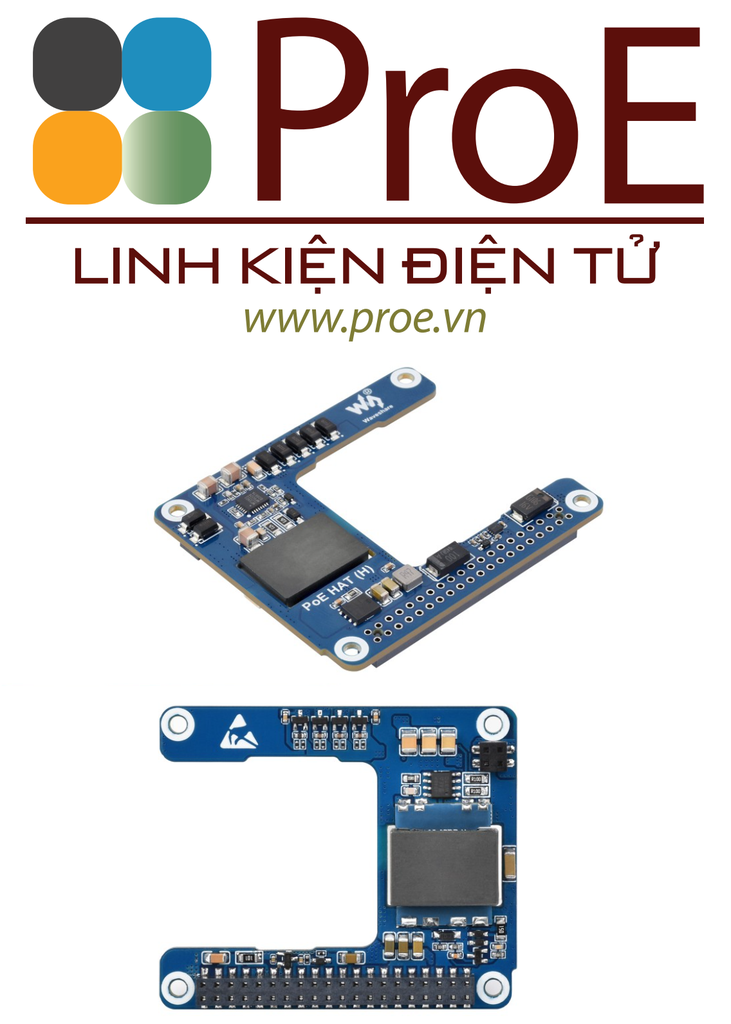

Power Over Ethernet HAT (H)

Power Over Ethernet HAT (H) For Raspberry Pi 5 / CM 5, 5V 5A Output, stable performance, Supports 802.3af/at network standard, Isolated Switched-mode Power Supply, Raspberry Pi 5 PoE HAT, Optional for Raspberry Pi 5 Official Case

PoE HAT (H) for Raspberry Pi 5

Suitable For Raspberry Pi 5 / CM 5, Supports IEEE 802.3af/at Network Standard

5V 5A Output, Compatible With Raspberry Pi 5 Official Case

Version Options

PoE HAT (H)
the PoE HAT only

PoE HAT (H) Acce A
PoE HAT (H) + Raspberry Pi 5 Official Case (with cooling fan)

Features at a glance

The PoE HAT (H) is an IEEE 802.3af/at-compliant PoE+ (Power Over Ethernet) HAT for Raspberry Pi 5 / CM 5. By using with a PoE router or switch that supports the IEEE 802.3af/at network standard, it is possible to provide both network connection and power supply for your Raspberry Pi in only one Ethernet cable.

• Standard Raspberry Pi 40PIN GPIO header
• PoE / PoE+ capability，IEEE 802.3af/at-compliant
• Onboard original IC solution for more stable PoE power performance
• Adopts isolated switched-mode power supply (SMPS)
• Compact and easy to assemble

Specifications

Suitable for Raspberry Pi 5 / CM 5

Standard Raspberry Pi 40PIN GPIO header, easy to assemble into the official case

PoE / PoE+ support

providing both network connection and power supply for the Raspberry Pi 5 / CM 5 in one cable

* for reference only, the Raspberry Pi 5 and 120W switch are NOT included.

Installation with Raspberry Pi 5 Official Case

Compatible With Raspberry Pi 5 Official Active Cooler

* for reference only, the Raspberry Pi 5 and active cooler are NOT included.

Application Example

With this product, you can use an Ethernet cable with PoE function to power the Raspberry Pi 5 / CM 5 directly

* for reference only, please refer to the Package Content for detailed part list

Outline dimensions

Resources & Services

WIKI: www.waveshare.com/wiki/PoE_HAT_(H)
