VisionFive2 Lite RISC-V Single Board Computer, JH-7110S Processor With Integrated 3D GPU, Based On Linux

VisionFive2 Lite RISC-V Single Board Computer, JH-7110S Processor with Integrated 3D GPU, based on Linux

VisionFive2 Lite RISC-V Single Board Computer

Integrated 3D GPU | Based on Linux | Mini-Computer

Onboard RV64GC ISA Quad-core 64-bit SoC, operating frequency up to 1.25GHz

Features at a glance

VisionFive 2 Lite is a budget-friendly and feature-rich RISC-V single board computer tailored for education, AIoT, smart home, and IIoT applications. Powered by StarFive JH-7110S quad-core processor, it features robust image and video processing capabilities along with versatile expansion interfaces including PCIe, HDMI, USB 3.0, and Gigabit Ethernet. With full support for mainstream Linux distributions and open-source toolchains, it enables fast development and smooth integration. Whether for learning, prototyping, or embedded deployment, VisionFive 2 Lite delivers an exceptional balance of performance and affordability.

• Multiple memory and storage options: Available with 2GB / 4GB / 8GB LPDDR4 RAM and only the 8GB LPDDR4 RAM version offers optional onboard 64GB eMMC storage
• Compact size: Measuring just 56 × 85 (mm), its small form factor makes it easy to integrate into tight spaces
• Integrated connectivity: Includes a Wi-Fi 6 + BT5.4 dual-band wireless module
• Expandable storage: An onboard M.2 M-Key slot supports SATA3 or PCIe 2.0 NVMe Solid State Drives, meeting high-speed read/write and mass storage requirements
• Rich I/O interfaces: Features a wide range of popular peripheral interfaces, including MIPI DSI, MIPI CSI, USB 3.0, USB 2.0, HDMI 2.0, and GMAC, for controlling and expanding external devices

Specifications

Parameters Comparison

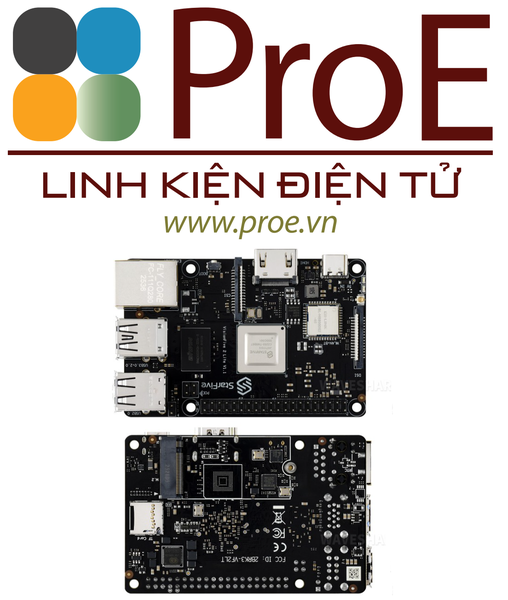

Onboard Resources

1. StarFive JH-7110S RISC-V quad-core processor
   Supporting RV64GC ISA
2. PoE header
3. Fastboot pins
4. 2 × USB 2.0 ports
5. 2GB / 4GB / 8GB LPDDR4 SDRAM
6. 1 × USB 3.0 port + 1 × USB 2.0 port
7. 1 × Gigabit Ethernet port (RJ45)
8. Recovery button
9. 2-lane MIPI-CSI camera interface
10. HDMI 2.0 port
11. USB Type-C port
12. 2.4GHz / 5.8GHz antenna connector

13. 2-lane MIPI-DSI display interface
14. Wi-Fi / BT module
15. 40PIN GPIO header
16. QSPI flash
17. EEPROM
18. Power Management IC (PMIC)
19. TF card slot
    for version without eMMC only
20. M.2 M key slot
21. Onboard 64GB eMMC
    for eMMC version only
22. USB2.0 Hub FE1.1S
23. Gigabit Ethernet PHY IC

Application Scenarios

• Education & Development
  Lightweight open-source RISC-V educational platform supporting toolchains like Python/OpenCV, enabling efficient development of AI vision algorithms and robotic control applications, helping students learn open-source ISA and embedded development.


• IIoT / Industrial Control Systems
  Edge Connectivity: Features Gigabit Ethernet, Wi-Fi 6, and PCIe-based M.2 expansion for industrial sensor/device integration
  Control Systems: Supports OpenPLC with IgH EtherCAT Master Stack.


• Smart Home & Security Solutions
  Peripheral Control: Directly drives home automation devices (sensors/access systems) via GPIO/USB interfaces
  AIoT: Implements person detection using USB-connected Hailo-8 AI accelerator modules, with alerts pushed to Home Assistant via RTSP streams.


• Lightweight Home Server
  Native support for OpenWrt (router OS)/CasaOS (container management)/Buildroot (embedded Linux) frameworks, with 24/7 low-power operation.

Real-Time Operating System

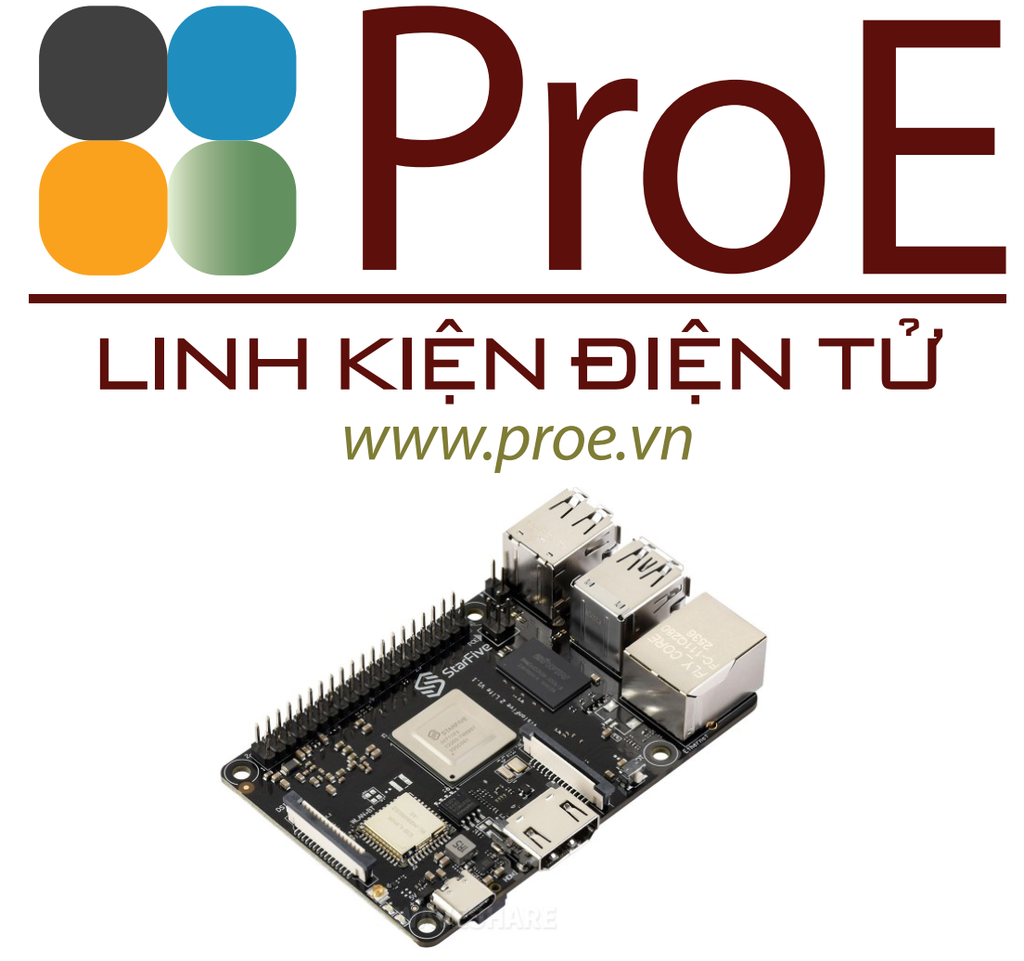

Product Show

* for reference only, please refer to the Package Content for the detailed part list

Dimensions
