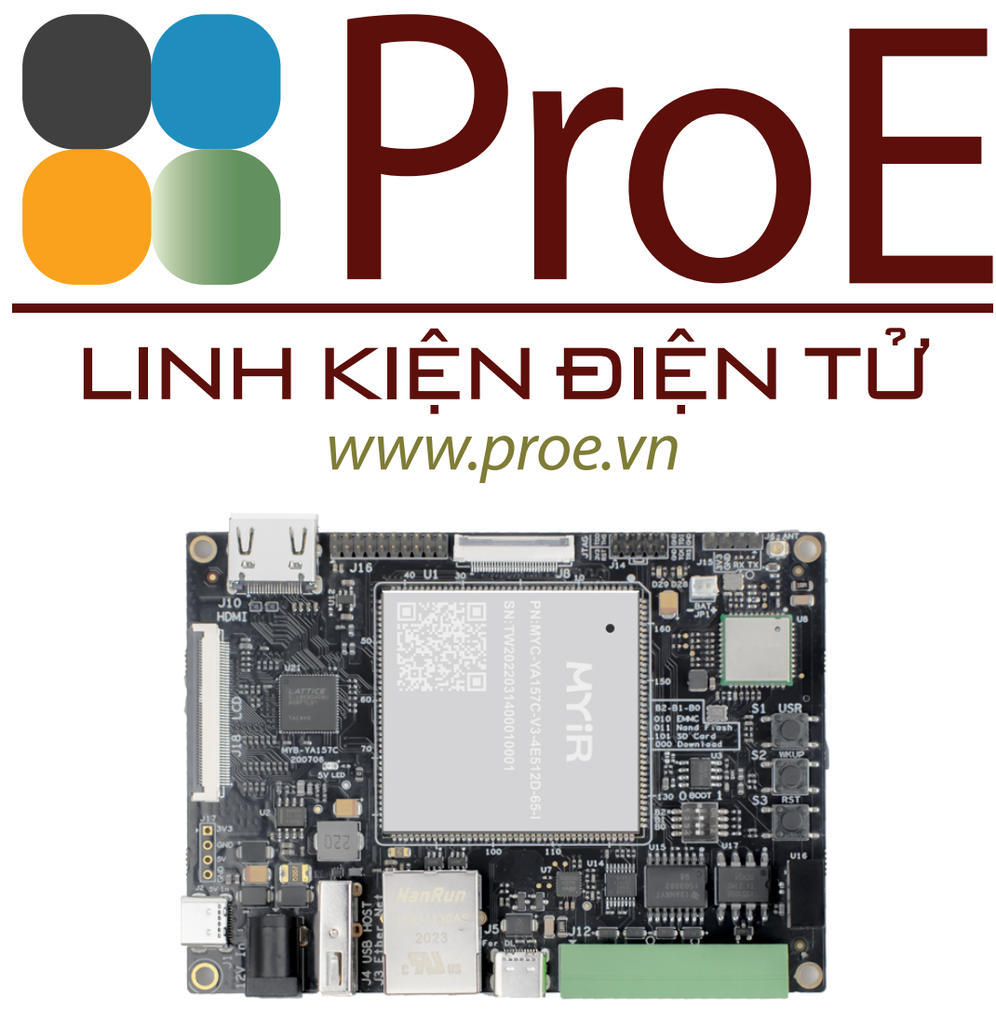

MYD-YA157C-V3 Development Board

• MYC-YA157C-V3 SOM as Controller Board
  - ST STM32MP1 MPU based on 650MHz Dual Arm Cortex-A7 and 209MHz Cortex-M4 Cores
  - 512MB DDR3, 4GB eMMC Flash
  - RS232, RS485, USB Type-C DRP, USB2.0 HOST, Gigabit Ethernet, CAN, WiFi/BT, Micro SD Card
  - Supports RGB888 based LCD/HDMI and MIPI-DSI Display
  - Supports Running Linux OS

The MYD-YA157C-V3 development board consists of a compact SOM MYC-YA157C-V3 and a base board to provide a complete evaluation platform for ST STM32MP1 Processors which features dual-core Arm Cortex-A7 operating at up to 650 MHz and an embedded Cortex-M4 core operating at up to 209 MHz. Typical applications are industrial control, consumer electronics, smart home, medical and more other energy-efficient applications which require rich performance and low power.

The MYD-YA157C-V3 has a base board which installed MYC-YA157C-V3 through 1.0mm pitch 164-pin stamp-hole (Castellated-Hole) interface. The MYC-YA157C-V3 is a highly-integrated SoM which combines the STM32MP157 processor (STM32MP157AAC3), 512MB DDR3, 4GB eMMC as well as an integrated GigE PHY chip. The base board has brought out rich peripherals through connectors and headers such as RS232, RS485, USB Type-C DRP, USB2.0 HOST, Gigabit Ethernet, WiFi/Bluetooth, CAN, Micro SD Card Slot, JTAG, RGB888 based LCD/HDMI, MIPI-DSI, etc.

The MYD-YA157C-V3 is running Linux 5.4.31. MYIR provides abundant software resources for Yocto 3.1 based MYIR MEasy-HMI system, Yocto 3.1 based ST Weston system, Yocto 3.1 based MYIR MEasy-IOT system and Ubuntu 18.04 system including kernel and driver source code, STM32CubeProgrammer and STM32CubeMX tools to enable users to start their development rapidly and easily.

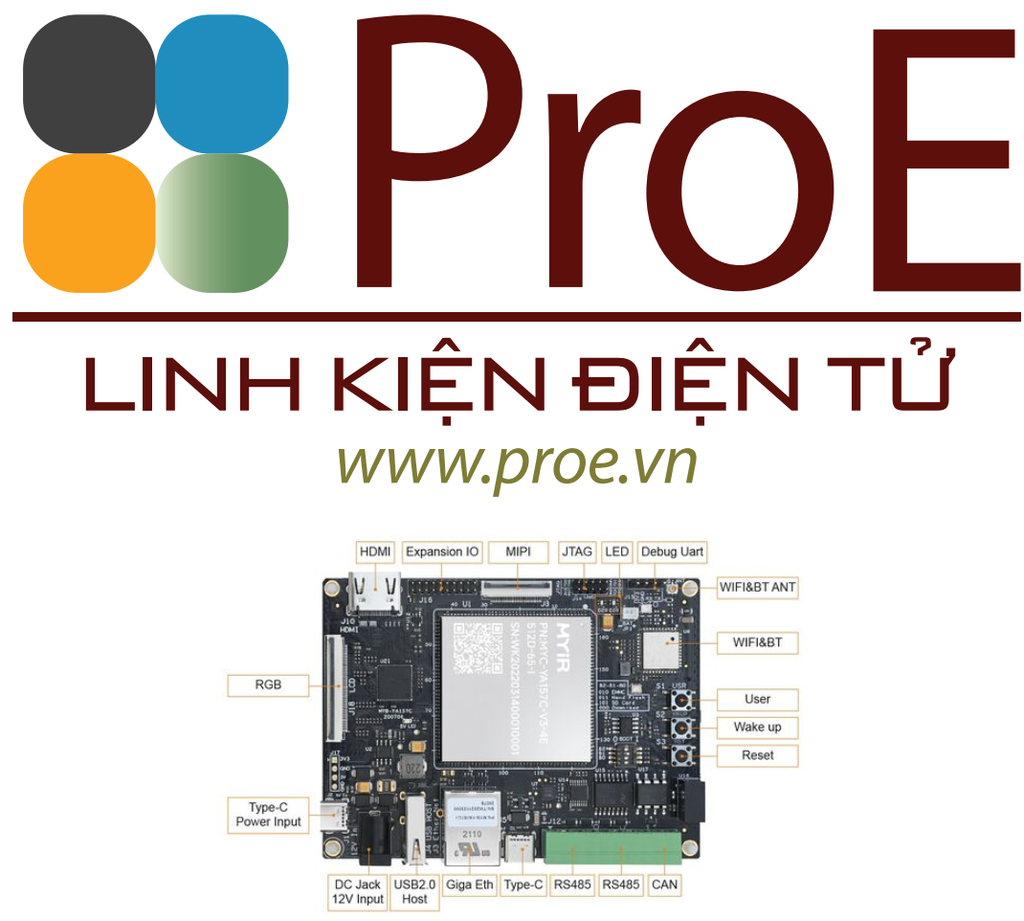

MYD-YA157C-V3 Development Board Top-view

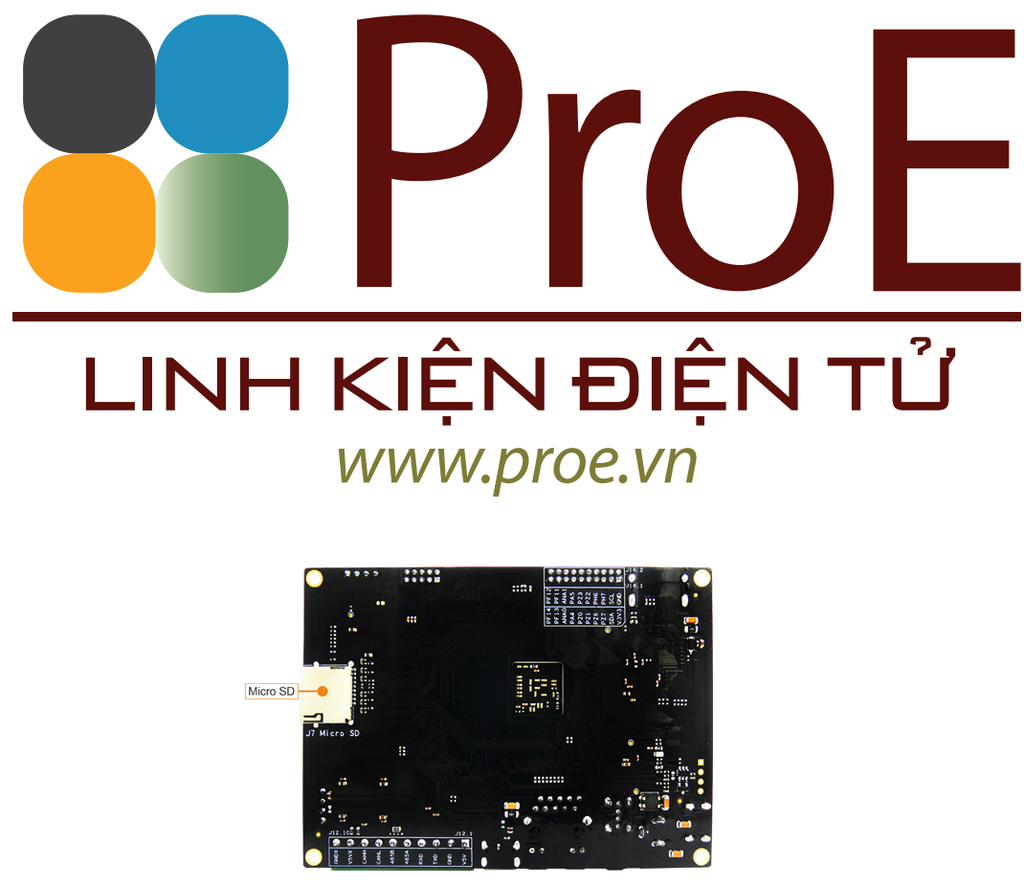

MYD-YA157C-V3 Development Board Bottom-view

The MYD-YA157C-V3 development board is delivered with one Quick Start Guide, one Type-C cable, one USB to TTL serial cable and one WiFi/Bluetooth antenna to provide user a complete platform for evaluating and prototyping based on STM32MP1 series microprocessors. MYIR also offers MY-TFT070CV2 LCD Module as an option for the board.

Features

Mechanical Parameters

• Dimensions: 110mm x 80mm (base board), 45mm x 43mm (SOM)
• PCB Layers: 4-layer design (base board) or USB Typpower supply, 8-ayer design (SOM)
• Power supply: +12V/1.5A (base board) or USB Type-C power supply, 5V/0.5A (SOM)
• Working temperature: 0~70 Celsius (commercial grade) or -40~85 Celsius (industrial grade)
  (WiFi/BT Module: -30~85 Celsius)


The MYD-YA157C-V3 Controller Board (MYC-YA157C-V3)

MYC-YA157C-V3

Processor

• STMicroelectronics STM32MP157AAC3 Microprocessor
  - Up to 650MHz dual-core Arm Cortex-A7 32-bit RISC core
  - Up to 209MHz Arm Cortex-M4 32-bit RISC core with FPU/MPU
  - Integrated 3D GPU


Memory

• 512MB DDR3 (supports up to 1GB DDR3)
• 4GB eMMC Flash (supports up to 64GB eMMC)
• Nand Flash (alternative design with eMMC, supporting 256MB / 512MB /1GB Nand Flash)

Peripherals and Signals Routed to Pins

• One 10/100/1000M Ethernet PHY
• 1.0mm pitch 164-pin stamp hole expansion interface
  - 8 x Serial ports
  - 6 x I2C
  - 6 x SPI
  - 1 x SAI
  - 1 x USB 2.0 Host and 1 x USB 2.0 OTG
  - 2 x SDIO
  - 2 x CAN
  - 1 x MIPI-DSI
  - 1 x Digital Camera Interface (DCMI)
  - 1 x RGB Interface (supports RGB888, resolution up to 1366 x 768 @60fps)
  - Up to 97 x GPIOs
  Note: the peripheral signals brought out to the expansion interface are listed in maximum number. Some signals are reused. Please refer to the processor datasheet and pin-out description file.

The MYD-YA157C-V3 Development Board Base Board

• Serial ports
• - Debug serial port (TTL)

• - 1 x RS232

• - 1 x RS485

(isolated power signal)

• USB
  - 1 x USB2.0 Host ports
  - 1 x USB Type-C DRP
• 1 x 10/100/1000 Mbps Ethernet interface (RJ45)
• 1 x CAN (isolated power signal)

• 1 x JTAG interface (2.0mm pitch 2 x 5-pin headers)
• WiFi/Bluetooth Module (complies with IEEE 802.11 b/g/n standard and supports Bluetooth V4.2)
• 1 x external antenna connector (for WiFi/Bluetooth)
• 1 x TF card slot
• RGB888 based LCD/HDMI (supports resolution up to 1366 x 768 pixels at 60Hz)
• 1 x MIPI-DSI Display Interface (supports resolution up to 1366 x 768 pixels at 60Hz)
• 3 x Buttons (one for RESET, one for Wake up and one for USER)
• 1 x 2.0mm 2*10-pin male expansion header

OS Support

• Linux 5.4.31

MYD-YA157C-V3 in the Video

- MEasy HMI QT DEMO on STM32MP1 based MYD-YA157C-V3 Dev Board with Touch Screen

- ECG DEMO on STM32MP1 based MYD-YA157C-V3 Dev Board with LCD & Mouse
