Integrated Fanless Embedded Computers

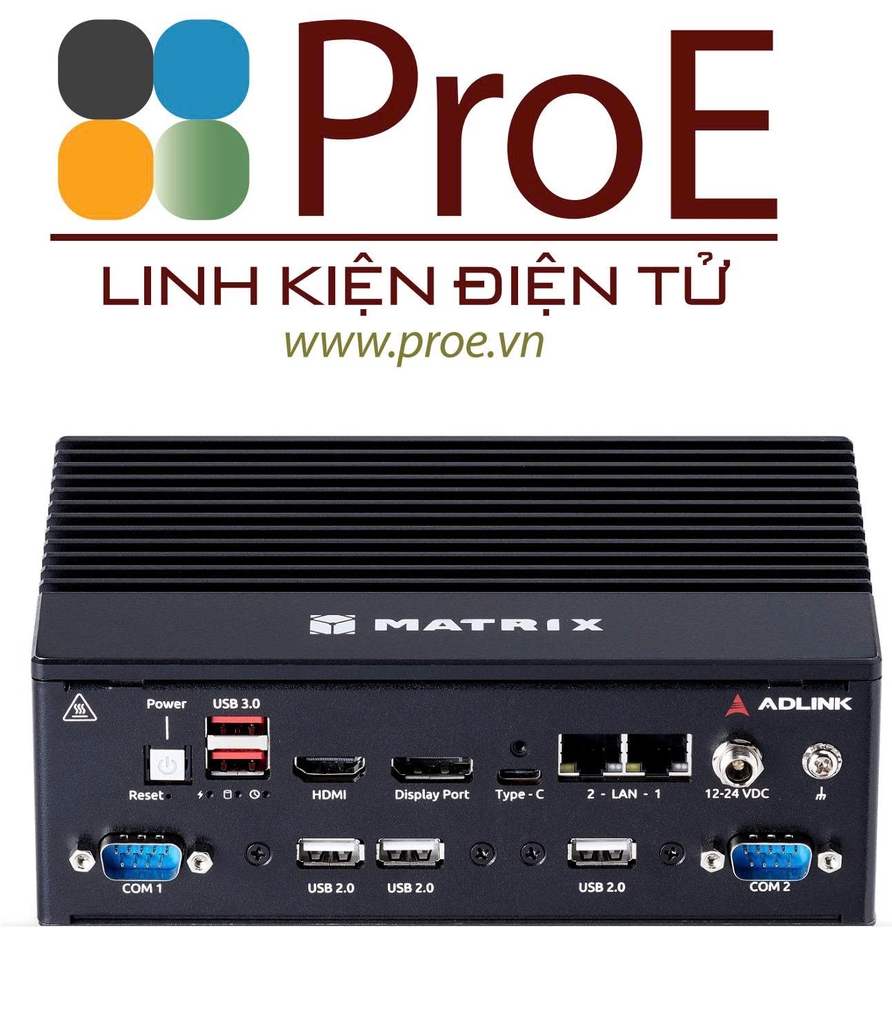

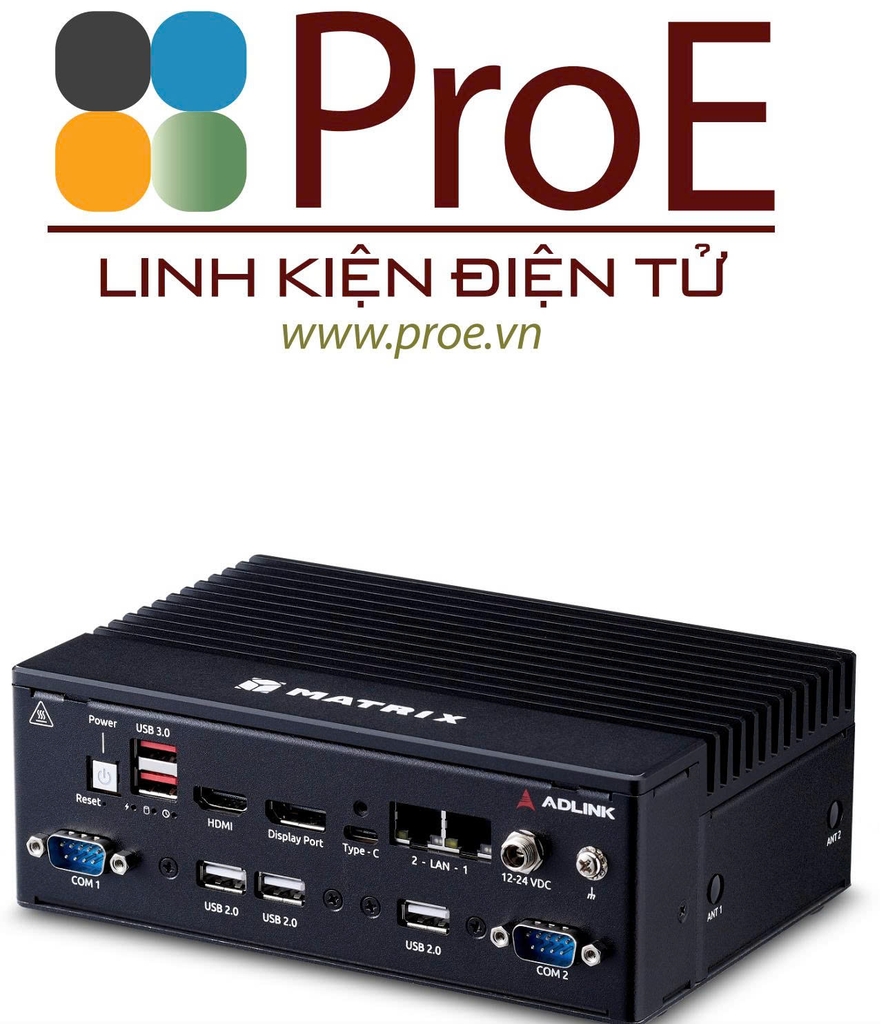

MXE-310 Series

Streamlined, Fanless, Expandable Edge Computing Platform with 13th Gen Intel® Core™ Processor

Key Features

• Streamlined size at 180 x 130 x 70 mm
• Seamlessly integrated with the Hailo-8 AI accelerator delivering 26 TOPS
• Dual DDR5 4800MHz memory up to 64GB
• Operates between -20°C and 60°C
• Supports 3 types of monitor connectors: Type-C, DP, HDMI
• Multiple I/O expansion options, including M.2 and adaptive function module
• Supports EdgeGO Device Remote Management Software

The MXE-310 is a streamlined, fanless, expandable edge computing platform powered by the 13th Gen Intel® Core™ i7/i5/i3 processors. Designed for high performance in a compact form factor, the MXE-310 supports up to 64GB of DDR5 4800MHz memory and operates efficiently within a temperature range of -20°C to 60°C. It offers extensive connectivity options, including three monitor outputs (Type-C, DisplayPort, HDMI) and up to six LAN ports, making it versatile for various industrial applications.

The system also includes multiple I/O expansion options, such as M.2 slots (B-Key, E-Key, M-Key) and adaptive function modules, with rich I/O interfaces like 16-bit DIO, 4 COM ports, and optional CAN bus. Additionally, the MXE-310 integrates TPM 2.0 for enhanced security and supports EdgeGO Remote Management and Control Software for easy operation and maintenance.

Ideal for diverse industrial environments, the MXE-310 excels in AI object detection, providing real-time analysis and decision-making capabilities. It ensures reliable and efficient customer interactions in self-service kiosks and offers precise, responsive control in motion controllers for automation systems. Furthermore, it serves as an effective gateway in semiconductor devices, facilitating efficient data collection and management.

A modular design with adaptive function module expansion allows for flexible system integration, enabling users to add various communication modules, including Wi-Fi, 4G/LTE, GPS, and M.2 2280 M-key storage.

Ordering Information

• 93-41062-00xx

  MXE-310/315E/M8G
