Power over Ethernet HAT (E) for Raspberry Pi 3B+/4B, 802.3af-compliant
- Mã sản phẩm: PoE HAT (E)
- Nhà sản xuất: Waveshare
- Website hỗ trợ: https://www.proe.vn
490.000₫
- PACKAGE CONTENT
-
Weight: 0.009 kg
PoE HAT (E) x1
Power Over Ethernet HAT (E) For Raspberry Pi 3B+/4B, 802.3af-Compliant
MINI POE HAT FOR RASPBERRY PI
Power Over Ethernet HAT For Raspberry Pi 3B+/4B, IEEE 802.3af-Compliant
Mini Body, More Space-Saving
Features At A Glance

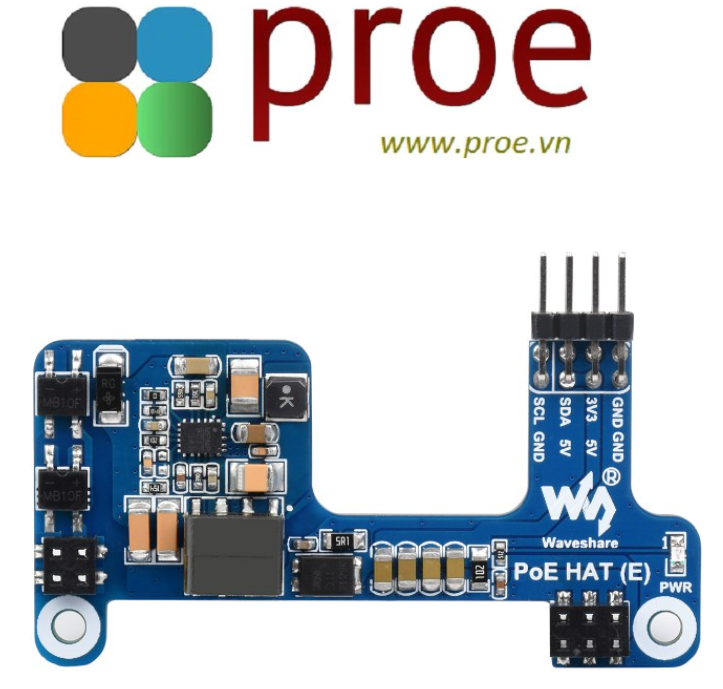

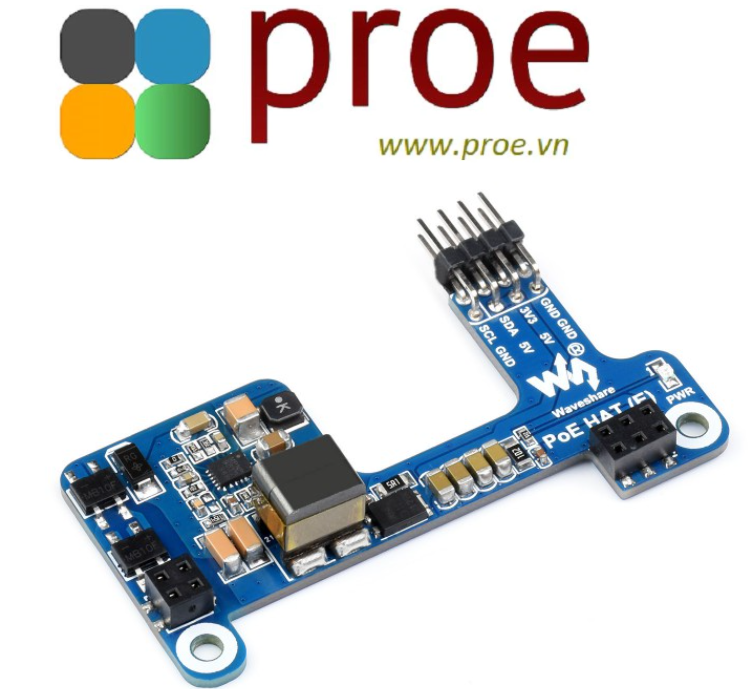

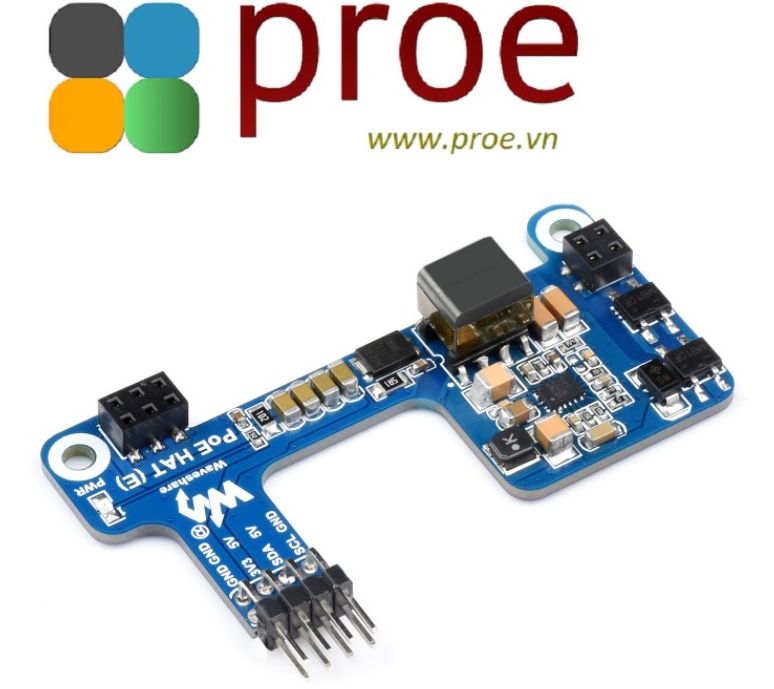

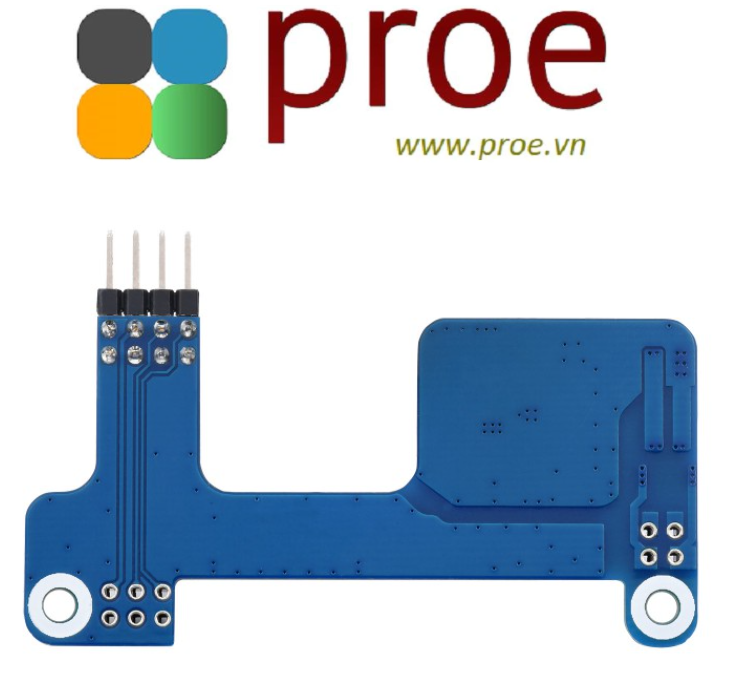

The PoE HAT (E) is a mini 802.3af-compliant Power Over Ethernet accessory for the Raspberry Pi 3B+/4B. By using this small HAT and some proper 802.3af-compliant power sourcing equipments, it is possible to provide both network connection and power supply for your Raspberry Pi in only one Ethernet cable.
- Supports Raspberry Pi 3B+/4B, compatible with the Raspberry Pi official case
- PoE (Power Over Ethernet) capability，IEEE 802.3af-compliant
- Fully isolated switched-mode power supply (SMPS)
- Smaller and more flexible with a more compact component layout
Specifications
| POE POWER INPUT | 37V ~ 57V DC in |
|---|---|
| POWER OUTPUT | 5V 2.5A DC out |
| NETWORK STANDARD | IEEE 802.3af PoE |
| DIMENSIONS | 65.00 × 32.00mm |

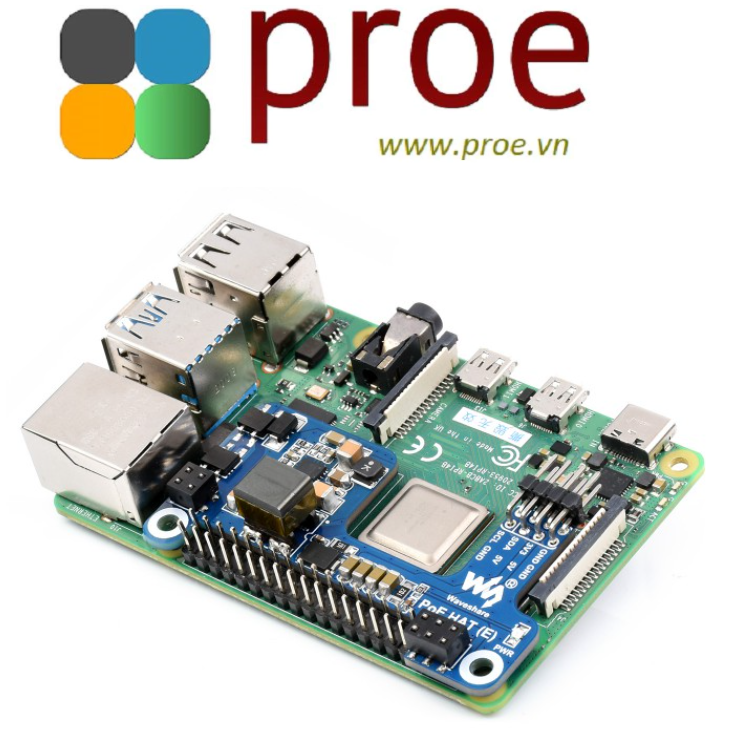

For Use With Raspberry Pi 3B+/4B
Compatible With Official Case
Support Connecting Cooling Fan
Power Over Ethernet
Providing Both Network Connection And Power Supply For Your Raspberry Pi In One Cable
Raspberry Pi, official case, heatsink, cooling fan and PoE equipment are NOT included.
Onboard Resources
Outline Dimensions
