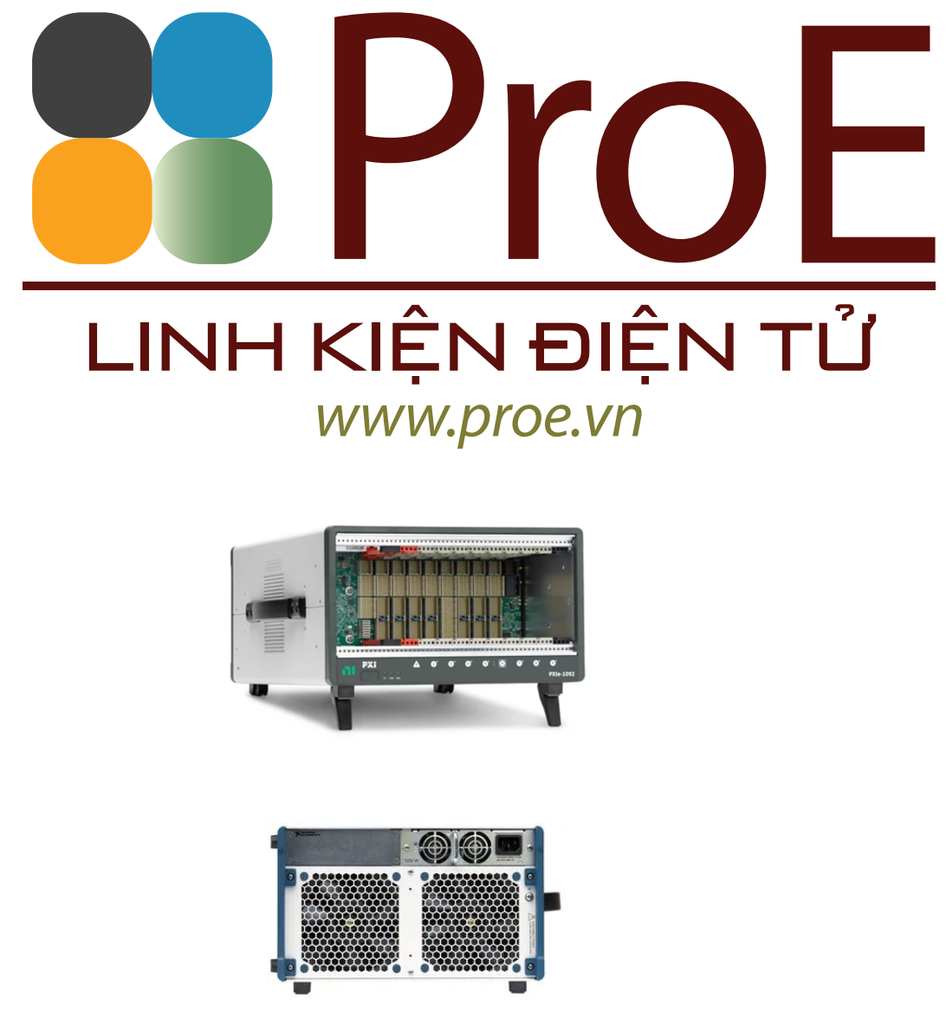

Chassis, PXIe-1092, PXI System, 10 Slots, 3U, 24 GB/s, VCXO

PXIe, 10-Slot (7 Hybrid Slots, 1 PXI Express System Timing Slot, 1 Peripheral Expansion Slot), Up to 24 GB/s PXI Chassis

The PXIe-1092 features a high-bandwidth backplane and up to 82 W of power and cooling in every slot to meet a wide range of high-performance test and measurement application requirements. The all-hybrid backplane enables excellent flexibility for instrumentation module placement by accepting PXI Express modules in every slot and PXI hybrid-compatible modules in up to seven slots. It also offers a Timing and Synchronization option that includes a built-in oven-controlled crystal oscillator (OCXO) for increased clock accuracy and external clock and trigger routing. The chassis includes a peripheral expansion slot in Slot 10 to provide power only for multiple-slot wide modules.

PXI Chassis Type: PXI Express

Chassis Power Supply Type: AC

Number of Hybrid Slots: 7

Number of PXI Express Slots: 0

Redundant HW Option: No

Maximum System Bandwidth: 24 GB/s

Slot Count: 10

Number of PXI Slots: 0

System Timing Slot: Yes

Slot Cooling Capacity: 82 W
