Industrial HMI All-in-one Touch Display For Raspberry Pi, Options For 8inch / 10.1inch, Supports Dual 4K HDMI Output, 10-point Touch, Optical Bonding, Aluminum Alloy Case

Industrial HMI All-in-one Touch Display For Raspberry Pi, Options For 8inch / 10.1inch, Supports Dual 4K HDMI Output, 10-point Touch, Optical Bonding, Aluminum Alloy Case, High-efficiency Heat Dissipation

Industrial HMI All-in-one touch Display
for Raspberry pi

High Resolution | 10-point Touch | Aluminum alloy case

• SizeOptions For 8″/10.1″
• Resolution1280×800
• Display PanelIPS
• Viewing Angle178°
• Touch TypeCapacitive
• Touch Points10-Point
• Touch PanelToughened Glass
• Touch Panel TechOptical Bonding
• Front Camera5MP
• Display InterfaceDual Standard HDMI
  4K Output
• Power PortType-C/Screw Terminal
• EnclosureAluminum Alloy

Size Options

8″

10.1″

Version Options

Pi5 All-in-one Display
(Raspberry Pi 5-4GB is included, assembled before shippment)

Pi4 All-in-one Display
(Raspberry Pi 4-2GB is included, assembled before shippment)

RPI-HMI-080D/101D-ACCE
Touch Display + Power Supply + TF Card + Accessories pack
(the Raspberry Pi is NOT included)

RPI-HMI-080D/101D-ACCE-B
Touch Display + Accessories pack only, without Power Supply and TF Card
(the Raspberry Pi is NOT included)

Toughened Glass Panel

Sensitive touch control with High Resolution display, durable design

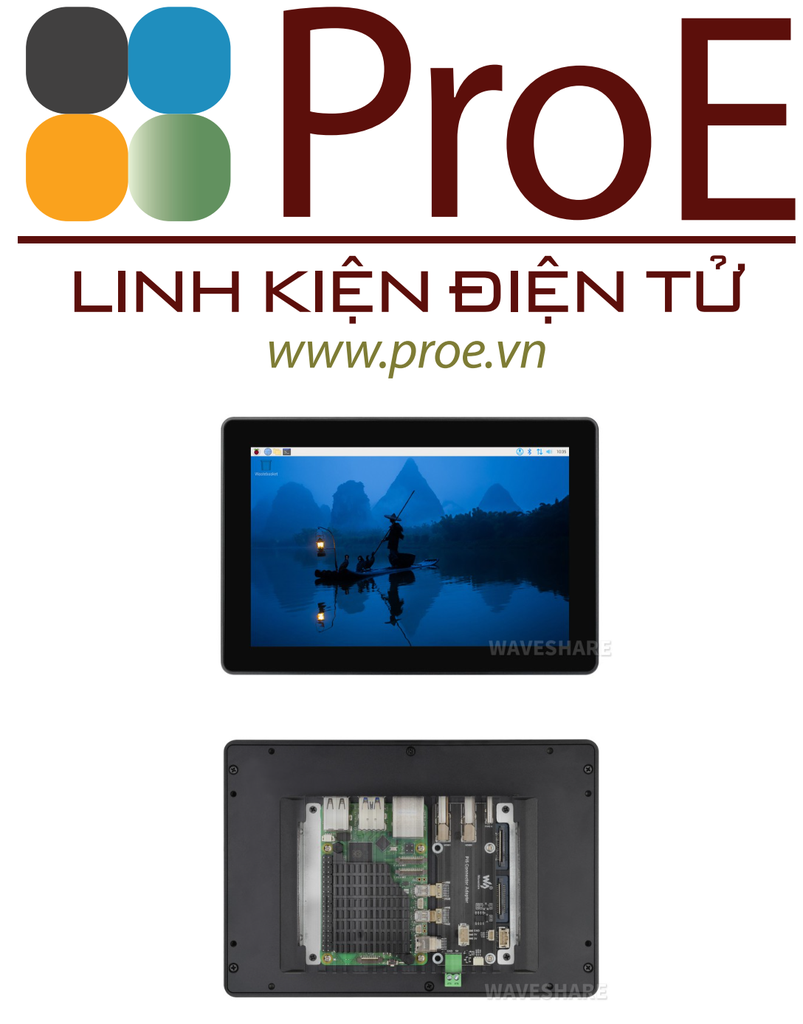

Built-in Raspberry Pi (Optional)

Pi5 All-in-one Display: quad-core Arm Cortex-A76 64-bit 2.4GHz CPU
Pi4 All-in-one Display: quad-core Arm Cortex-A76 64-bit 1.5GHz CPU

* the Raspberry Pi is optional.

5MP front camera

For Accurate face recognition, ensuring safety every moment

10-Point Capacitive Touch

1. up to 10-point touch, depending on the operating system
2. up to 6H hardness toughened glass panel
3. Optical bonding, display well and dustproof

Adjustable brightness via software

Excellent heat dissipation

Full Metal Enclosure with efficient heat dissipation, Pure passive cooling, no fan noise worries

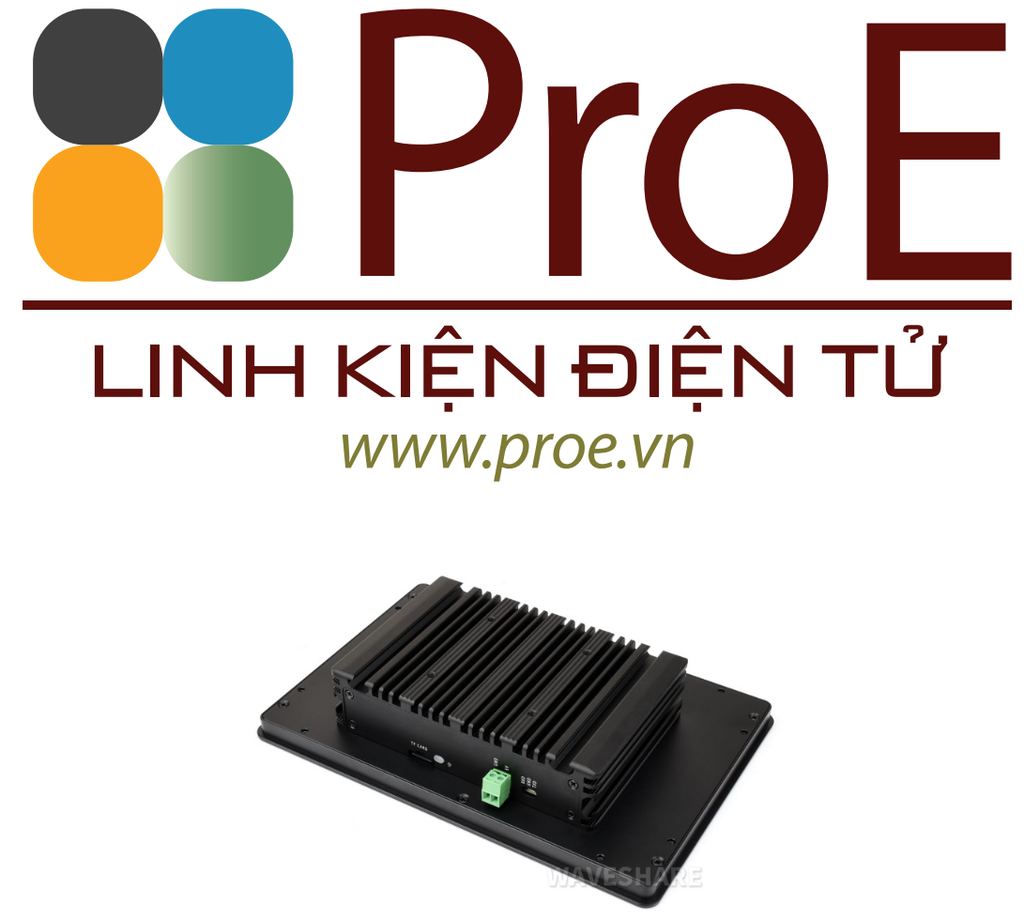

Two power supply methods

Supports power supply via screw terminal or USB Type-C Port

VESA Mounting Support

Easily adaptable to various monitor arms, enjoy a flexible installation experience

* Note: the monitor arm is NOT included, please refer to the package content for the detailed part list.

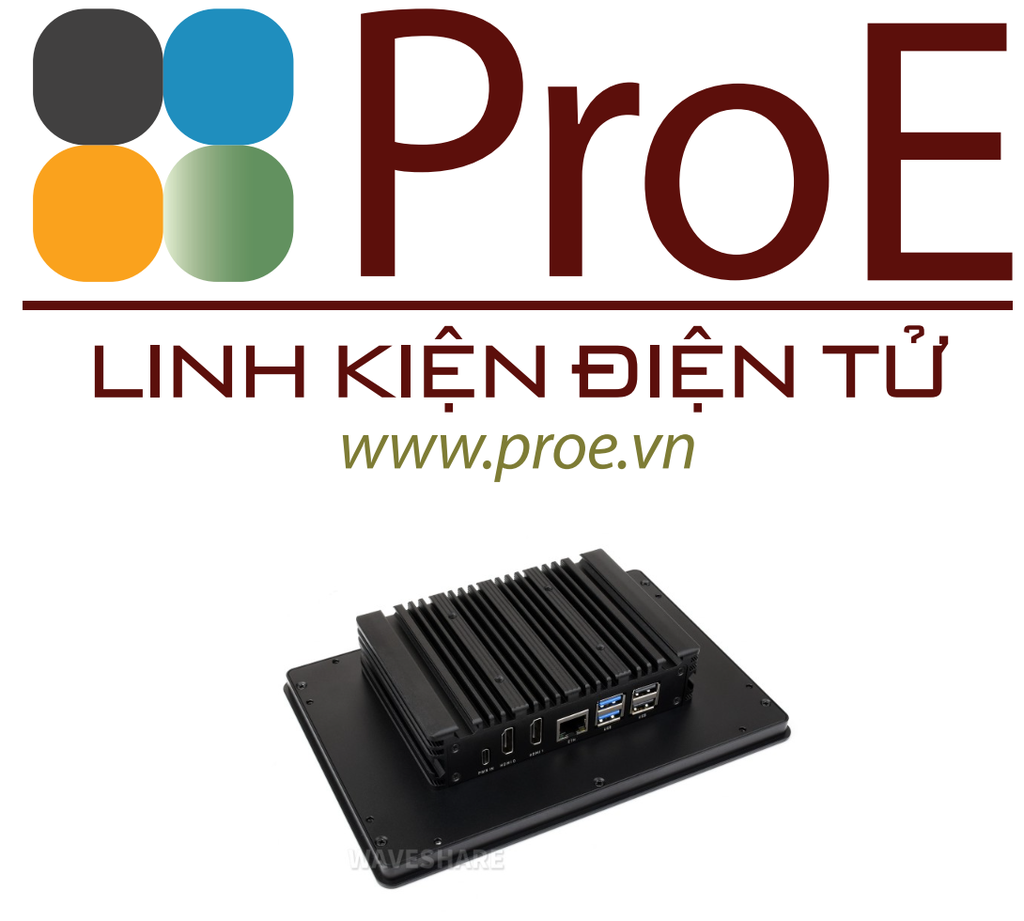

Interface Introduction

1. 5V Type-C power port
2. Standard HDMI Interface x 2
3. USB3.0 port x 2
4. USB2.0 port x 2
5. Gigabit Ethernet connector

6. TF card slot
7. Power button
8. Power indicator
9. 5V Power supply screw terminal (3.81mm pitch)
10. Debugging serial port

Dimensions

8inch version

10.1inch version

Support touch screen customization

Support the following ways to customize the touch screen display in bulk order

Over a decade
Waveshare grows with display

* Waveshare has been focusing on display design for over 10 years.

Resources & Services

Wiki: www.waveshare.com/wiki/RPI-HMI-080D-101D
