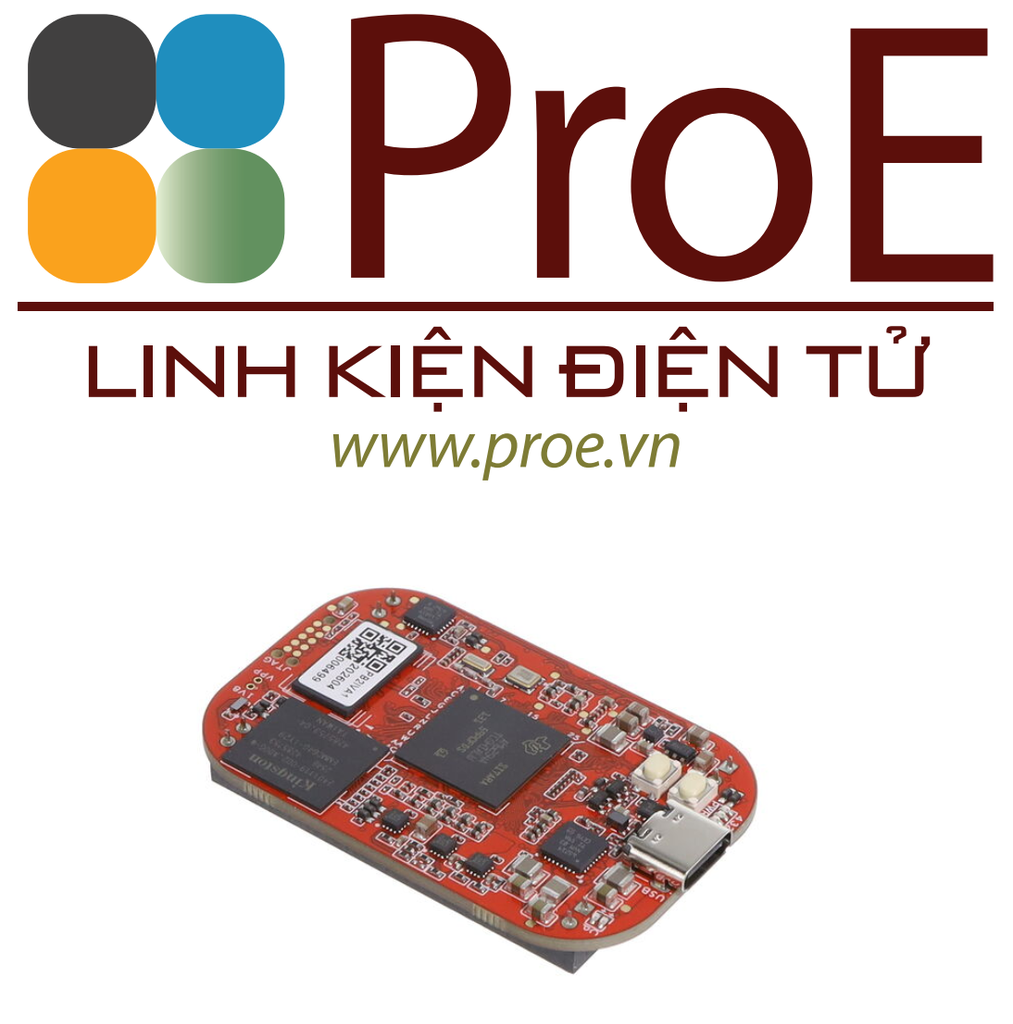

POCKETBEAGLE 2 INDUSTRIAL

PocketBeagle 2 Industrial is an industrial-grade version of the popular PocketBeagle 2. This ultra-compact, low-cost, yet powerful single-board computer (SBC) is designed for prototyping and industrial equipment. It retains the simplicity and flexibility of its predecessor while delivering enhanced performance with on-board 1GB DDR4 RAM and 64GB eMMC storage to meet modern development demands. Engineered for reliability in harsh environments, it features an extended operating temperature range of -40°C to 85°C. Its small form factor and low power consumption make it a robust and versatile platform for embedded development, from prototyping to large-scale deployment.

PocketBeagle 2 Industrial is based on Texas Instruments AM6254 SoC. Its multiple A53 cores can provide higher performance than the classic PocketBeagle. The new design comes with pre-soldered headers, a 3-pin JST-SH 1.00mm UART debug port, a USB-C port, Texas Instruments MSPM0L1105 Cortex-M0+ MCU for ADC, 1GB RAM, 64GB flash and a LiPo battery charger.

Key differences from PocketBeagle 2:

• Industrial temperature range support
• 1GB DDR4 RAM (up from 512MB DDR4 RAM on PocketBeagle 2)
• 64GB eMMC flash (not populated on PocketBeagle 2)

Board Features

• Processor: Texas Instruments AM6254 SoC
• SDRAM Memory: 1GB DDR4 3200MHz
• Flash: 64GB eMMC
• PMIC: TPS6521903
• Debug Support:
• 3 pin 3.3V JST-SH 1.00mm UART debug port (RPI debug probe compatible)
• 10-pin JTAG TAG-CONNECT footprint
• Power Source: USB C or Cape Header VIN (5V @ 1A)
• Expansion: 72 expansion pin headers with power and battery I/Os, high-speed USB, 8 analog inputs, 52 digital I/Os, and numerous digital interface peripherals
• LED Indicators: 1x Power, 1x Battery charging, and 4x User Controllable LEDs
• SD/MMC Connector: microSD (1.8/3.3V)
• User Input:
• Power Button
• User/Boot Button
• PCB: 55 x 35 mm
• Weight: 12.7gm

Chipset Features

Texas Instruments AM6254 SoC

• Multicore 64-bit Arm Cortex-A53 microprocessor subsystem at up to 1.4 GHz
• Quad Cortex-A53 cluster with 512KB L2
  shared cache with SECDED ECC
• Each A53 Core has 32KB L1 DCache with
  SECDED ECC and 32KB L1 ICache with Parity
  protection
• Single-core Arm® Cortex®-M4F MCU at up to 400
  MHz

• 256KB SRAM with SECDED ECC
• Dual-core Programmable Real-Time Unit
  Subystem (PRUSS) running up to 333 MHz
• Dedicated Device/Power Manager
• Trusted Execution Environment (TEE) supported

Texas Instruments MSPM0L1105 Arm Cortex-M0+ MCU

• 32-MHz Arm® Cortex®-M0+ MCU
• 32-KB flash
• 4-KB SRAM
• 12-bit ADC
