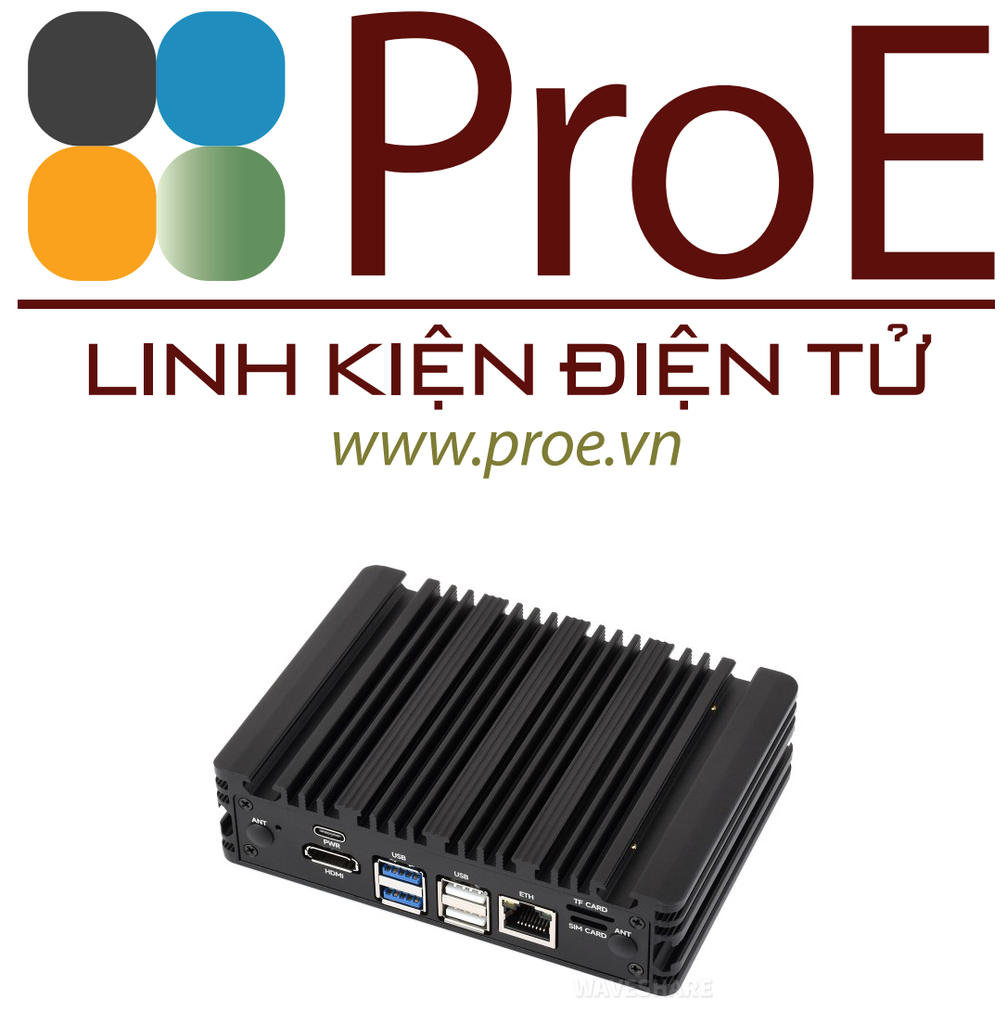

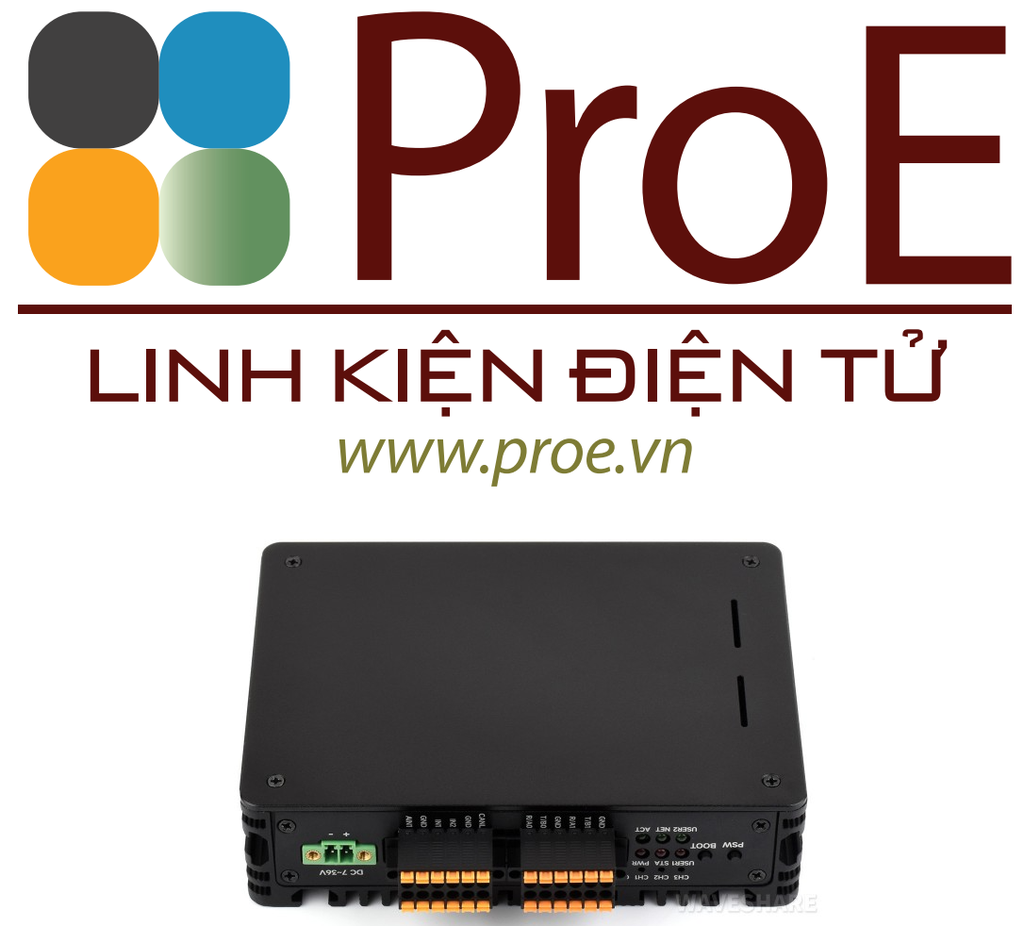

Industrial Computer For Raspberry Pi Compute Module 5

  • Mã sản phẩm: CM5-HMI-BOX-A (4 × RS485) SKU 35745
  • Nhà sản xuất: Waveshare
  • Website hỗ trợ: https://www.proe.vn
0₫ Giá thị trường: Tiết kiệm:
Version Options

WIKI: docs.waveshare.com/CM5-HMI-BOX-A

Industrial Computer For Raspberry Pi Compute Module 5 (NOT included), 1000M Ethernet RJ45 port, Supports RS485 And 4G/5G Communication, with aluminum alloy heat dissipation case
Industrial Computer based on
Compute Module 5

Designed for Raspberry Pi Compute Module 5

 Gigabit/2.5G Dual Ethernet Industrial Computer For Raspberry Pi CM5, front view
* the Raspberry Pi CM5 is NOT included.
Version Options
CM5-HMI-BOX-A

CM5-HMI-BOX-A
Onboard 4 × RS485 interfaces


CM5-HMI-BOX-B

CM5-HMI-BOX-B
Onboard 2 × RS485 + 2 × RS232 interfaces

All versions come with an aluminum alloy case and power supply adapter,
please refer to the package content for the detailed part list.


Specifications
CM5 socket Suitable for all variants of Compute Module 5
Networking 1000M Ethernet RJ45 port
USB USB 3.2 Gen1 port × 2
USB 2.0 port × 2
Video HDMI port × 1, supports 4K display output
M.2 M.2 M KEY (PCIe Gen2/3 × 1, 2230 / 2242 / 2260 / 2280)
M.2 B KEY, supports connecting 4G / 5G communication module
Storage TF card socket for Compute Module 5 Lite (without eMMC) variants
Serial Interface Options for 2 × RS485 + 2 × RS232 version or 4 × RS485 version
1 × CAN with up to 1Mbps communication rate
Digital Input/Output 2 × digital outputs + 2 × digital inputs
Analog Input 2 × ADC analog inputs
(Supports 4 ~ 20mA current acquisition by desoldering components)
Fan header 5V, 2 × 4PIN JST-SH PWM fan headers (Select one)
Buzzer 1-ch controllable buzzer
Other Onboard EEPROM and encryption chip
Power Input 7V ~ 36V wide voltage range screw terminal, 5V 5A Type-C port
Dimensions 132.50 × 92.00 × 34.50 (mm)
What's the differences
CM5 Base Board Interface count and specifications
PoE Gigabit
ETH		 40PIN
GPIO		 PCIe USB① MIPI HDMI RTC Fan
Header②		 Power
Input		 Features

NANO A		     √   3.0×1 ×2   SH1.0 √ 5V CM5 sized

NANO B		   ×1 √ 16PIN PCIe 3.0×1 ×2 √ SH1.0 √ 5V CM5 sized

mini Base A		 ×1 √ 16PIN PCIe 3.0×2
2.0×2		 ×2 ×2 ML/CR1220 √ 5V mini size

mini Base B		 ×1 √ M.2 M KEY 3.0×2
2.0×2		 ×2 ×2 ML/CR1220 √ 5V mini size, onboard EEPROM and encryption chip

Mini Dual Gigabit		 ×2 √   3.0×1     SH1.0 √ 5V dual ETH

Dual ETH A		 1G ×1
2.5G ×1		 √ M.2 M KEY 3.0×1
2.0×2		 ×2 ×2 ML/CR1220 √ 7V~36V dual ETH, onboard EEPROM and Encryption chip

Dual ETH B		 1G ×1
2.5G ×1		 √ M.2 M KEY 3.0×1
2.0×1		 ×2 ×1 SH1.0 √ 5V dual ETH ports

Dual ETH 4G/5G		 1G ×1
2.5G ×1		 √ M.2 M KEY 3.0×2 ×2 ×2 ML/CR1220 √ 7V~36V dual ETH and 4G/5G support

PoE Base		 √ ×1 √ M.2 M KEY 3.0×2
2.0×2		 ×2 ×2 ML/CR1220 √ 5V USB×4

Raspberry Pi official		 ③ ×1 √ M.2 M KEY 3.0×2 ×2 ×2 ML/CR1220 √ 5V Official IO base board

IPCBOX-CM5		 1G ×1
2.5G ×1		 M.2 M KEY 3.0×1
2.0×3		 ×1 SH1.0 √ 7V~36V dual ETH,
4G/5G support,
RS485/RS232,
Encryption chip,
EEPROM,
CAN,
digital inputs,
digital outputs,
audio,
an buzzer

CM5 Dual ETH Multi-function		 1G ×1
2.5G ×1		 M.2 M KEY 3.0×1
2.0×2		 ×2 ×1 SH1.0 √ 7V~36V dual ETH,
4G/5G support,
RS485,
Encryption chip,
digital input,
relay,
and buzzer

CM5 Wireless Extension		 1G ×1 M.2 M KEY, M.2 B KEY/Mini-PCIe 3.0×1
2.0×2		 ×2 ×1 ML/CR1220 √ 5V or 7V~36V 5G/4G,
Lora,
RS485,
CAN,
and rail-mount support

CM5-HMI-BOX		 1G ×1 M.2 M KEY 3.0×2
2.0×2		 ×2 ×1 SH1.0 √ 7V~36V 4G/5G support,
RS485/RS232,
Encryption chip,
EEPROM,
CAN,
digital inputs,
digital outputs,
an buzzer,
power-Loss protection
Note ① USB 3.0 is equivalent to USB 3.2 Gen1.
② Unless otherwise specified, the Fan header usually is JST-SH type connector.
③ There's PoE header only on the Raspberry Pi official IO board without PoE circuit, which means additional PoE module is required for the official IO board to enable PoE feature.
Unless otherwise specified, the PoE feature here stands for integrating 802.3af-compliant PoE circuit (5V/2.5A).

Connecting with Compute Module 5

standard CM5 socket suitable for Compute Module 5 Lite / eMMC series module

Dual Ethernet Base Board connecting with Compute Module 5

* for reference only, please refer to the package content for detailed part list


4G / 5G module compatibility

compatible with communication modules with M.2 B KEY interface

Gigabit/2.5G Dual Ethernet Industrial Computer For Raspberry Pi CM5, compatible with communication modules with M.2 B KEY interface

* An additional communication module is required to enable 5G/4G/3G/2G cellular network function, recommended: SIM7600G-H-M.2, SIM8260G-M2, and SIM8262E-M2.

Supports connecting to M.2 NVMe Drive

Faster reading/writing speed compared to the TF card slot of Raspberry Pi, greatly improving reading/writing efficiency of the system or files, Supports booting Pi5 from NVME Solid State Drive

Gigabit/2.5G Dual Ethernet Industrial Computer For Raspberry Pi CM5, Supports M.2 NVMe Solid State Drive

* for reference only, please refer to the package content for detailed part list.

Applicable M.2 drive sizes
Gigabit/2.5G Dual Ethernet Industrial Computer For Raspberry Pi CM5, Suitable with M.2 Solid State Drive dimensions
NVMe Drive Slot Support
Gigabit/2.5G Dual Ethernet Industrial Computer For Raspberry Pi CM5, Suitable with Solid State Drive Interface

* Only supports the NVMe Protocol Solid State Drives.

Precise cut-out with clear label

each cut-out is completely aligned with the connector

Gigabit/2.5G Dual Ethernet Industrial Computer For Raspberry Pi CM5, Precise hole positioning design
Supports Rail mounting and VASE mounting

Reserved Rail-mount buckle and VASE mounting holes for more convenient installations

Gigabit/2.5G Dual Ethernet Industrial Computer For Raspberry Pi CM5, The top of the case is reserved for ventilation openings, built-in fans for better heat dissipation.

* for reference only, comes with rail-mount buckle and is compatible with VESA mounting.


Heat Dissipation Design

Aluminum alloy case enables large-area heat conduction and dissipation, combined with heat sink fins, better heat dissipation

Gigabit/2.5G Dual Ethernet Industrial Computer For Raspberry Pi CM5, The top of the case is reserved for ventilation openings, built-in fans for better heat dissipation.

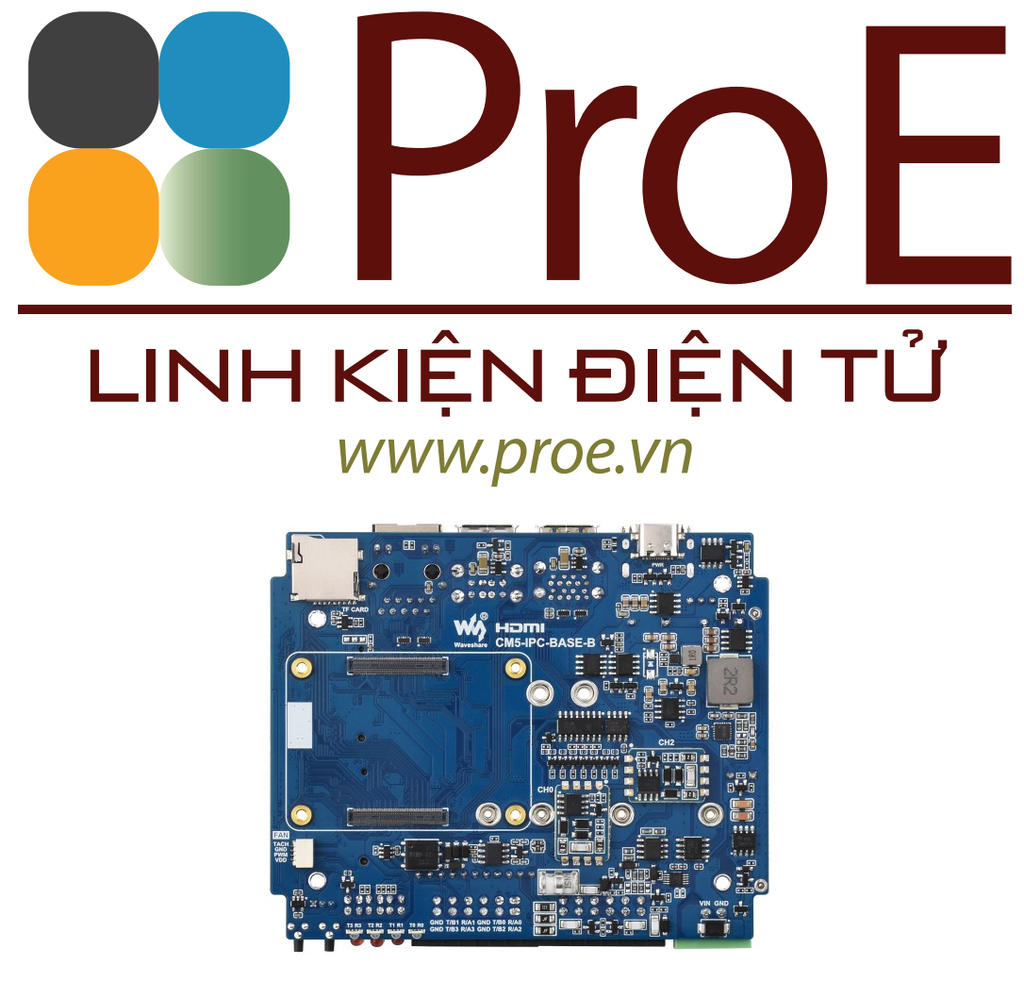

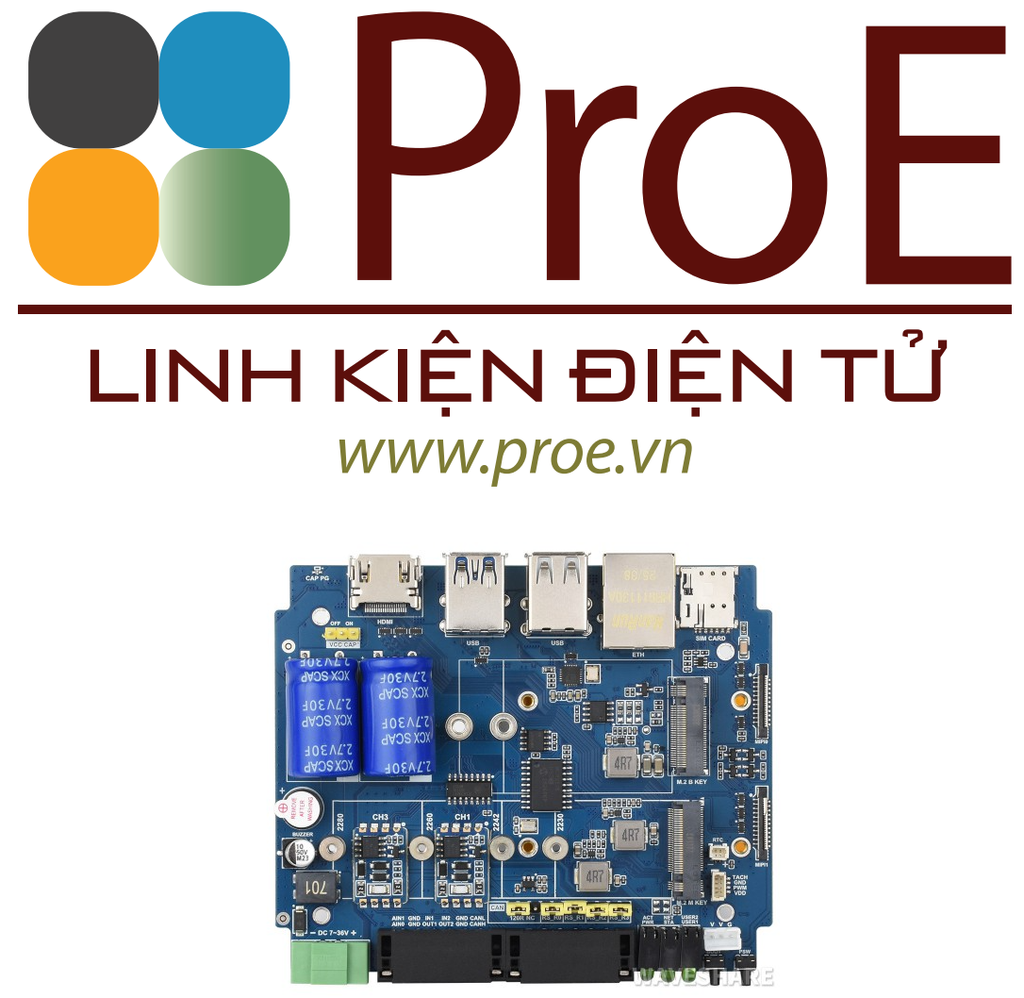

What's On Board
Dual Ethernet 4G/5G Base Board designed for CM 5, onboard components
  1. CM5 socket
    suitable for all variants of Compute Module 5
  2. TF card slot
    for connecting a TF card with pre-burnt system (Lite variant ONLY)
  3. Type-C port
    for power supply, eMMC flashing, or USB OTG
  4. FAN connector
    for connecting cooling fan, 5V, 4PIN JST-SH PWM fan connector (parallel with fan connector ⑧, only one connector can be used to connect a fan at a time)
  5. Serial communication indicators
  6. Dual MIPI interfaces
    for connecting to DSI displays or CSI cameras
  7. RTC Batt header
    supports RTC Batt for powering the RTC
  8. FAN connector
    for connecting cooling fan, 5V, 4PIN JST-SH PWM fan connector (parallel with fan connector ④, only one connector can be used to connect a fan at a time)
  9. 5V output header
  10. PSW power button
    Long press to force power off, short press to soft power off or on
  11. BOOT button
    press before powering on to enter the burning mode
  12. System function indicators
  13. M.2 M KEY
    supports 2280 / 2260 / 2242 / 2230 NVMe Solid State Drives or AI modules

  1. M.2 B KEY
    supports connecting 4G/5G communication module
  2. RS485 terminal resistor jumper
    No function for RS232
  3. RS485 / RS232 interface
    Options for 2 × RS485 + 2 × RS232 version or 4 × RS485 version
  4. CAN terminal resistor jumper
  5. Multi-function interface
    1 × CAN interface with up to 1Mbps, 2 × digital inputs, 2 × digital outputs, and 2 × analog inputs
  6. DC power screw terminal
    supports DC 7V ~ 36V power supply
  7. Buzzer
  8. Power-Loss protection capacitors
  9. Charging enable jumper
    Set the jumper to ON to charge the supercapacitor. Charging automatically stops when the capacitor is fully charged
  10. HDMI port
    supports 4K output
  11. Dual USB 3.0 ports
    2 × USB 3.2 Gen1 Type-A port with up to 5Gbps rate
  12. Dual USB 2.0 ports
    2 × standard USB 2.0 Type-A port
  13. 1000M Ethernet RJ45 port
    supports 10M / 100M / 1000M network connections
  14. Nano SIM card slot


How to install

CM5-HMI-7A-ACCE/8/10.1 How to install
CM5-HMI-7A-ACCE/8/10.1, Step 1

Step 1: Install the standoffs ① at the positions shown.


CM5-HMI-7A-ACCE/8/10.1, Step 2

Step 2: Install the CM5 module on the back of baseboard, and attach the pink thermal tapes.


CM5-HMI-7A-ACCE/8/10.1, Step 3

Step 3: Install the baseboard with the CM5 installed onto the top cover and secure it with the silver screws ②.


CM5-HMI-7A-ACCE/8/10.1, Step 4

Step 4: Install the front and rear covers and secure them with the black screws ③, then install the antenna rubber plugs ④, and remove the sticker from the buzzer.


CM5-HMI-7A-ACCE/8/10.1, Step 5

Step 5: Install the bottom cover and secure it with the black screws ③, then install the double-layer terminal blocks ⑧.


CM5-HMI-7A-ACCE/8/10.1, Step 6

Step 6: Secure the rail-mount buckle ⑦ to the host with the T-nuts ⑥ and black screws ⑤, then connect the power adapter cable ⑨.

* for reference only, please refer to the package content for detailed part list.

Application Example

Suitable for Raspberry Pi applications in remote communication or other industrial situations

Gigabit/2.5G Dual Ethernet Industrial Computer For Raspberry Pi CM5, Suitable for Raspberry Pi applications in remote communications or other industrial settings

* for reference only, the display, keyboard, and mouse are NOT included, please purchase separately.


Outline dimensions
Dual Ethernet Base Board designed for CM 5, outline dimensions

About Compute Module 5
Raspberry Pi Compute module 5, front view
Newly upgraded, more powerful
  • Upgraded processor BCM2712, quad-core Cortex-A76 64-bit SoC, more powerful performance
  • More options for RAM (2GB / 4GB / 8GB / 16GB)
  • More options for eMMC Flash (0GB (Lite) / 8GB / 16GB / 32GB / 64GB)
  • Faster eMMC Flash storage, up to 200 Mbps data rate
  • Optional for certified radio module, supports either PCB trace antenna or external antenna, more suitable for industrial applications
  • Adopts B to B connectors, most compatible with Compute Module 4
  • Onboard Gigabit Ethernet PHY supporting IEEE1588, suitable for network applications
  • Onboard PCIe Gen 2 x1 interface, allows connecting more useful modules

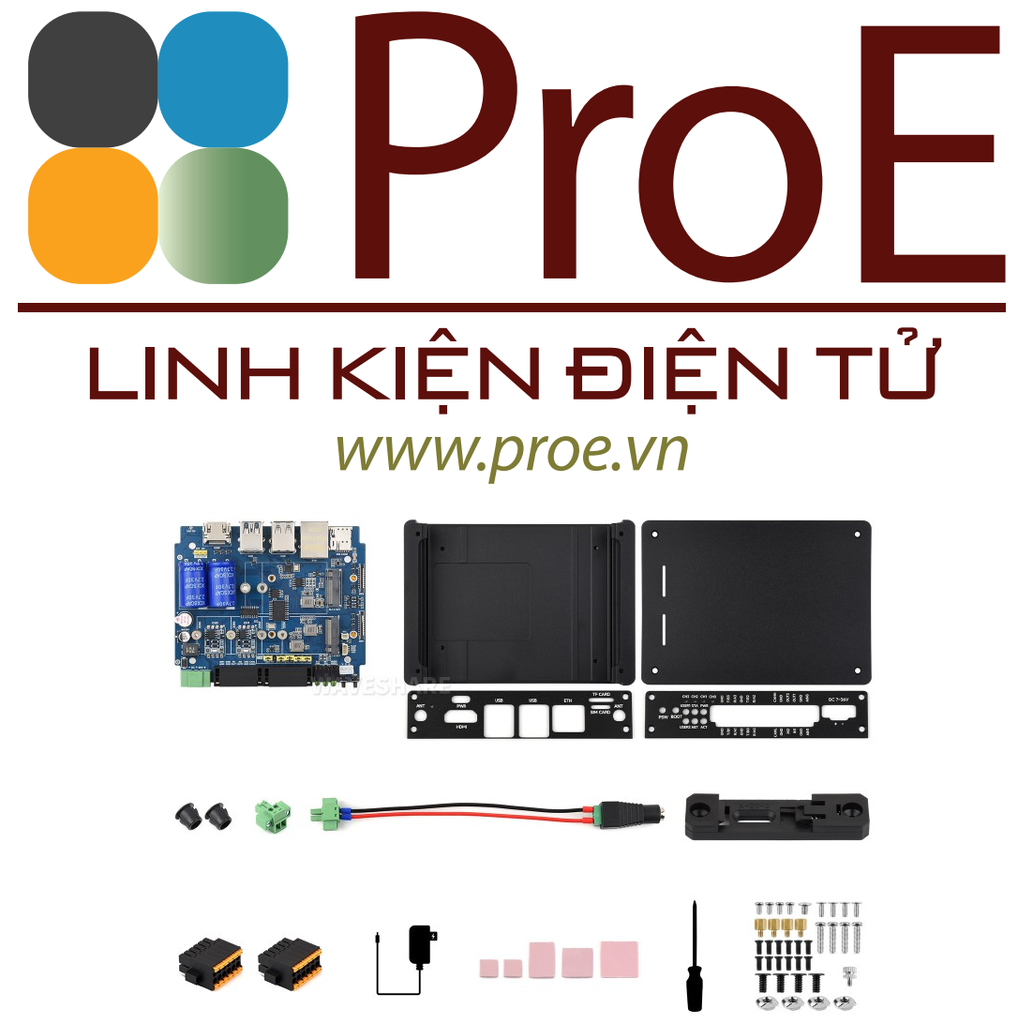

Resources & Services

CM5-HMI-BOX-A

  1. CM5-IPC-BASE-B-4RS485 baseboard x1
  2. CM5-HMI-BOX-B metal case x1
  3. Antenna rubber plug 6mm x2
  4. 2PIN 3.5mm pitch screw terminal x1
  5. Power adapter cable 15cm x1
  6. Rail-mount buckle x1
  7. 6PIN 3.5mm pitch double-layer terminal block (2PCS) x1
  8. OPTIONS 12V 4A power x1
  9. Pink thermal tapes x1
  10. Screwdriver x1
  11. Screws pack x1

Dual Ethernet Base Board designed for CM 5, CM5-HMI-BOX-B package contents


CM5-HMI-BOX-B

  1. CM5-IPC-BASE-B-2RS485 baseboard x1
  2. CM5-HMI-BOX-B metal case x1
  3. Antenna rubber plug 6mm x2
  4. 2PIN 3.5mm pitch screw terminal x1
  5. Power adapter cable 15cm x1
  6. Rail-mount buckle x1
  7. 6PIN 3.5mm pitch double-layer terminal block (2PCS) x1
  8. OPTIONS 12V 4A power x1
  9. Pink thermal tapes x1
  10. Screwdriver x1
  11. Screws pack x1

Dual Ethernet Base Board designed for CM 5, CM5-HMI-BOX-B package contents
