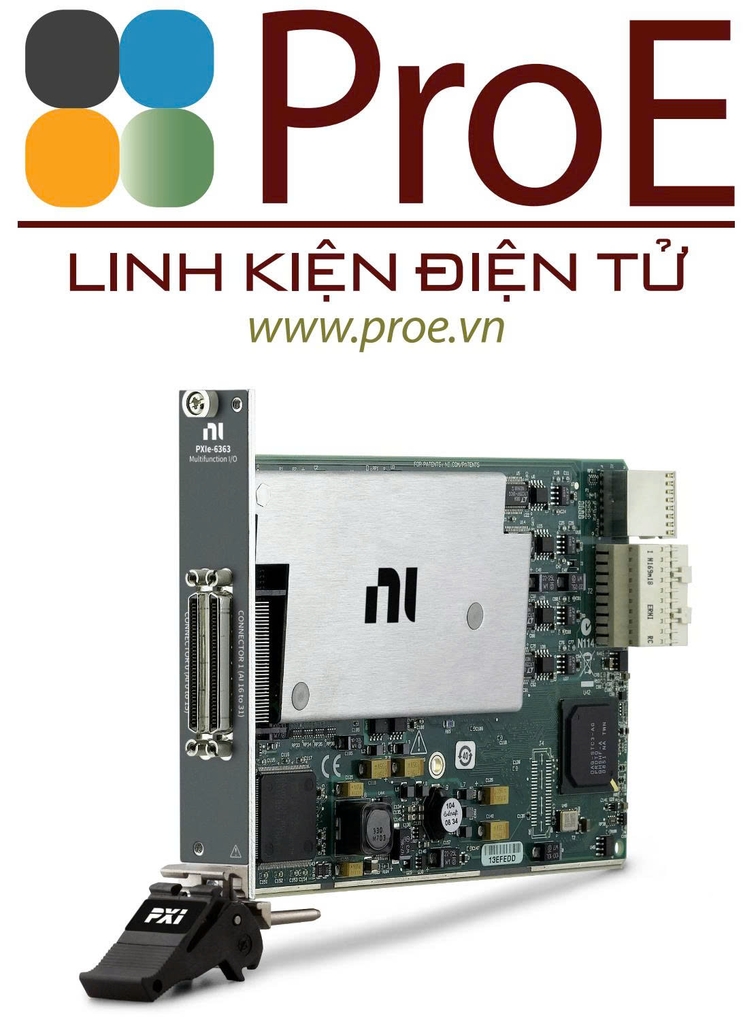

Multifunction I/O Module, PXIe-6363, 2 MSPS, 16 bit, 32 Input, 4 Output, 48 I/O, PXI Controller

PXIe, 32 AI (16-Bit, 2 MS/s), 4 AO, 48 DIO, PXI Multifunction I/O Module

The PXIe6363 offers analog I/O, digital I/O, and four 32bit counter/timers for PWM, encoder, frequency, event counting, and more. The device delivers high-performance functionality leveraging the high-throughput PCI Express bus and multicore-optimized driver and application software. Onboard NISTC3 timing and synchronization technology delivers advanced timing functionality, including independent analog and digital timing engines and retriggerable measurement tasks. The PXIe6363 is well-suited for a broad range of applications, from basic data logging to control and test automation. The included NIDAQmx driver and configuration utility simplify configuration and measurements.

Maximum Number of Single-Ended Analog Input Channels: 32

Analog Input Resolution: 16 bits

Maximum Sample Rate: 2 MS/s

Number of Analog Output Channels: 4

Maximum Update Rate: 2.86 MS/s

Bus Connector: PXI Express

Number of Bidirectional Digital Channels: 48

Electrical Signal Measured: Voltage

Analog Input FIFO Buffer Size: 2047 samples

Maximum Number of Differential Analog Input Channels: 16

Current Flow Direction: -

Simultaneous Sampling: No

Analog Input Absolute Accuracy: 1660 μV

Number of Counters/Timers: 4
