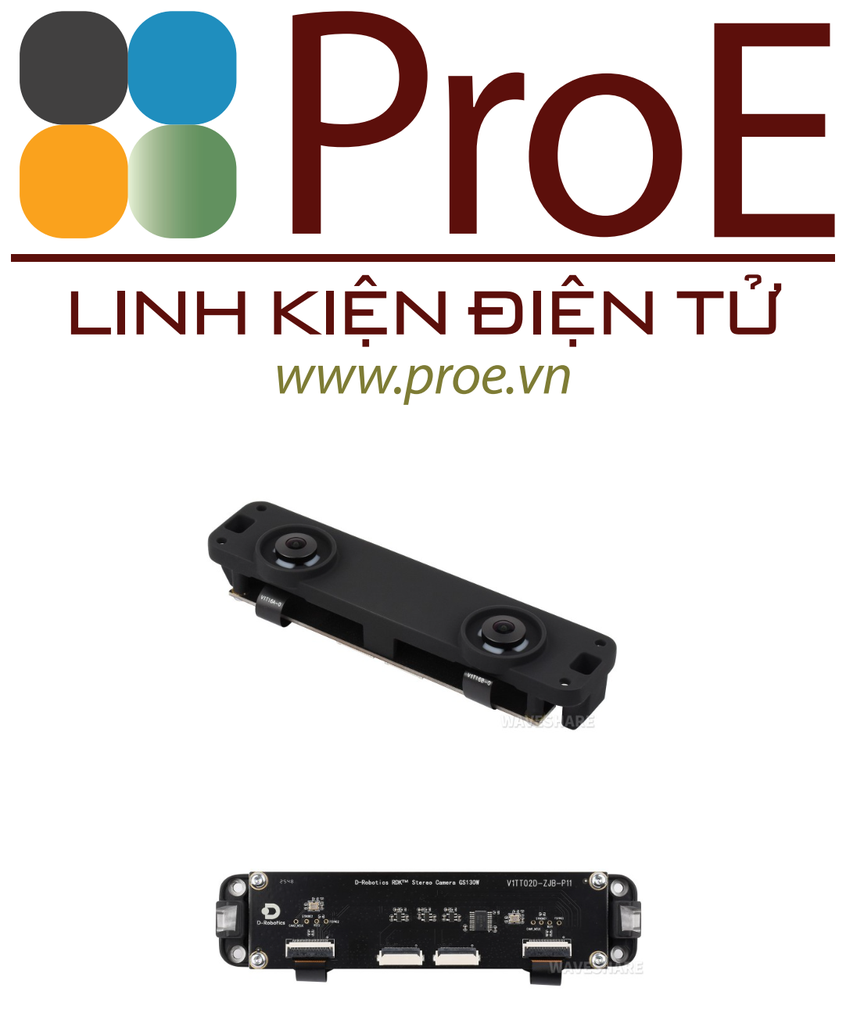

SC132GS Binocular Stereo Camera Module, Global Shutter, 157° DFoV, Dual 1.3MP Cameras, Suitable For RDK X5

SC132GS Binocular Stereo Camera Module, Global Shutter, 157° DFoV, Dual 1.3MP Cameras, Suitable For RDK X5

RDK binocular Stereo camera module

SC132GS | 1.3MP | Hardware Synchronization | 157° DFoV | Global shutter

Features

This product is a stereo depth camera based on the dual SC132GS global shutter sensors with onboard MIPI interfaces, supports synchronized dual exposure and external trigger operation. The module features an 80 mm baseline and delivers a maximum output frame rate of 120 fps. It provides high dynamic range (HDR) performance with a 40 dB SNR, features 1280 × 1080 resolution per channel and enhanced sensitivity in the 850 nm / 940 nm near-infrared (NIR) bands. It is suitable for applications such as robot vision, machine vision inspection, and real-time motion monitoring.

Specifications

Connection example

* for reference only, the RDK X5 is NOT included.

Outline dimensions

Resources & Services

Wiki: https://developer.d-robotics.cc/rdk_doc/en/Robot_development/boxs/spatial/hobot_stereonet

Weight: 0.114 kg

1. RDK Stereo Camera Module GS130W x1
2. 22PIN cable ~100mm x2
