Photon AI Camera Platform for NVIDIA® Jetson™ TX2 NX

• Compatible with Jetson Nano, TX2 NX, and Xavier NX modules
• PoE PD (NGX002) capable, power via separate input or over Ethernet (IEEE 802.3af-2003 and IEEE 802.3at2009 compatible)
• 1 x GbE, 1x NVMe (M.2 M-Key), 1 microSD, 4x GPIO, I2C, USB Console/UART, USB OTG for programming
• DC barrel power input also available

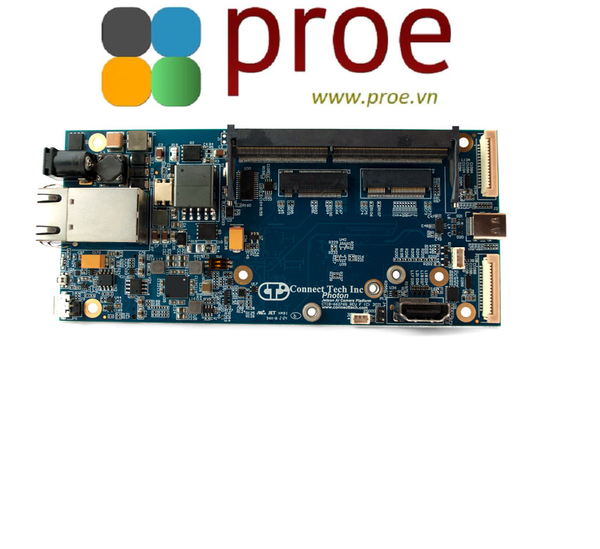

The Photon carrier board is a Jetson™ AI Camera Platform specifically designed to support smart camera applications. This carrier provides PoE PD Gigabit Ethernet uplink for data and power and has various I/O connectors positioned for easy packaging into off the shelf camera housings. Powered by the Jetson TX2 NX module, Photon empowers fast deployment of vision-enabled AI applications requiring multiple camera streams within a compact footprint. Since Photon is compatible with the Jetson Nano, TX2 NX, and Xavier NX modules, users can seamlessly transition between the three SoM options should their AI processing requirements change.

For applications that don’t require PoE PD ask for our lower cost Non-PoE PD options.

While Photon is compatible with NVIDIA Jetson Nano, TX2 NX, and Xavier NX SoMs, some I/O availability will change across modules. View the Photon Compatibility Specifications for a full breakdown.

NOTE: Do not use the 19V power supply from the Jetson Xavier™ NX Dev Kit with the Photon.
