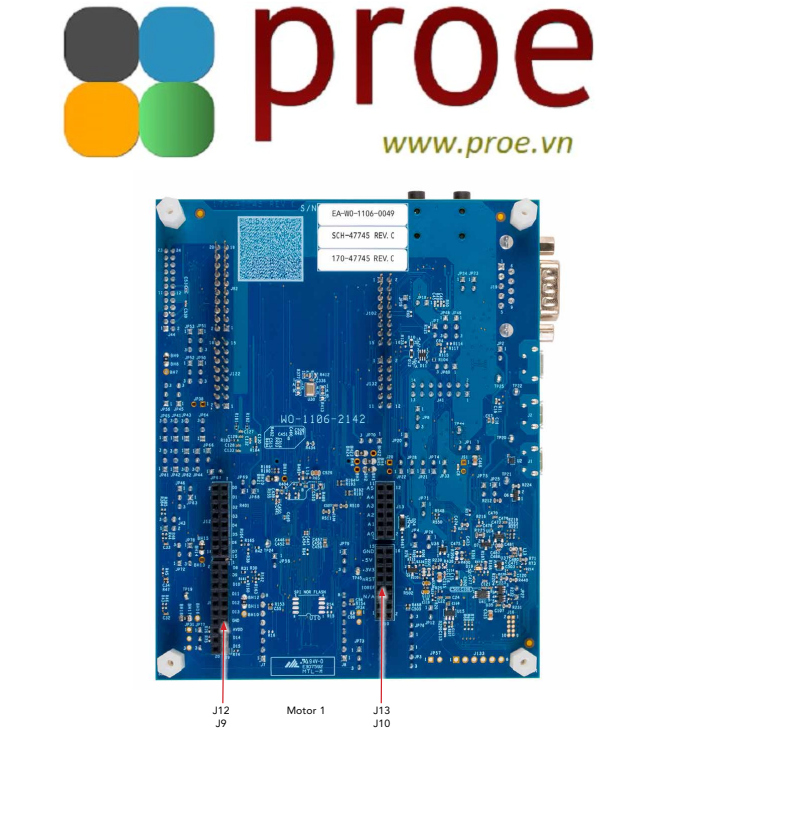

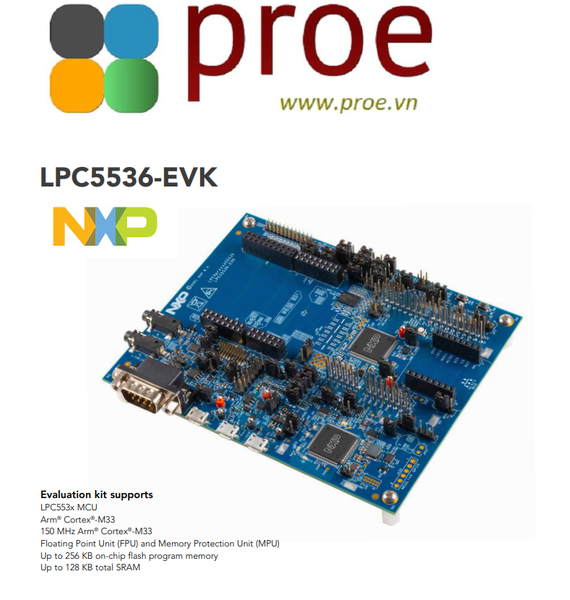

LPC5536-EVK LPCXpresso55S36 Development Board.

  • Mã sản phẩm: LPC5536-EVK
  • Nhà sản xuất: NXP Semiconductors
  • Website hỗ trợ: https://www.proe.vn
3.200.000₫

The LPC5536-EVK development board provides the ideal platform for evaluation of and development with the LPC553x MCU based on the Arm® Cortex®-M33 architecture. The board includes a high-performance on-board debug probe and accelerometer, with several options for adding off-the-shelf add-on boards for networking, sensors, displays and other interfaces.

The LPC5536-EVK is fully supported by the MCUXpresso suite of tools, which provides device drivers, middleware and examples to allow rapid development, plus configuration tools and an optional free IDE. Please refer to the LPCXpresso55S36 when searching for MCUXpresso SDK support for this board. MCUXpresso software is compatible with the open-source MCU operating system FreeRTOS, tools from popular tool vendors such as Arm and IAR and the LPCXpresso55S36 may also be used with the popular debug probes available from SEGGER and P&E Micro.



Product Details

Features

Connectivity

  • I2C, UART and SPI port from LPC55S36, CAN-FD transceiver and D-sub connector compatible with PCAN-USB FD adaptor

Debug Capabilities

  • On-board, high-speed USB, MCU-link debug probe with CMSIS-DAP and SEGGER J-Link protocol options
  • Hardware support for external debug probe or external debug target

Expansion Connectors

  • MikroEletronika Click expansion option
  • LPCXpresso-V3 expansion connectors, compatible with arduino UNO R3
  • PMod compatible expansion / host connector

User Interface

  • RGB user LED, plus reset, ISP, wake and user buttons
