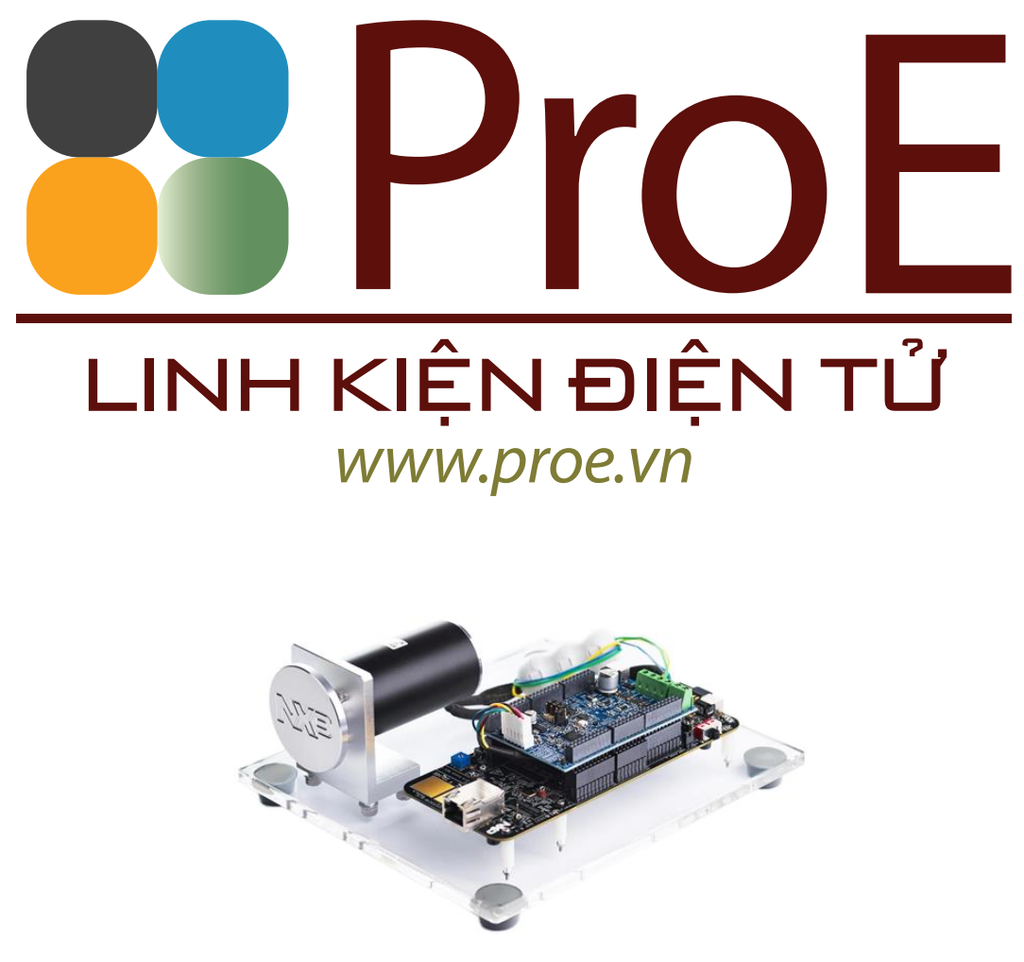

S32K344 BLDC/PMSM Development Kit

More about MCSPTE1AK344

The MCSPTE1AK344 is a development kit engineered for brushless direct current (BLDC) motor control, targeting heating, ventilation and air conditioning (HVAC) or electric pumps, and 3-phase permanent magnet synchronous motor (PMSM) control, targeting active suspension, electric powertrain, eTurbo or belt start generator.

Based on the 32-bit Arm^® Cortex^®-M7 S32K3 microcontroller and the GD3000 pre-driver, the MCSPTE1AK344 enables rapid prototyping and evaluation of BLDC and PMSM control applications without having to wait for the final hardware design.

The MCSPTE1AK344 application software leverages the Automotive Math and Motor Control Library (AMMCLib) set plus Real-Time Drivers (RTD) software package to provide a complete reference implementation for both 3-phase BLDC and PMSM motor control.

The RTD software allows building motor control applications for both AUTOSAR® and non-AUTOSAR environments.

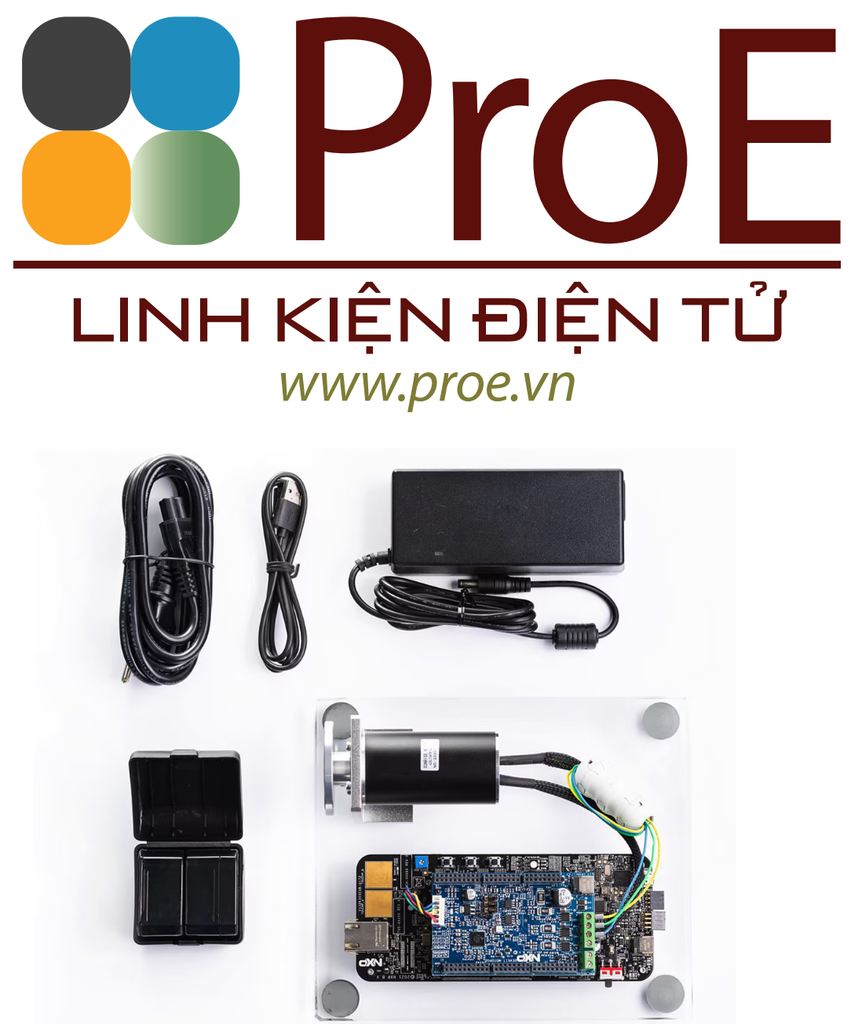

Kit Contains:

• S32K3X4EVB-T172 or S32K3X4EVB-Q172: Evaluation Board
• Motor Control shield for DEVKIT (DEVKIT-MOTORGD) Board
• PM Motor
• USB cable
• Power Supply
