JETSON-IO-BASE-LITE

  • Mã sản phẩm: JETSON-IO-BASE-LITE
  • Nhà sản xuất: Waveshare
  • Website hỗ trợ: https://www.proe.vn
1.800.000₫

Weight: 0.07 kg

JETSON-IO-BASE-LITE

  1. JETSON-IO-BASE-LITE (carrier board)

1

Jetson Nano Development / Expansion Kit Lite Version, Optional Jetson Nano Core Module

JETSON-NANO-LITE-DEV-KIT

Waveshare Jetson Nano Development Kit



Based on Jetson Nano Module (with 16GB eMMC), it provides almost the same size and thickness as N-VIDIA Jetson Nano 2GB Developer Kit. Compared with the JETSON-NANO-DEV-KIT, the peripheral interfaces are less but the performance of the core module remains the same, which is suitable for the scenarios that require less interfaces, more cost-effective.

Comparing The Appearance

JETSON-NANO-DEV-KIT



JETSON-NANO-LITE-DEV-KIT
Compatible with Jetson Nano 2GB Developer Kit case

Carrier Board Comparison



MODEL
JETSON-IO-BASE-A

JETSON-IO-BASE-LITE
USB PORT 4 × USB 3.2 Gen 1 Type A
1 × USB 2.0 Micro-B
1 × USB 3.2 Gen 1 Type A
2 × USB 2.0 Type A
1 × USB 2.0 Micro-B
GIGABIT ETHERNET PORT
HDMI PORT
DP PORT -
CSI CONNECTOR × 2 × 1
POWER PORT DC USB Type-C
BUTTON - Power: PWR BTN
Reset: SYS RST

Specification

GPU 128-core Maxwell
CPU Quad-core ARM A57 @ 1.43 GHz
MEMORY 4 GB 64-bit LPDDR4 25.6 GB/s
STORAGE 16GB eMMC + 64GB TF Card
VIDEO ENCODER 250 MP/s
1x 4K @ 30 [HEVC]
2x 1080p @ 60 [HEVC]
4x 1080p @ 30 [HEVC]
VIDEO DECODER 500 MP/s
1x 4K @ 60 [HEVC]
2x 4K @ 30 [HEVC]
4x 1080p @ 60 [HEVC]
8x 1080p @ 30 [HEVC]
CAMERA 1x MIPI CSI-2 D-PHY lanes
CONNECTIVITY Gigabit Ethernet, M.2 Key E expansion connector
DISPLAY HDMI
USB 1 × USB 3.2 Gen 1 Type A, 2 × USB 2.0 Type A,
1 × USB 2.0 Micro-B
EXTENSION INTERFACES GPIO, I2C, I2S, SPI, UART
DIMENSIONS 100 × 80 × 29mm



Compatible With Jetson Nano Module

Connect To CSI Camera

Supports CSI Camera For AI Applications Such As Face Recognition, Road Sign Recognition And License Plate Recognition

4K High Definition Output

Support HDMI High-Definition Port

3× USB Ports

1× USB 3.2 Gen 1 + 2× USB 2.0

USB 3.2 Gen 1 Port For High Speed Data Transmission



Color-Coded 40PIN GPIO Header

Color-Coded Header Pins With Clear Labels, Handy For Use

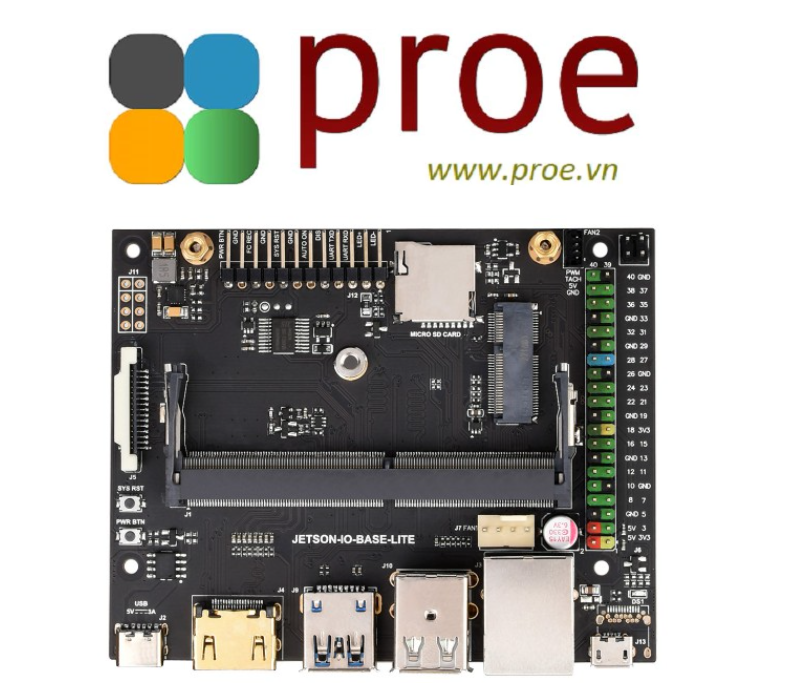

Introduction

  1. Core module socket
  2. TF card slot
  3. M.2 Key E connector
  4. 1.25mm Fan header
  5. PoE pins
    PoE module is not included
  6. 40PIN GPIO header
  7. 2.54mm Fan header
  8. Micro USB port
    for USB data transmission
  9. Gigabit Ethernet port
    10/100/1000Base-T auto-negotiation, supports PoE if external PoE module is connected



  1. 2× USB 2.0 port
  2. 1× USB 3.2 Gen 1 port
  3. HDMI port
  4. USB Type-C
    for 5V 3A power input
  5. PWR BTN
    Power Button
  6. SYS RST
    Reset button
  7. MIPI CSI camera connector

Outline Dimensions

Ordering Options

JETSON-IO-BASE-LITE
The carrier board ONLY, compatible with Jetson Nano Module



JETSON-NANO-LITE-DEV-KIT
The carrier board, along with Jetson Nano module, 64GB TF card, card reader and official heatsink

More Available Kits

KIT A B C
JETSON-NANO-LITE-DEV-KIT
Necessary accessories
(USB cable, cooling fan, ~1.5m Ethernet cable, 5V 4A power supply)
AC8265 dual-mode NIC
IMX219-77 Camera
7inch HDMI LCD (H)

JETSON-NANO-LITE-DEV-KIT-A: wireless NIC kit
With drive-free 5G (867 Mbps) / 2.4 G (300 Mbps) wireless NIC, it supports Bluetooth and WiFi dual modes, and 6DB high-gain dual antennas effectively improve penetration, and make data transmission wider and smoother, which is suitable for mobile networking scenarios.



JETSON-NANO-LITE-DEV-KIT-B: single camera vision kit
If you want to play AI intelligent applications such as face recognition, road sign recognition and license plate recognition, this package is very suitable for you. With an 8 megapixel (3280 x 2464) high-definition camera, it can be used easily in various application scenarios.



JETSON-NANO-LITE-DEV-KIT-C: touch display kit
If the single camera vision package can't meet the requirements, this package with 7-inch IPS touch screen is undoubtedly a better choice. The 1024 x 600 pixel screen can display the images taken by the camera in real time. If you are a beginner, you can also benefit from the graphical operating system, killing two birds with one stone.

Resources & Services

Wiki: www.waveshare.com/wiki/JETSON-NANO-LITE-DEV-KIT
