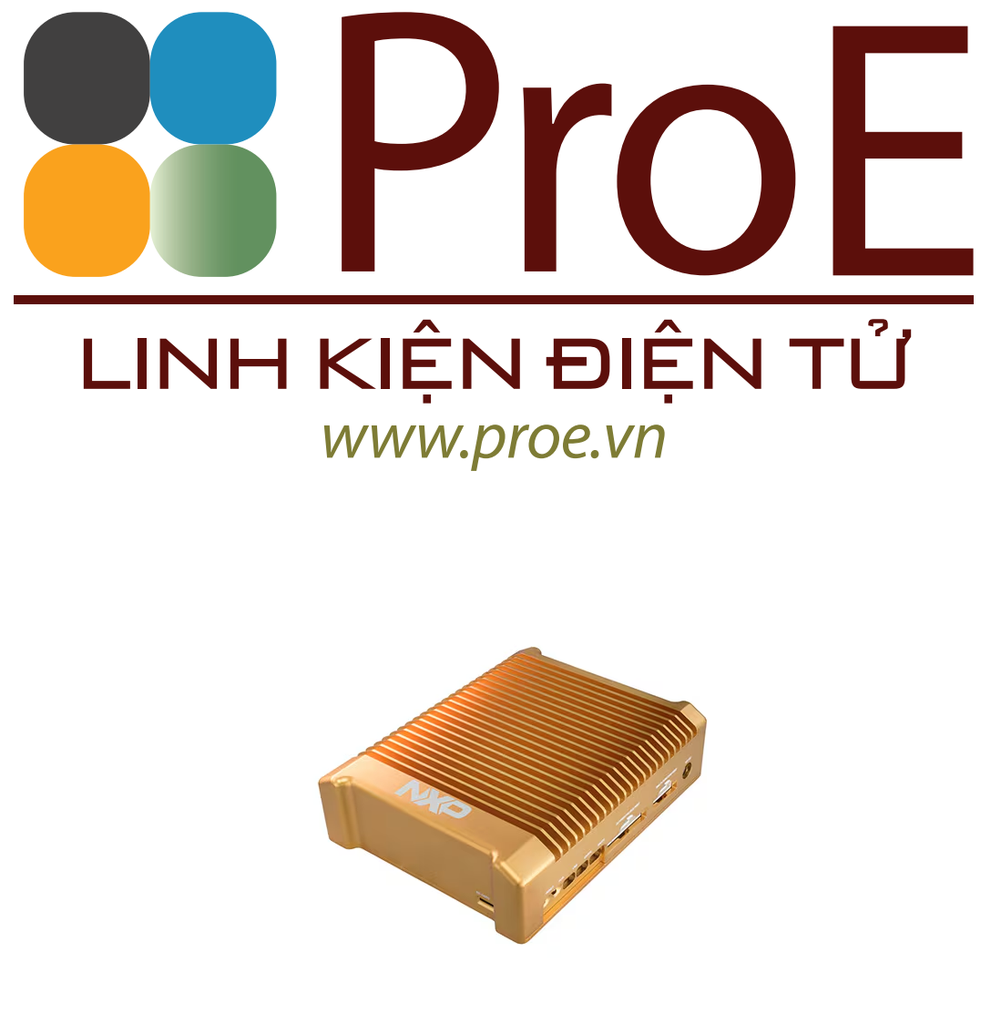

GoldBox 3 Vehicle Networking Development Platform

The NXP GoldBox 3 is a compact, highly optimized and integrated reference design engineered for vehicle computer, service-oriented gateway (SoG), domain control applications, high-performance processing, safety and security applications.

The NXP GoldBox 3 highlights the S32G3 network processor by offering high-performance computing capacity, real-time network performance, multi-Gigabit packet acceleration and security and rich input/output (I/O) targeting central gateway, domain controller, firmware over-the-air (FOTA), secure key management, smart antenna and high-performance central compute nodes.

Based on the S32G-VNP-RDB3, the GoldBox 3 is an excellent form-factor for customer or project demonstrations and evaluations, as well as in-vehicle testing and rapid prototyping.

Features

Hardware Features

• Supports service-oriented gateway and domain controller applications
• Multiple network interfaces, featuring 18 CAN/CAN FD and 12 Ethernet ports
• Supports low-power mode and multiple wake-up sources
• Supports two M.2 modules (M-key slot, E-key slot)

Power Supply

• 12V AC-DC adapter

Interfaces

• LIN, CAN/CAN FD, 100BASE-T1, 1000BASE-T / 2.5GBASE-T, 100BASE-TX, 1000BASE-T, FlexRay, USB, PCIe, JTAG, UART, AURORA, M.2 slots

Safety

• ISO 26262 support by using safety components and architecture

Supported Devices

Interfaces

Automotive Ethernet Switches and Network Controllers

• SJA1110: Multi-Gig Safe and Secure TSN Ethernet Switch with Integrated 100BASE-T1 PHYs

Automotive LIN Solutions

• TJA1021: ISO17987 LIN 2.1/SAE J2602 Transceiver

3.3 V / 5 V IO CAN Transceivers

• TJA1043: High-Speed CAN Transceiver with Standby and Sleep Mode

CAN Signal Improvement

• TJA1463: CAN Signal Improvement Capability Transceiver with Sleep Mode

Secure CAN Transceivers

• TJA1153: Secure HS-CAN Transceiver with Sleep Mode

Power Management

12 V, 24 V, and 48 V SBC Solutions

• VR5510: Multi-Channel (9) PMIC for S32G Processor – 8 High Power, 1 Low Power, Fit for ASIL D Safety Level

5 V PMIC Solutions

• PF53: 12 A / 8 A / 15 A Core Supply Regulator with AVP and Watchdog

Processors and Microcontrollers

S32G Vehicle Network Processors

• S32G3: S32G3 Processors for Vehicle Networking
