CM4-NAS-Double-Deck

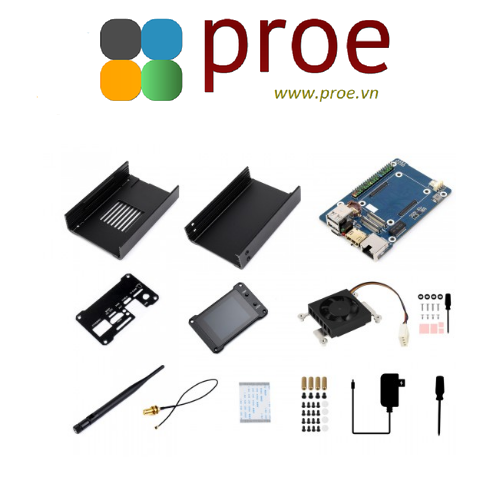

PACKAGE CONTENT

CM4-NAS-Double-Deck

1. Aluminum alloy case (2inch LCD included) x1
2. CM4-NAS-Double-Deck x1
3. CM4-FAN-3007 (fan screwpack and screwdriver included) x1
4. Antenna x1
5. IPEX to SMA cable ~20cm x1
6. FPC 50PIN cable ~4cm x1
7. Screws pack x1
8. OPTIONS 5V 3A Type C power supply x1
9. Screwdriver x1

DESCRIPTION

Network Attached Storage(NAS) All-In-One Mini-Computer For Raspberry Pi Compute Module 4, Personal Network Storage Server, Optional For CM4 Module

NAS Mini-Computer For CM4

Designed For Raspberry Pi Compute Module 4
Personal Network Storage Server

Features At A Glance

• All-in-one Mini-Computer, mainly designed for home or small home office, but not limited to the above applications
• Out of the box, no expert knowledge of networking and storage systems required
• Built-in 2x SATA slots for installing 2.5-inch Solid State Drives
• 2-inch SPI LCD screen for real-time monitoring the working status of CM4: CPU, RAM, system disk usage, network speed and temperature, etc.
• Easy to use, convenient to online access the documents, videos, and music at any time

Specifications

* the CM4104008 or CM4102032 is optional. You can choose and purchase other variants of Compute Module 4 according to your needs

Built-In Dual Hard Drive Slots
Support Large Capacity HDD Storage

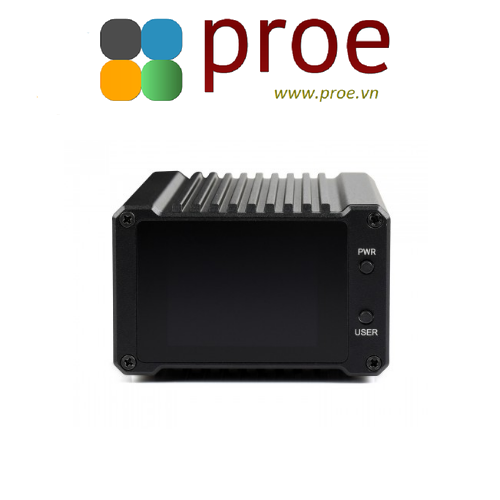

Comes With SPI 2inch LCD Display

For Monitoring The Working Status Of CM4 In Real-Time

Rich Interfaces

Aluminum Alloy Case Design

Alloy Case For Large Area Heat Dissipation, With Fan Vents And Nonskid Feet At The Bottom, Better Heat Dissipation And More Stable Placement

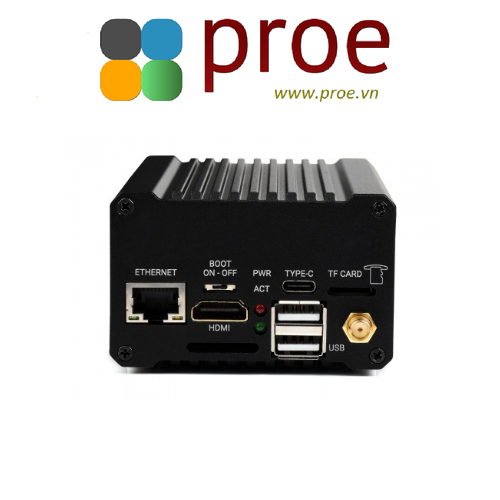

Precise Cut-Out With Clear Label

Each Cut-Out Is Completely Aligned With The Connector

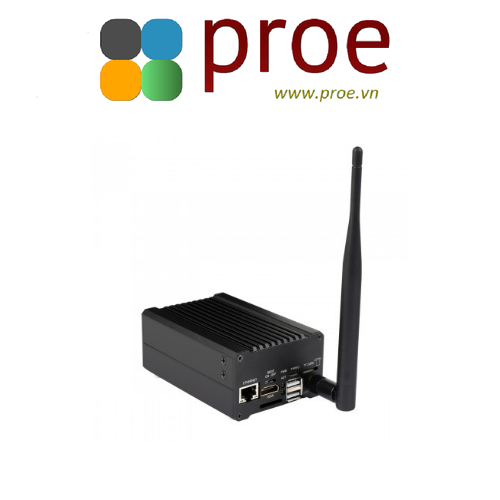

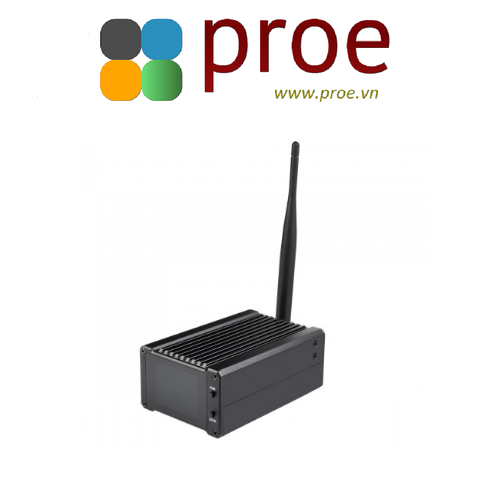

Product Show

Dimensions

Resources & Services

WIKI: www.waveshare.com/wiki/CM4-NAS-Double-Deck
