Raspberry Pi Zero 2W To CM3 Adapter, Alternative Solution for Raspberry Pi CM3 / CM3+

PACKAGE CONTENT

Weight: 0.016 kg

1. Zero-to-CM3-Adapter x1
2. MINI HDMI Adapter x1
3. FFC cable x1
4. Screws pack x1

1

2

3

4

Raspberry Pi Zero 2W To CM3 Adapter, Alternative Solution For Raspberry Pi CM3 / CM3+

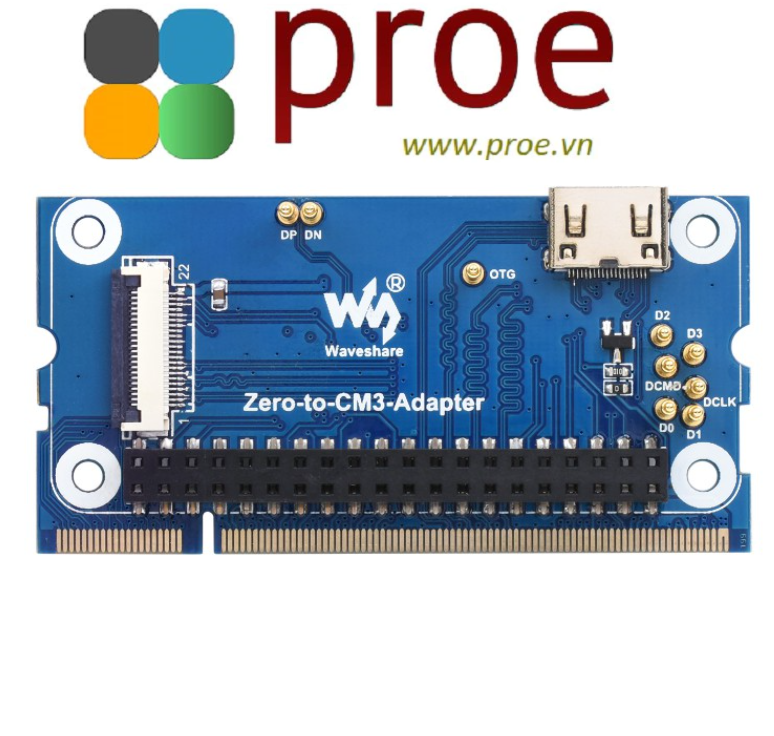

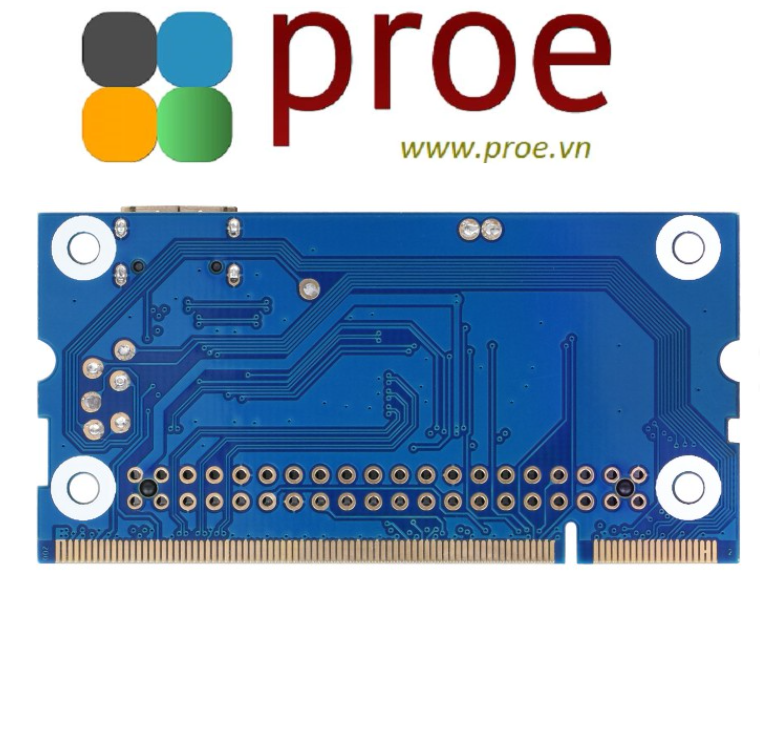

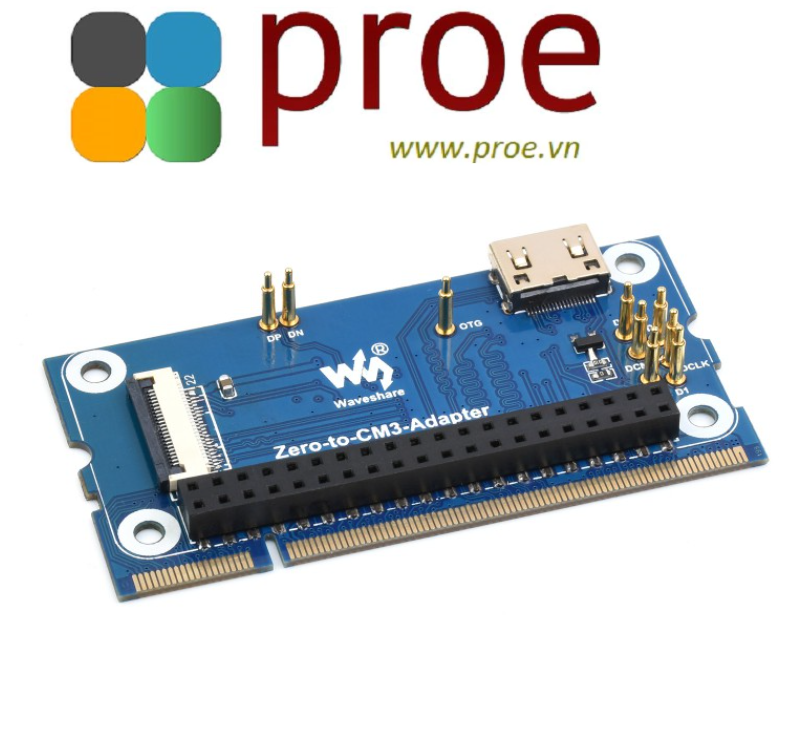

Raspberry Pi Zero 2W To CM3 Adapter

Alternative Solution for Raspberry Pi CM3 / CM3+

Features At A Glance

• Using 40pin GPIO and pogo pin connection, the Zero 2W can be easily attached
• Onboard standard CM3 SODIMM, easily connected to the original CM3 ecosystem HATs
• Adapting USB, micro SD and OTG via pogo pins
• Adapting CSI connector via FPC
• Adapting HDMI via MINI HDMI adapter
• Adapting GPIO via female pin header
• Not compatible with the first generation Zero

Based On Raspberry Pi 2W

Use Zero 2W To Replace CM3 Series, Solve The Short Supply Problem Of CM3

for reference only, Pi Zero 2W is NOT included

Easy To Install

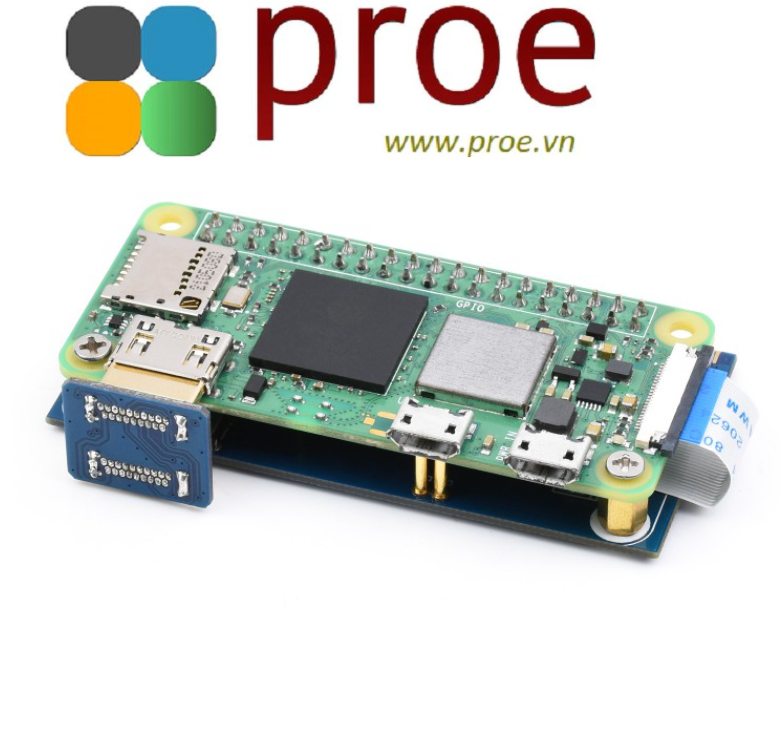

Using 40 PIN GPIO And Pogo Pin Connection, The Zero 2W Can Be Easily Attached

If you do not need the HDMI port, you can leave the MINI HDMI adapter unconnected to reduce the overall size.

Interface Introduction

Compatible With CM3 / CM3+ Series HATs

Easy Access To CM3 / CM3+ Series HATs Or Other Development Projects

for reference only, Compute Module PoE Board and Pi Zero 2W is NOT included.

Outline Dimensions

Resources & Services

Wiki: www.waveshare.com/wiki/Zero-to-CM3-Adapter
