Nano Base Board (A) for Raspberry Pi Compute Module 4, Same Size as the CM4

PACKAGE CONTENT

Weight: 0.014 kg

1. CM4-NANO-A x1
2. 2*20PIN color straight pin x1

1

2

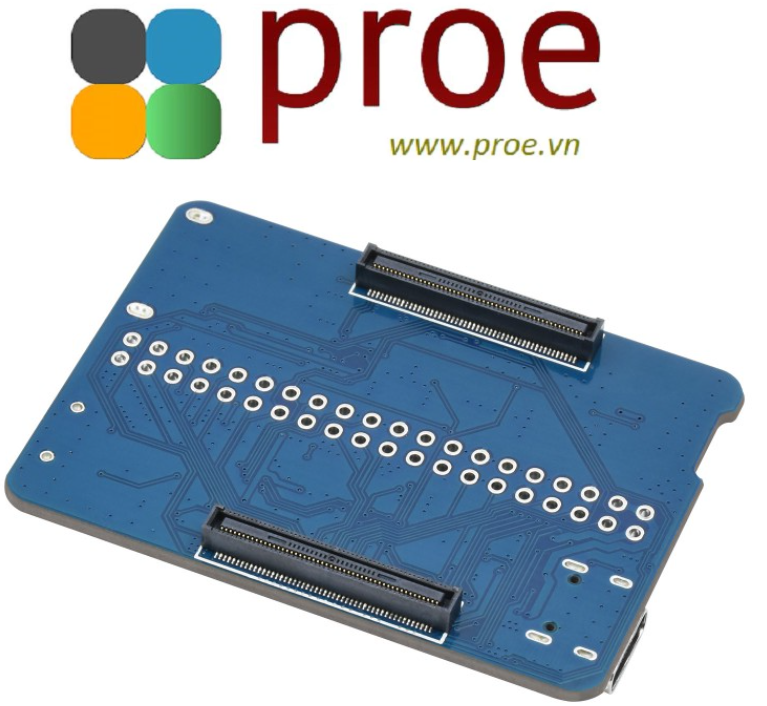

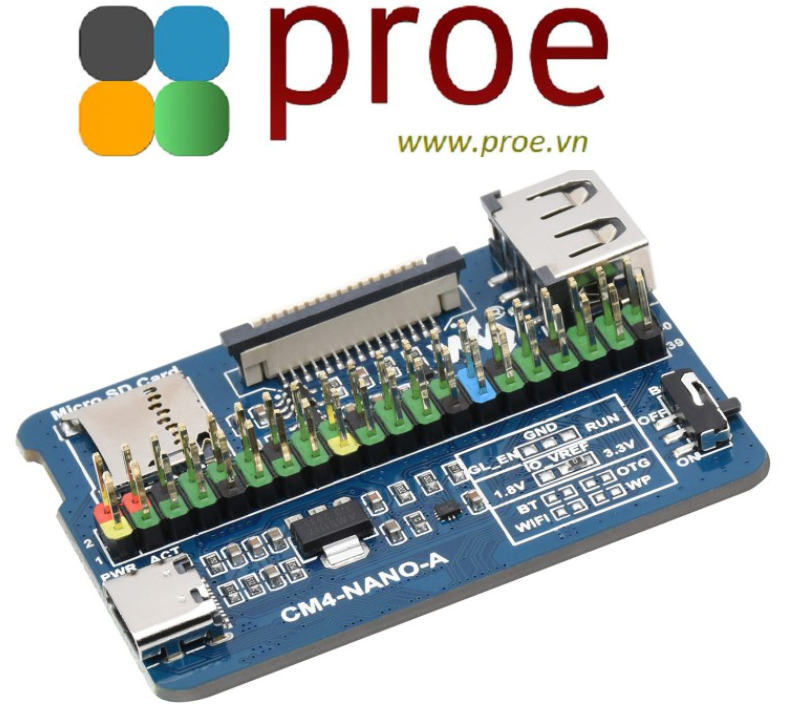

Nano Base Board (A) For Raspberry Pi Compute Module 4, Same Size As The CM4

Nano Base Board For Compute Module 4

Suitable For Evaluating The Raspberry Pi CM4 Or Being Integrated Into End Products

Base Board for Compute Module 4 Lite/eMMC

Same Size As The CM4

Standard CM4 Socket, With Multiple Peripheral Interfaces, Suitable For Narrow Application Environment

Note: the CM4 is NOT included. Please buy it separately if necessary.

Specifications

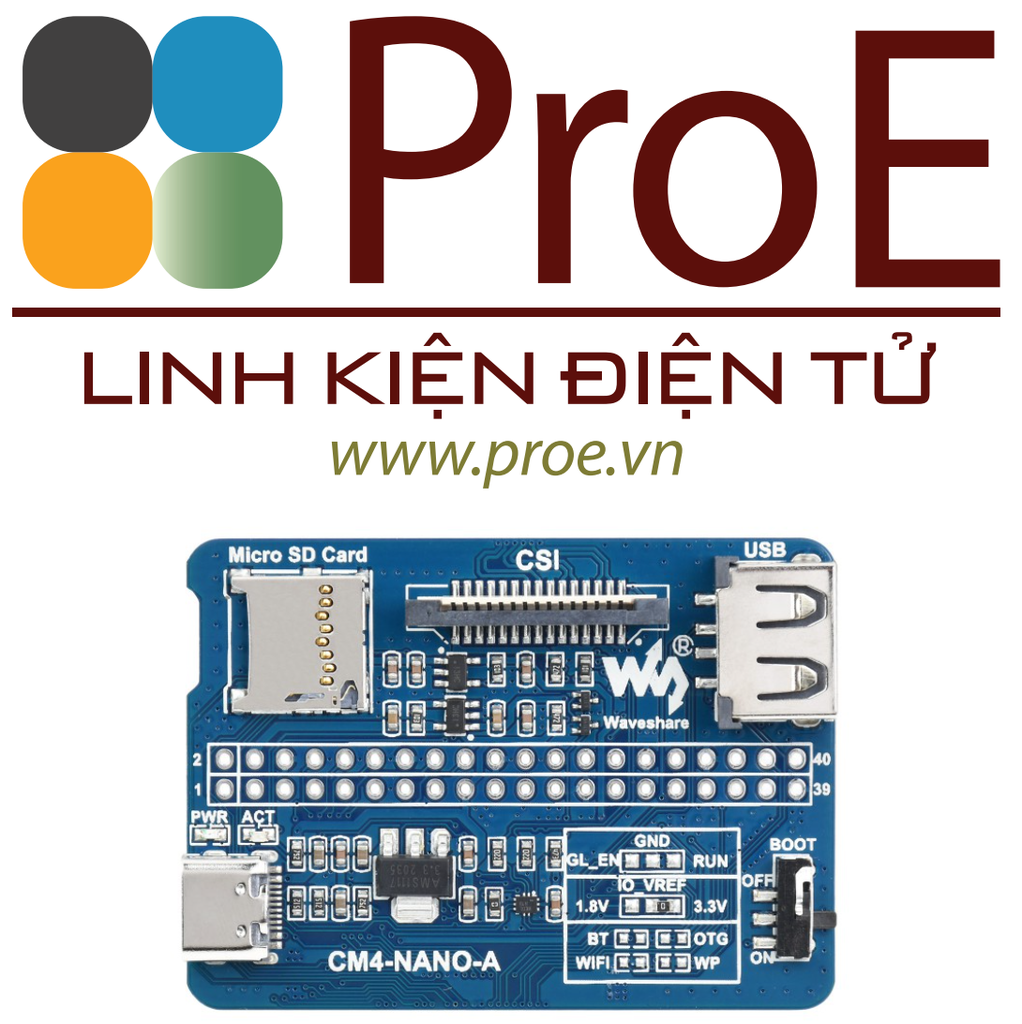

What's On Board

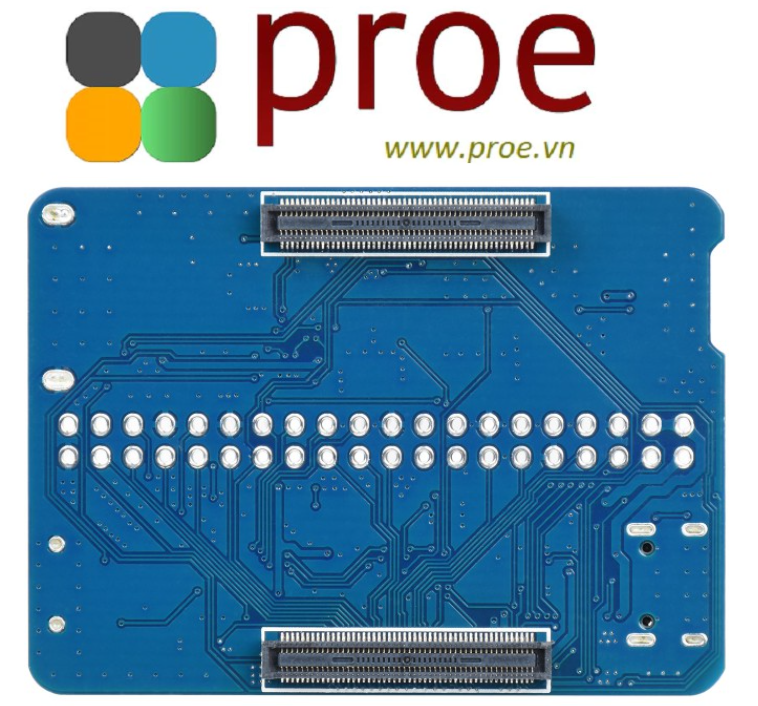

1. CM4 socket
   suitable for all variants of Compute Module 4
2. Power supply / Programming
   5V power supply, or used for eMMC burning
3. Micro SD card slot
   for connecting a Micro SD card with pre-burnt image (Lite variant ONLY)

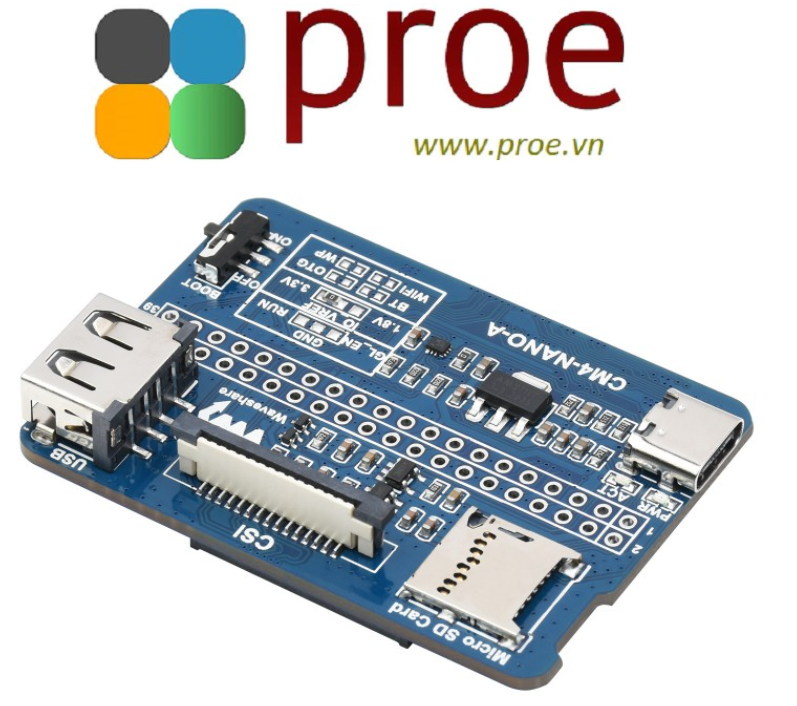

4. CSI interface
   1 × MIPI CSI camera interface
5. USB2.0 interface
   for connecting sorts of USB devices

6. 40PIN GPIO interface
   suitable for connecting to various HAT modules
7. PWR indicator
   CM4 power status
8. ACT indicator
   CM4 working status
9. AMS1117-3.3
10. BOOT button
    ON: Switch USB to Type C interface, will enter download mode when powered on (configured as a large-capacity disk through RPI boot)
    OFF: Switch USB to Type A interface, will not enter download mode when powered on (booted from eMMC or Micro SD card)

Outline Dimensions

Resources & Services

WIKI: CM4-NANO-A
