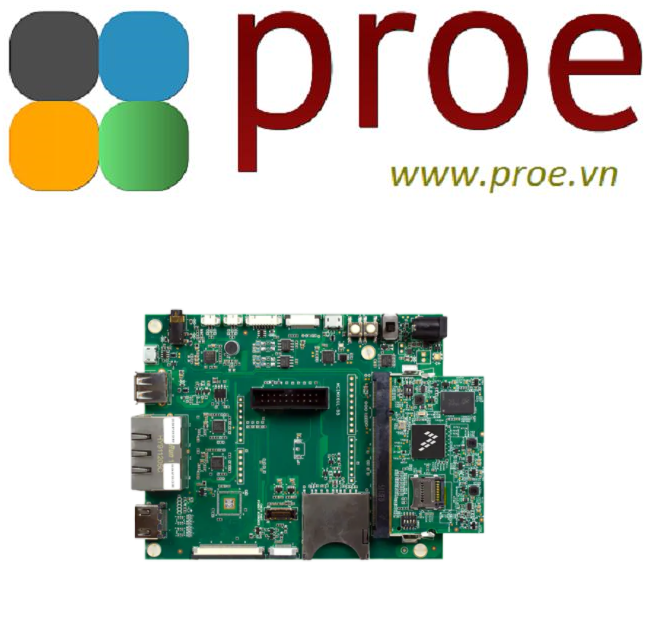

MCIMX6UL-EVKB

  • Mã sản phẩm: MCIMX6UL-EVKB
  • Nhà sản xuất: NXP Semiconductors
  • Website hỗ trợ: https://www.proe.vn
5.200.000₫

i.MX6UL Application Processor and SOC Evaluation Kit 400MHz/696MHz CPU 512MB RAM 256MB SPI Flash Linux

Product Technical Specifications

EU RoHS Compliant
ECCN (US) 5A992
Part Status Active
HTS 8472.30.11.80
Type Evaluation Kit
Supported Device i.MX6UL
Supported Device Technology Application Processor and SOC
RAM Size 512MB
Program Memory Size 256MB
Program Memory Type SPI Flash
USB 2
Ethernet 2
CAN 2
SPI 1
UART 1
Display Interface HDMI
Display Type LCD
Operating Systems Linux
PC Card Interface micro SD
JTAG Support Yes
Audio Interfaces Yes
Main Program Memory Type Flash
Linux Linux
Daughter Cards Yes

Technical and Functional Specifications

Processor i.MX 6UltraLite 696 MHz Arm® Cortex®-A7 core
  Discretes
Memory
  • 4 Gb DDR3L SDRAM, 400 MHz
  • 256 MB Quad SPI Flash
  • MicroSD connector
  • Footprint for eMMC
  • Footprint for NAND Flash
Size 2.66 inch x 1.27 inch (6.76 cm x 4.24 cm), 4-layer board
Display board interface
  • LCD expansion port connector
  • HDMI connector and footprint for HDMI transmitter
Audio
  • Audio codec
  • 3.5 mm Stereo Headphone output
  • Mono-Microphone input on board
  • Left and Right Speaker Out connectors
Connectivity
  • One USB 2.0 Micro-B OTG connectors
  • One USB 2.0 Standard-A host connectors
  • Two Ethernet (10/100T) connectors
  • Dual CAN connector
  • SD/SDIO connector
Camera Parallel camera connector
Sensors
  • NXP® MAG3110 eCOMPASS
  • NXP FXLS8471Q accelerometer
  • Footprint for gyroscope
Debug
  • 20-pin standard JTAG connector
  • UART to Micro USB connector
Expansion port Arduino® header
Size 5.12 inch x 4.25 inch (13.0 cm x 10.8 cm), 4-layer board
