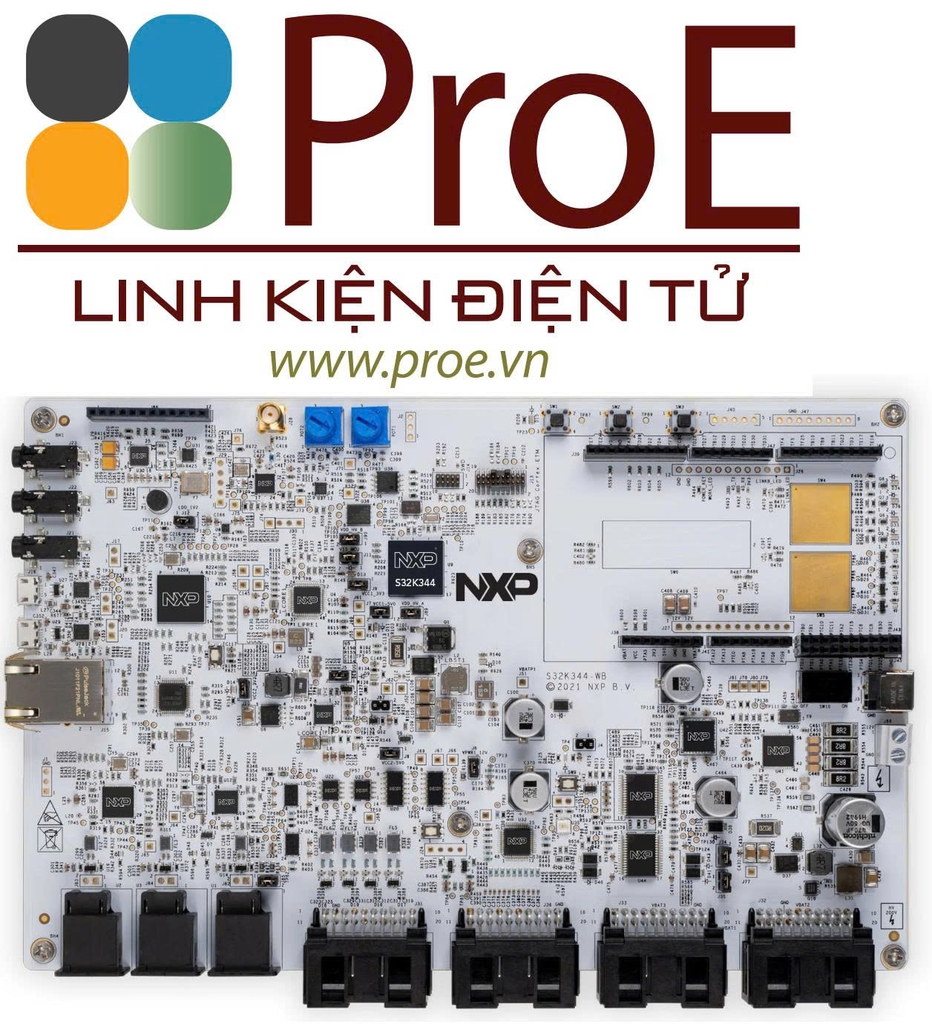

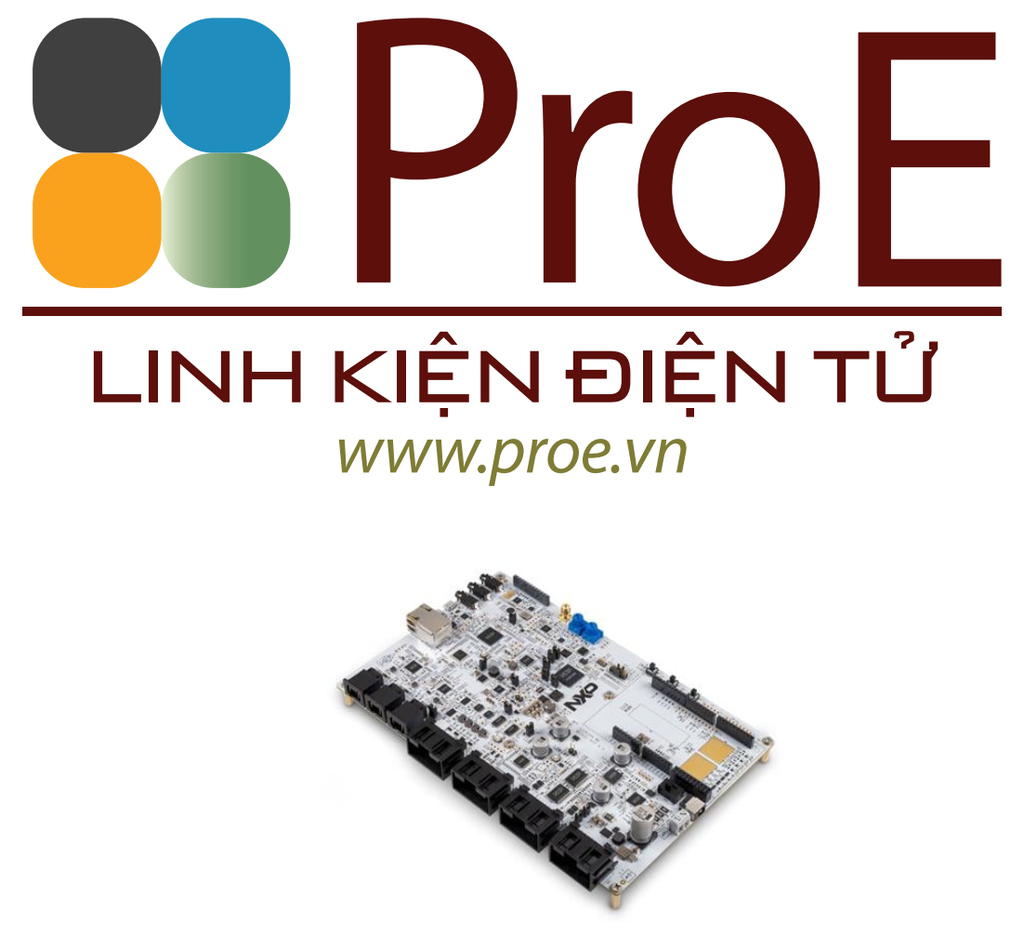

S32K344-WB Evaluation Board for Automotive General Purpose

he S32K344-WB is an evaluation board for general-purpose automotive and industrial applications.

Based on the 32-bit Arm®, Cortex®-M7 S32K344 offers dual cores configured in lockstep mode in a BGA 257 package. S32K344-WB supports a wide range of ASIL D safety hardware and peripherals, including the FS26 safety system basis chip, SJA1105 Ethernet switch and 100BASE-T1 for AVB demo and message routing. The NCK2910 RF receiver and NJJ29C2 LF driver are intended to use for the development of passive entry passive start (PEPS) keyless applications.

Due to its high component integration, a number of CAN and LIN interfaces, power switches and audio interface, the S32K344-WB is an excellent choice for the development of zonal aggregator and domain control type of applications.

Kit Contains:

• S32K344-WB evaluation board
• ECU cables x2
• MicroUSB cable
