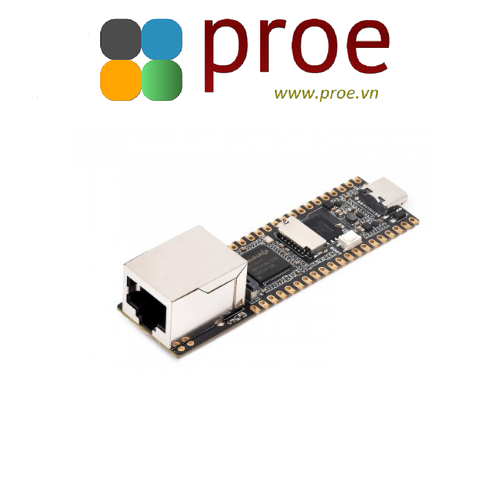

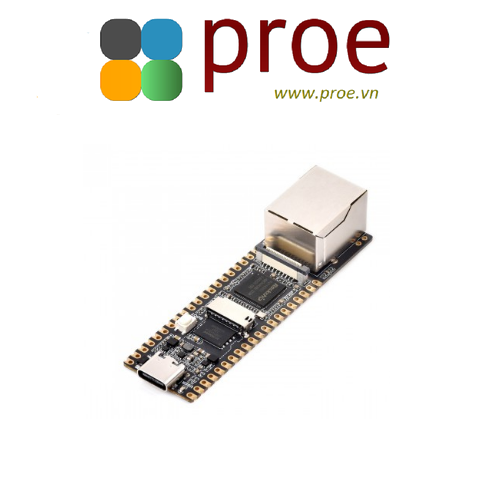

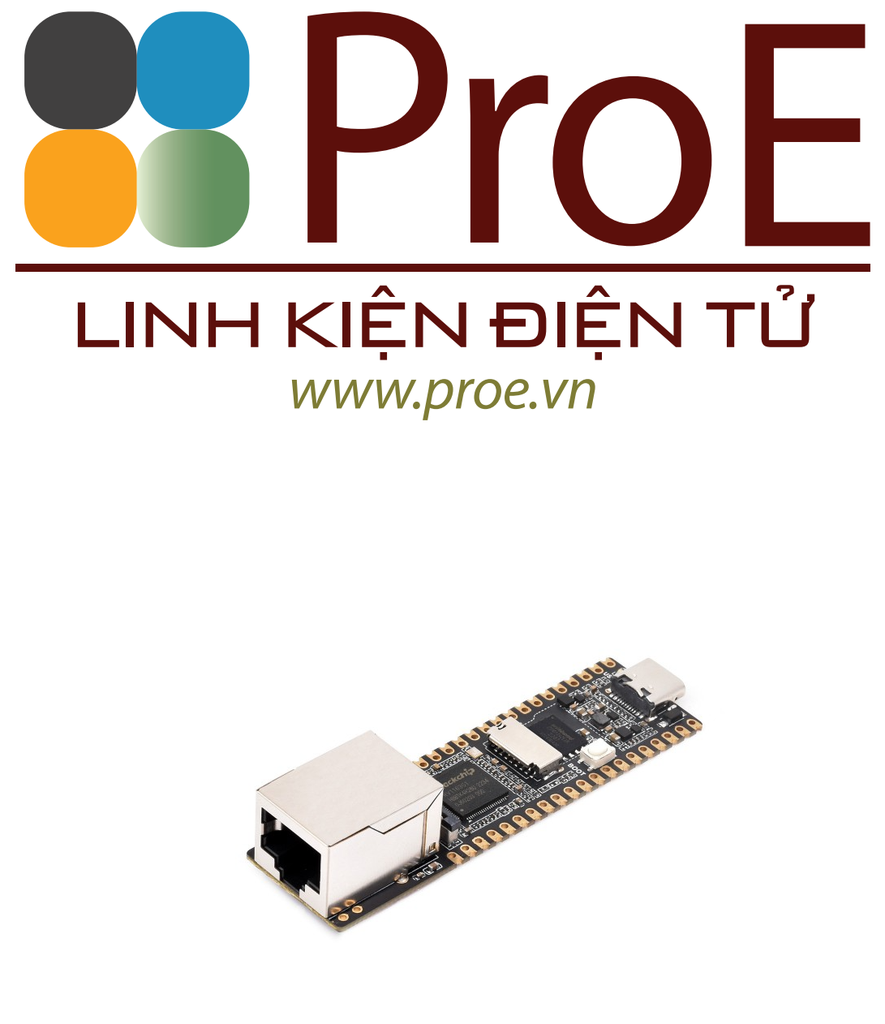

LuckFox Pico Plus RV1103 Linux Micro Development Board, Integrates ARM Cortex-A7/RISC-V MCU/NPU/ISP Processors, With Ethernet Port

PACEKAGE CONTENT

Luckfox Pico Plus

Luckfox Pico Plus x1

Luckfox Pico Plus M

Luckfox Pico Plus with pre-soldered header x1

DESCRIPTION

LuckFox Pico Plus RV1103 Linux Micro Development Board, Integrates ARM Cortex-A7/RISC-V MCU/NPU/ISP Processors, With Ethernet Port

Specifications

Pinheader Options

Highly Integrated And Powerful Performance

Integrates CPU, NPU, ISP And Other Processors

• Single-core ARM Cortex-A7 32-bit core with integrated NEON and FPU
• Built-in Rockchip self-developed 4th generation NPU, features high computing precision and supports int4, int8, and int16 hybrid quantization. The computing power of int8 is 0.5 TOPS, and up to 1.0 TOPS with int4
• Built-in self-developed third-generation ISP3.2, supports 4-Megapixel, with multiple image enhancement and correction algorithms such as HDR, WDR, multi-level noise reduction, etc.
• Features powerful encoding performance, supports intelligent encoding mode and adaptive stream saving according to the scene, saves more than 50% bit rate of the conventional CBR mode so that the images from camera are high-definition with smaller size, double the storage space
• Built-in RISC-V MCU supports low power consumption and fast start-up, supports 250ms fast picture capture and loading AI model library at the same time to realize face recognition "in one second"
• Built-in 16-bit DRAM DDR2, which is capable of sustaining demanding memory bandwidths
• Integrated with built-in POR, audio codec and MAC PHY

Easier To Develop

Integrates TF Card Slot, Camera Interface And Ethernet Port

SLC NAND FLASH

For A Better User Experience

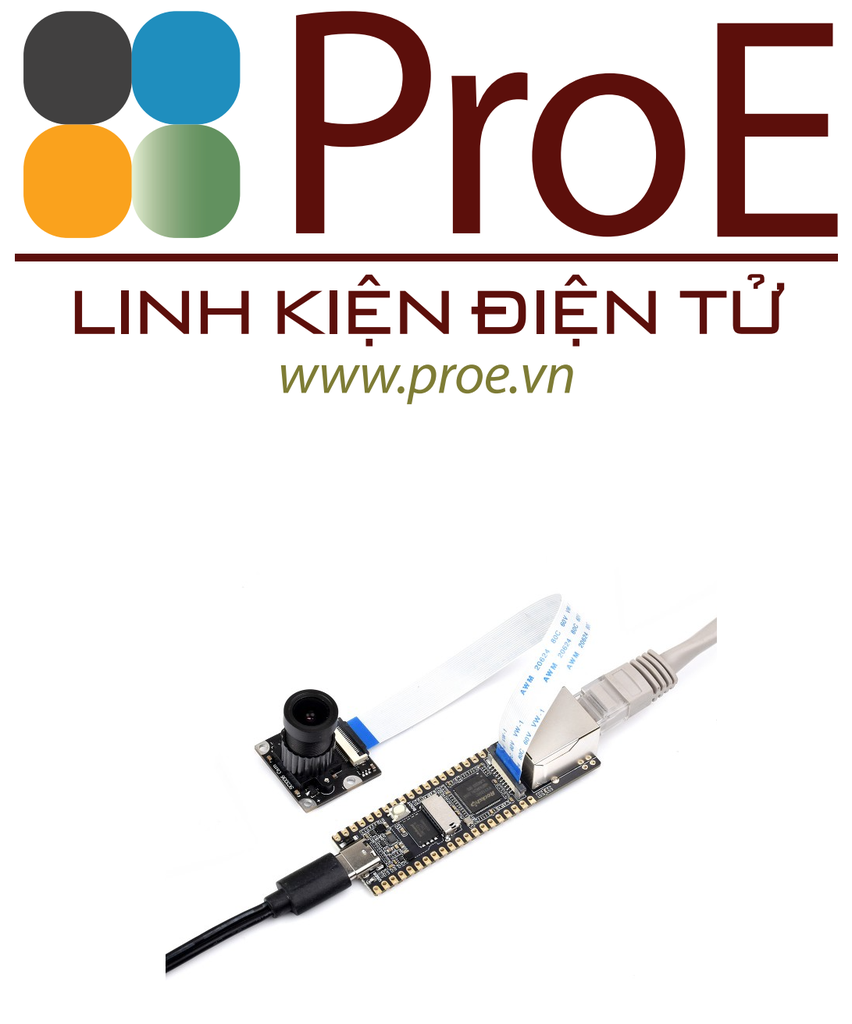

Application Example

Suitable For More Application Examples

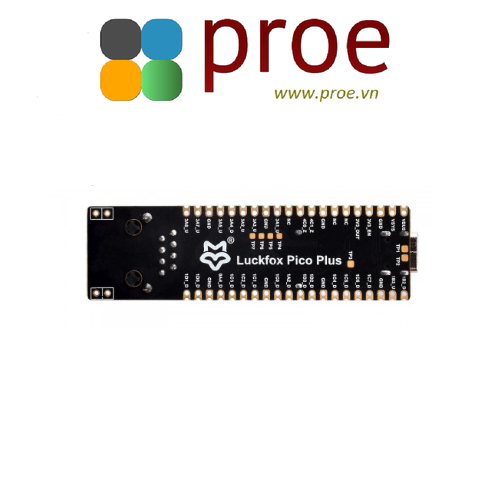

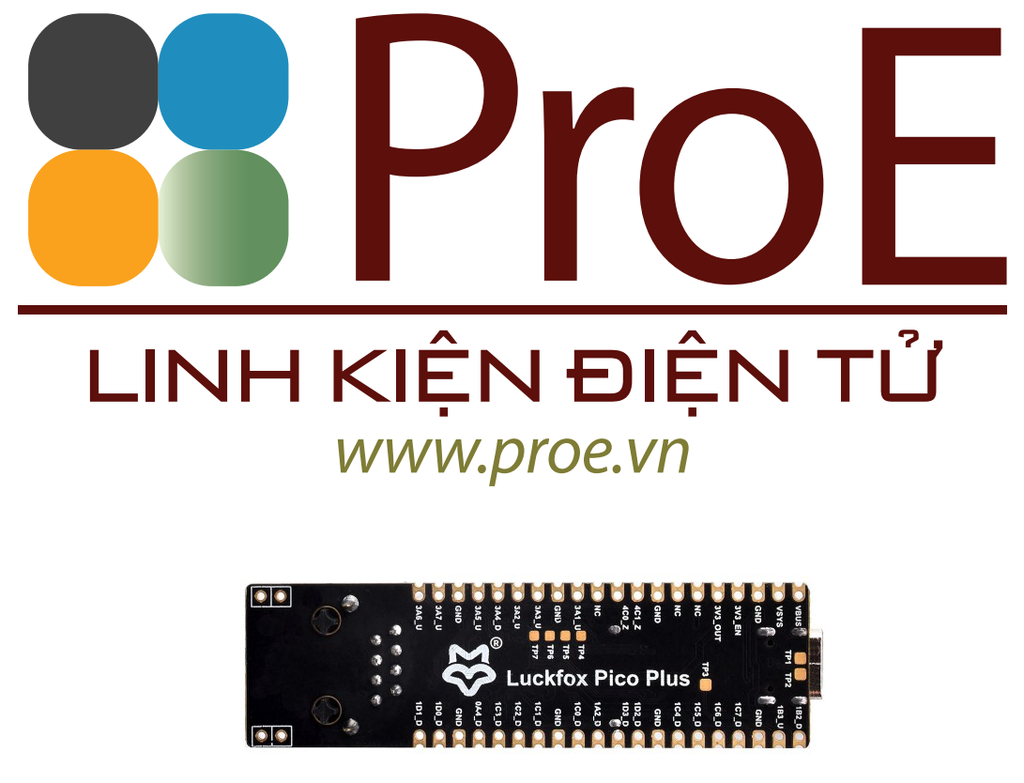

Pin Definition

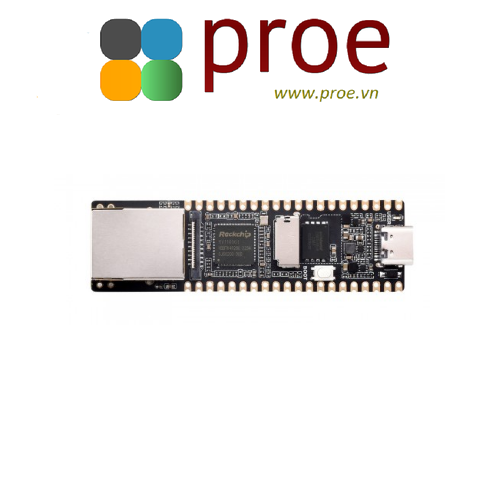

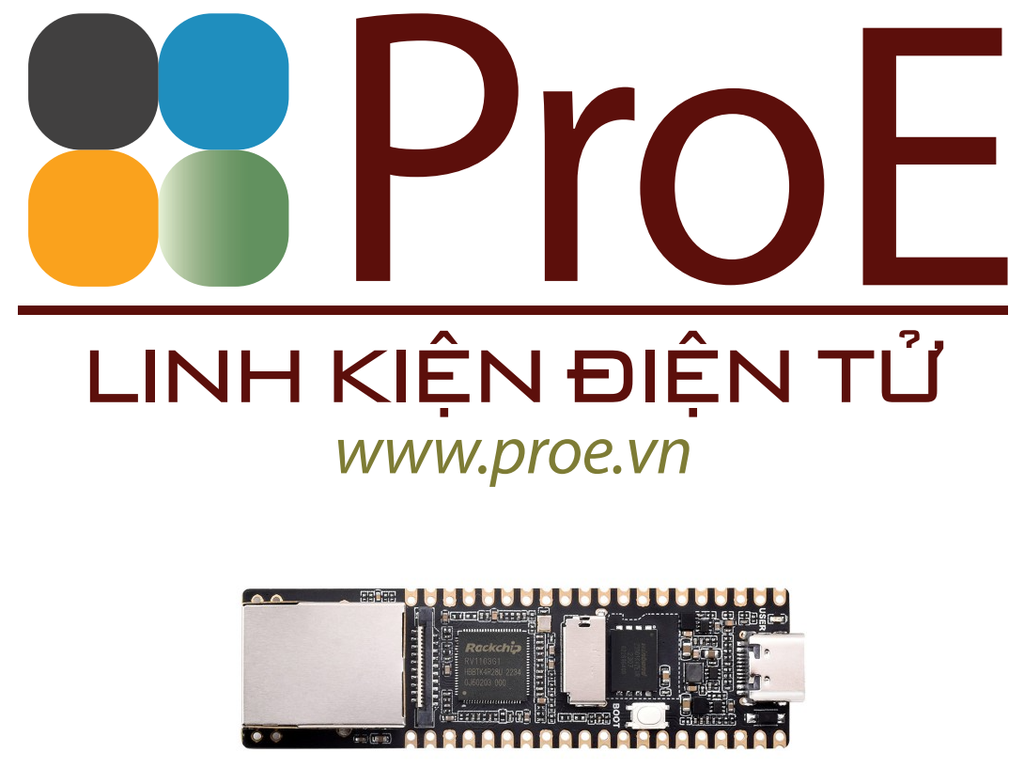

What's On Board

1. USB Type-C connector
2. ACT-LED
3. TF card slot
4. BOOT button
   Press it when powering on to enter download mode
5. W25N01KV
   1Gb SLC NAND FLASH
6. RV1103
   Vision processor SoC with built-in ARM Cortex-A7 core

7. CSI camera interface
   MIPI CSI 2-lane
8. RJ45 Ethernet port
9. GPIO header
10. USB test pads
11. BOOT test pad
12. Microphone test pads

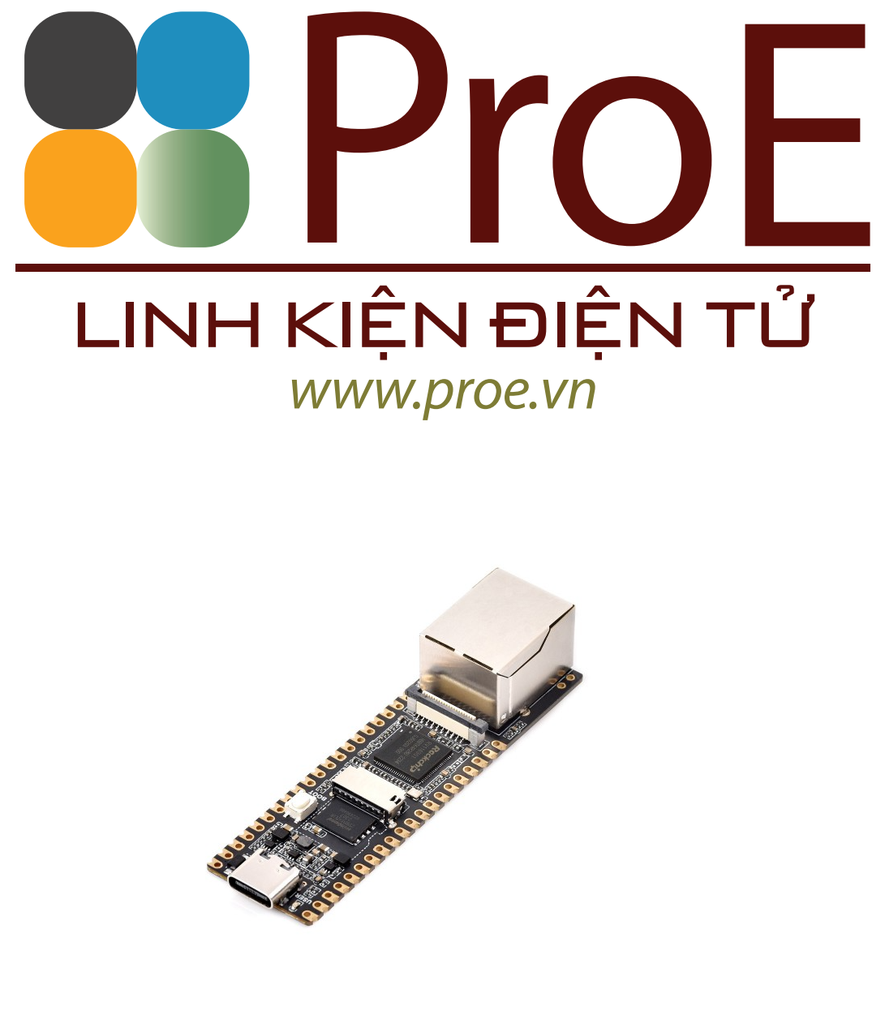

Product Show

Outline Dimensions

Wiki: https://wiki.luckfox.com/Luckfox-Pico/Luckfox-Pico-quick-start
