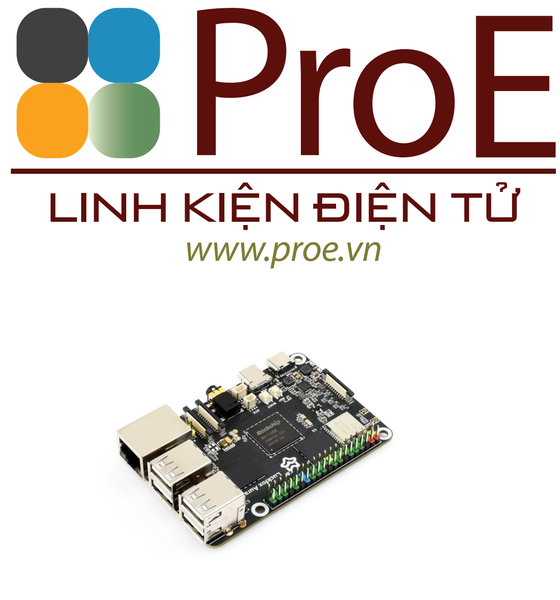

Luckfox Aura-RV1126

Wiki: https://wiki.luckfox.com/Luckfox-Aura

Luckfox Aura High-Performance Linux Development Board, Rockchip RV1126B Quad-Core 1.6GHz Processor, 3 TOPS Computing Power, 4K Encoding And Decoding, Options For RAM And eMMC

Luckfox Aura

High-Performance Linux Development Board Based on Rockchip RV1126B

Version Options

Specifications

Low Power quad-Core AIoT Processor

Equipped with high-performance RV1126B processor, integrated with quad-core Cortex-A53 processor, providing strong performance and high energy efficiency

3 TOPS Computing Power

Equipped with 3 TOPS computing power, easy to convert a variety of neural network models based on TensorFlow, MXNet, PyTorch, and Caffe frameworks, supports running large language models and Visual Language Models

Object Recognition

Face Recognition

Vehicle Recognition

Pedestrian Detection

Large Language Model

Visual Language Model

Supports 4K encoding and decoding

Supports 4K@30fps H.264/H.265 hardware encoding and decoding capabilities,
easy to deal with HD video tasks

MIPI DSI 4-lane Interface

Powerful performance, easy to drive large screens

* Supports up to 1920 × 1080@60Hz resolution.
for reference only, the 13.3inch DSI LCD is not included.

MIPI CSI 4-lane dual camera interfaces

Suitable for AI vision applications such as visual robotics,
depth vision, and stereo vision

*for reference only, please refer to the package content for detailed part list.

Wi-Fi 6 and Bluetooth module

Onboard 2.4GHz/5GHz Wi-Fi 6 and Bluetooth 5.4/BLE Bluetooth Module,
Providing Stable Connection And Efficient Transmission

Gigabit PoE Ethernet port

Supports 10M/100M/1000M Ethernet port to meet file transfer and video streaming needs, with reserved PoE module header for more flexible power supply

Audio interfaces

Onboard Microphone + 3.5mm Headphone / Microphone Jack, meets a variety of audio application scenarios

Application Examples

Pin definition

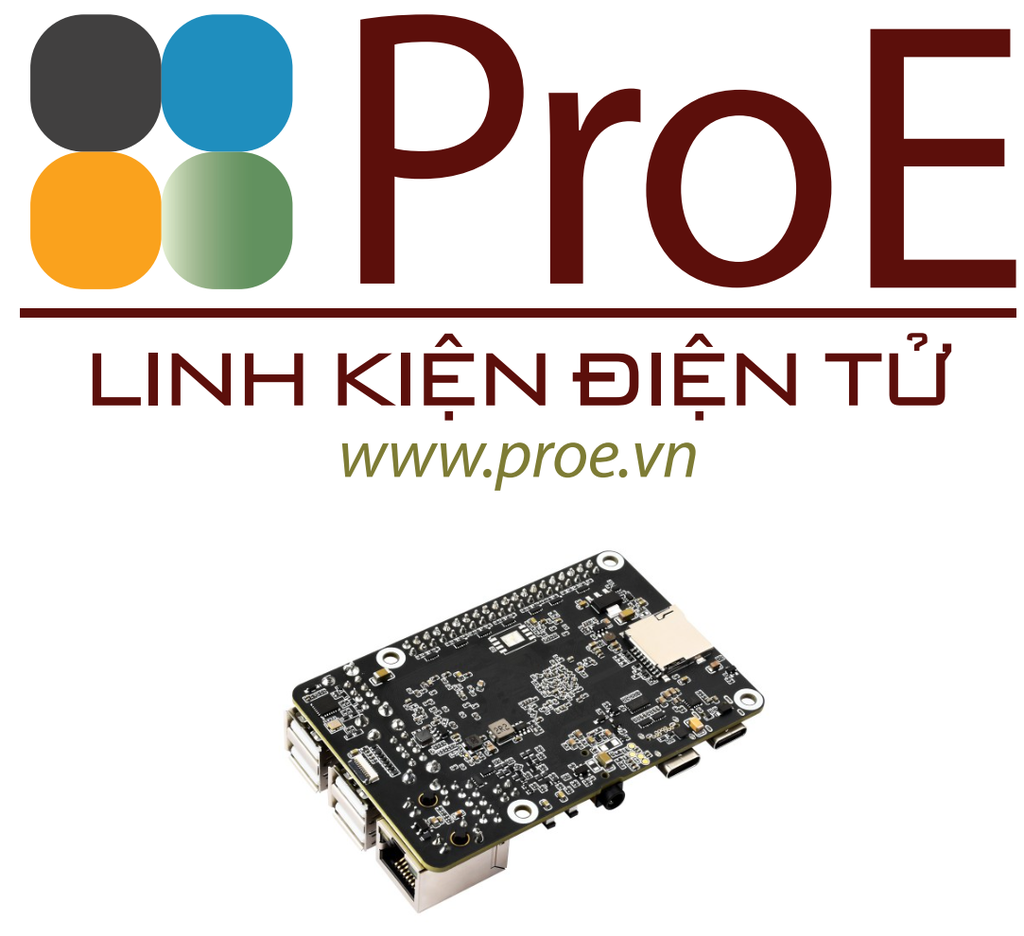

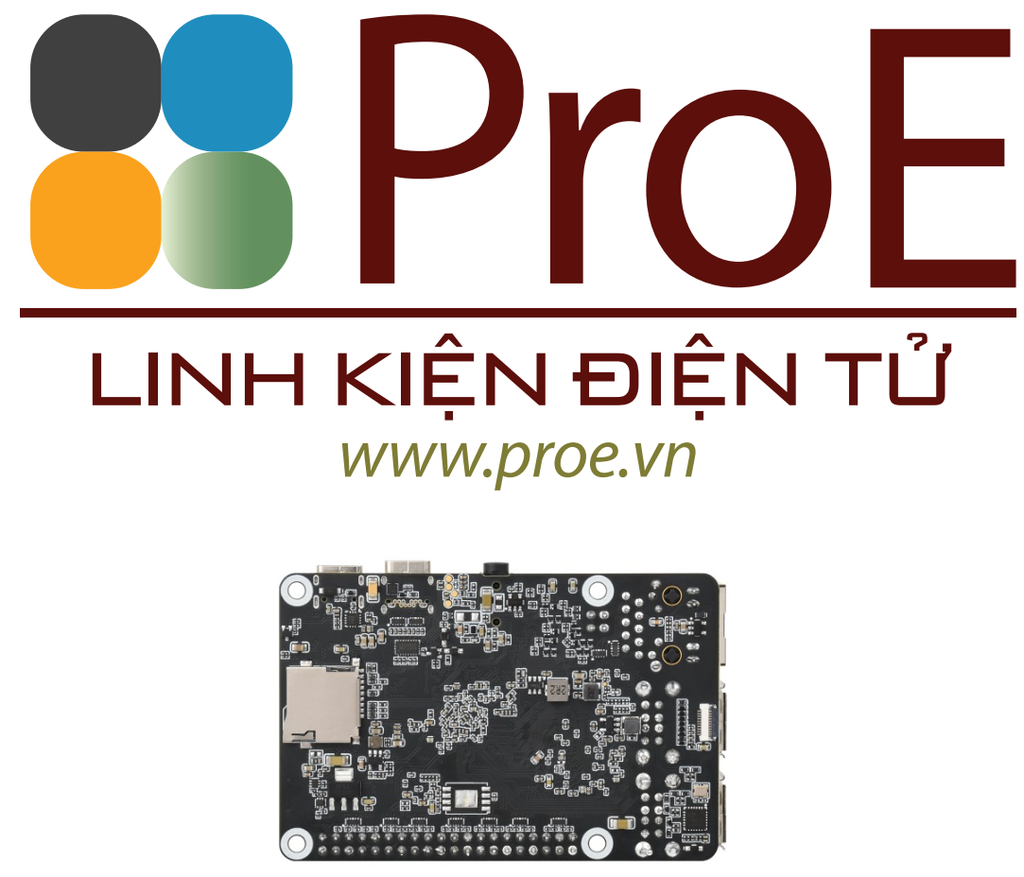

What's On Board

1. RV1126B
   built-in quad-core ARM Cortex-A53
2. eMMC (options for 0GB / 64GB)
3. Wi-Fi / BT module
   2.4GHz / 5GHz Wi-Fi 6 + BT 5.4 / BLE module
4. Wi-Fi / BT module antenna connectors
5. DSI display interface
6. USER-LED
   for indicating system operating status in the default image
7. POWER-LED
   for indicating power supply status
8. USB-PWR
   for 5V DC power supply
9. RESET button
10. BOOT button
    Press it when powering on or resetting to enter download mode
11. USB3.0 OTG Type-C port
    for programming, emulating USB devices, or connecting USB peripherals

12. RTC header
13. Onboard microphone
14. DEBUG header
15. 3.5mm headphone / microphone jack
    supports audio capture or output
16. CSI-0 camera interface
    enabled by default
17. CSI-1 camera interface
18. PoE module header
19. Gigabit RJ45 Ethernet port with LED indicators (PoE-enabled)
    supports power supply via PoE switch with network cable
20. USB2.0 HOST Type-A ports
    expands 4-ch Type-A ports via USB-HUB chip
21. LPDDR4X (options for 2GB / 4GB)
22. 40PIN GPIO header
    compatible with some Raspberry Pi HATs
23. TF card slot
24. SARADC interface

outline dimensions

Luckfox-Aura-02000/04000

1. OPTIONS Luckfox-Aura-02000/04000 x1
2. SH1.0 3PIN cable ~100mm x2
3. IPEX 4 to SMA cable x2
4. 6DB antenna x2
5. USB Type-A to Type-C cable ~1m x1

1

2

3

4

5

Luckfox-Aura-02064/04064

1. OPTIONS Luckfox-Aura-02064/04064 x1
2. SH1.0 3PIN cable ~100mm x2
3. IPEX 4 to SMA cable x2
4. 6DB antenna x2
5. USB Type-A to Type-C cable ~1m x1

1

2

3

4

5
