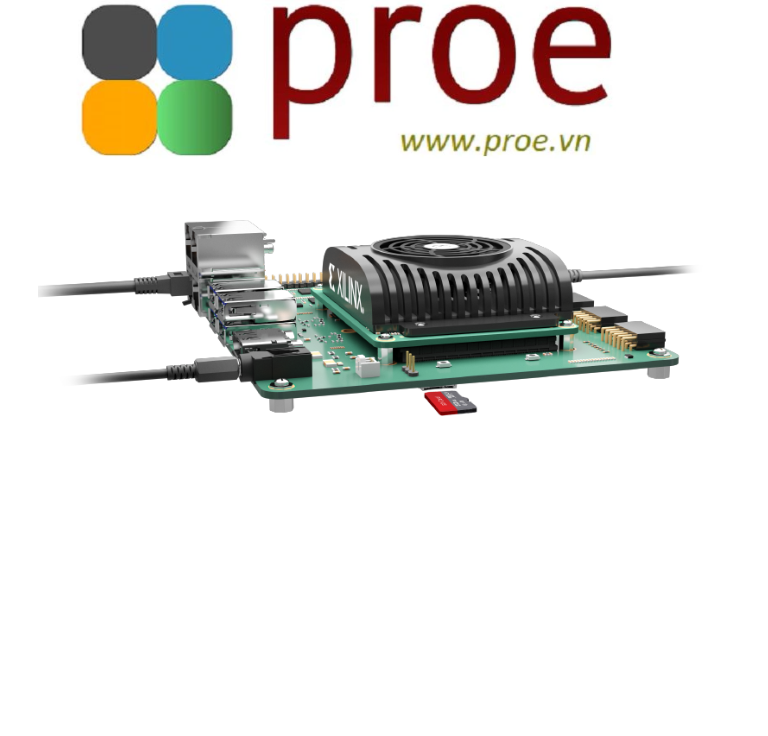

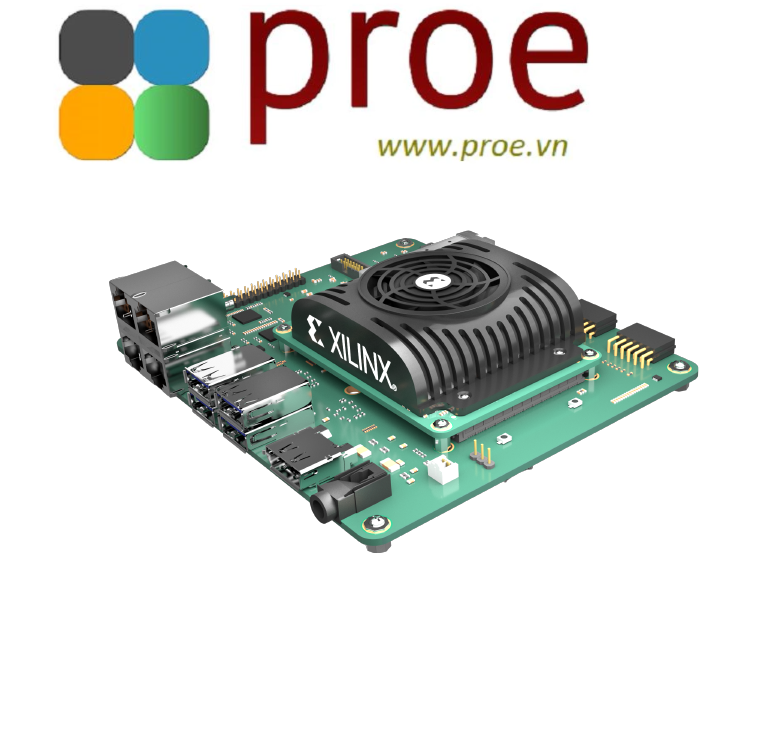

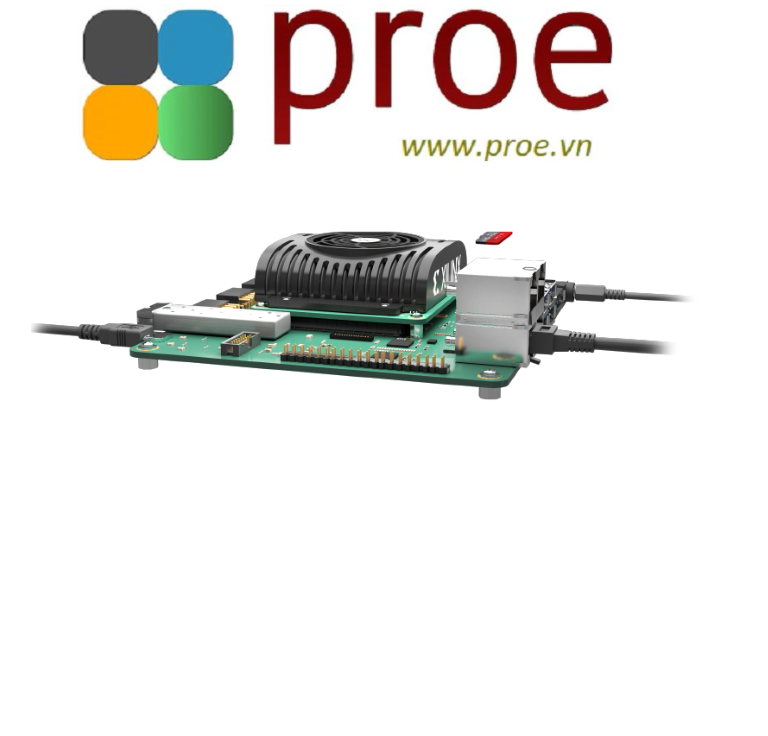

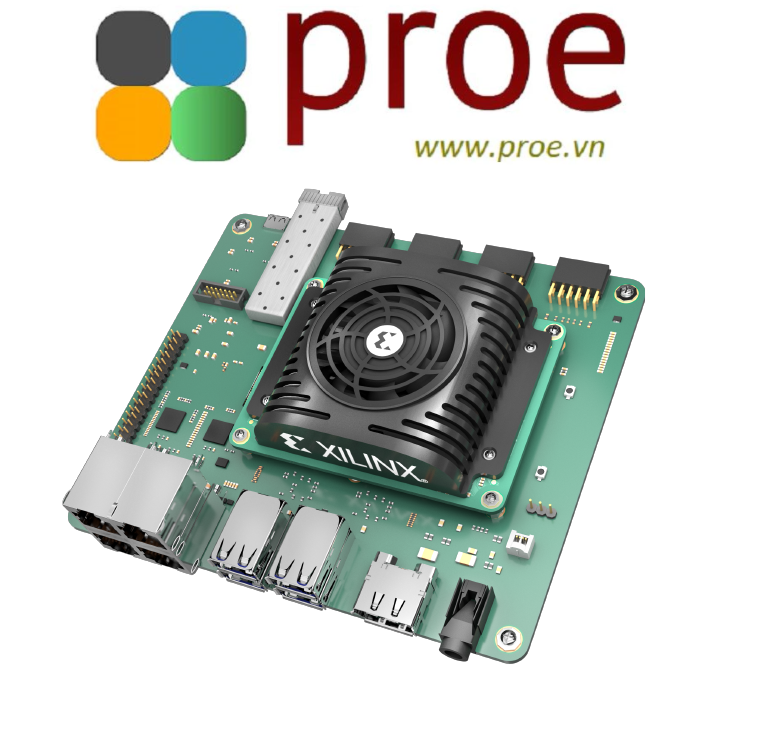

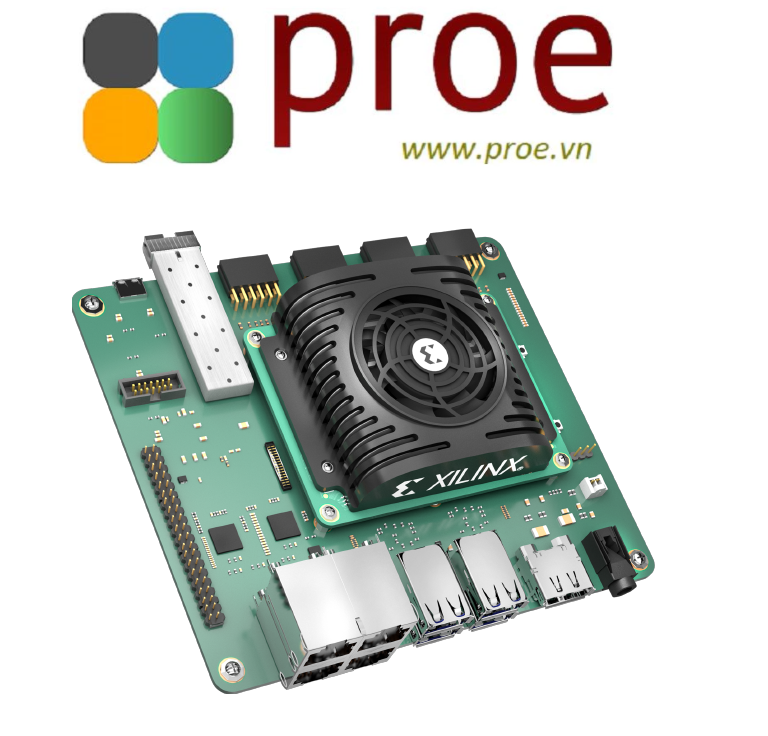

Kria KR260 Robotics Starter Kit
- Mã sản phẩm: SK-KR260-G
- Nhà sản xuất: XILINX
- Website hỗ trợ: https://www.proe.vn
16.000.000₫
As the development platform for Kria K26 SOMs, the KR260 is built for robotics and industrial applications, complete with high performance interfaces and native ROS 2 support for ease of development by roboticists and software developers.
| Parameter | KR260 |
|---|---|
| Device | Zynq UltraScale+™ MPSoC EV (XCK26) |
| Form factor | SOM + Carrier Card + Thermal Solution |
| Starter kit dimensions | 119mm x 140mm x 36mm |
| Thermal cooling solution | Active (Fan + Heatsink) |
| System logic cells | 256K |
| Block RAM blocks | 144 |
| UltraRAM blocks | 64 |
| DSP slices | 1.2K |
| Ethernet interface | 4x 10/100/1000 Mb/s RJ-45s 1x SFP+ Cage |
| DDR memory | 4GB (4 x 512Mb x 16 bit) [non-ECC] DDR4 |
| Primary boot memory | 512Mb QSPI |
| Secondary boot memory | SDHC card |
| Device Security | Zynq UltraScale+ MPSoC hardware root of trust (RoT) in support of secure boot. Infineon TPM2.0 in support of measured boot. |
| Video | x1 SLVS-EC Gen2 x2 lane interface DisplayPort 1.2a Output for 1920 x 1080 at 60Hz |
| I/O expansion | x4 Pmod 12-pin interface x1 Raspberry Pi HAT header with 26 I/Os |
| USB3.0/2.0 interfaces | x4 |

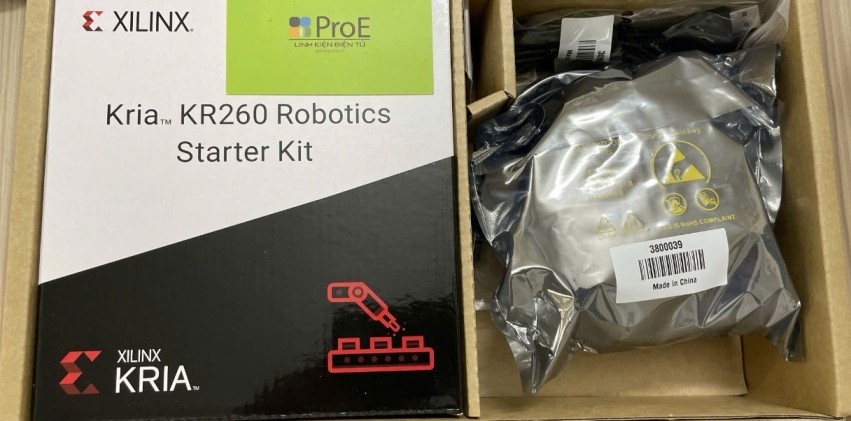

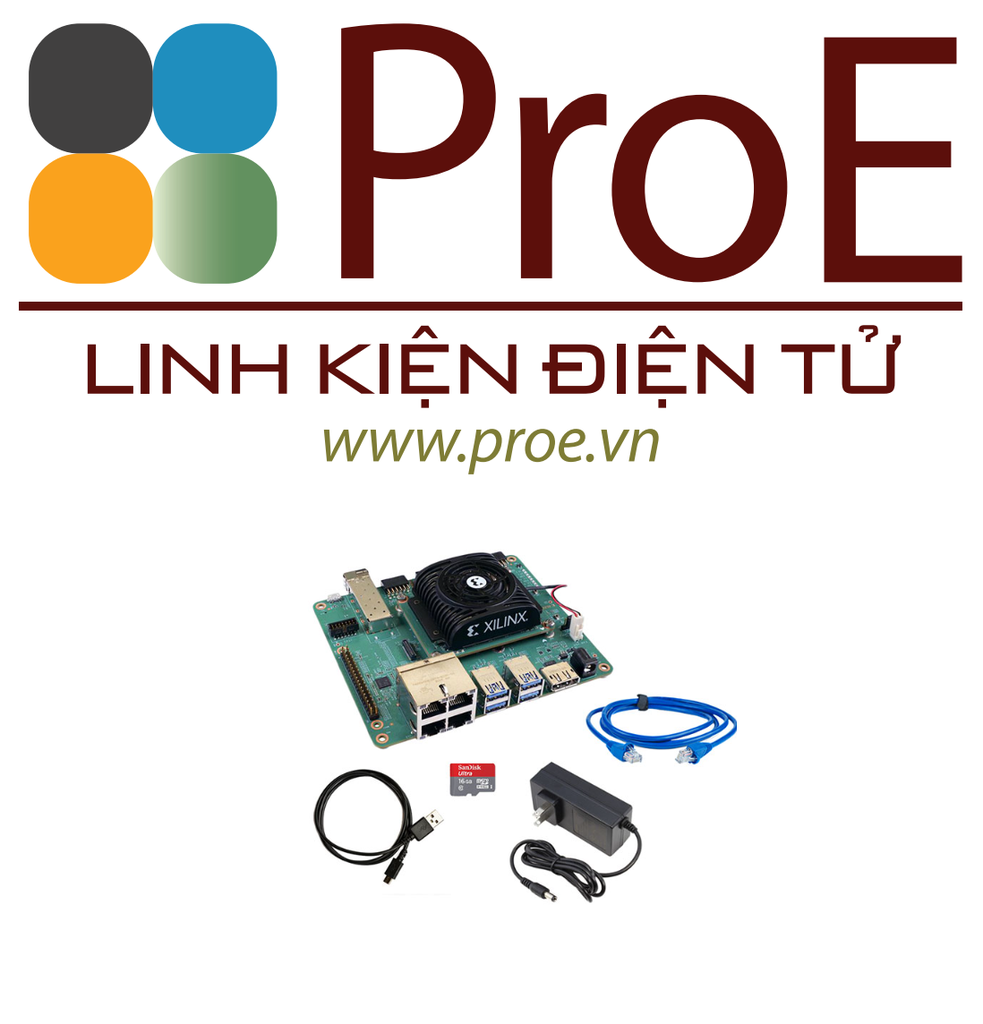

PACKAGE CONTENT
Included Accessories
KR260 Power Supply & Adapter
AC/DC WALL MOUNT ADAPTER 12V 36W
Plugs into the DC power supply jack on the Starter Kit. Comes with interchangeable blades for major regions (North America, Europe, UK, Australia, China)
USB-A to micro-B Cable
Connects user end system (USB-A) to the micro-B connector on the starter kit to establish UART connection to setup the terminal
Ethernet Cable
Connects the user’s networking setup to the RJ-45 connector on the Starter Kit
MicroSD card and MicroSD to SD Adapter
16GB MicroSD and adapter to flash the SD card image to boot or run applications
