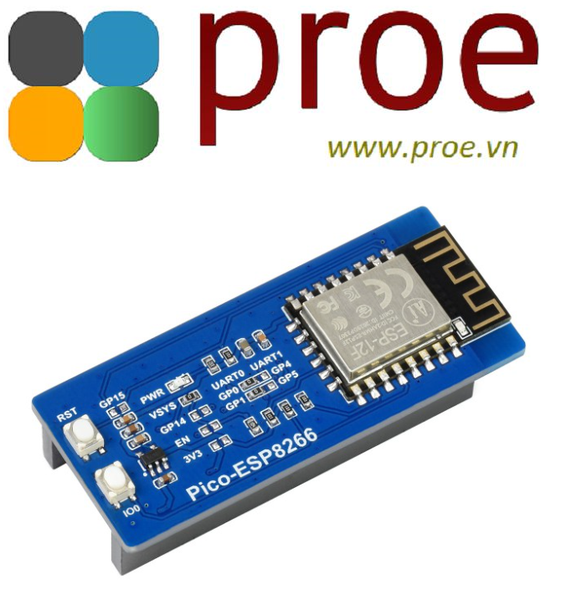

ESP8266 WiFi Module for Raspberry Pi Pico, Supports TCP/UDP Protocol

PACKAGE CONTENT

Weight: 0.011 kg

1. Pico-ESP8266 x1

1

ESP8266 WiFi Module For Raspberry Pi Pico, Supports TCP/UDP Protocol

ESP8266 WiFi Module For Pico

WiFi Expansion Module Based On ESP8266, Supports TCP/UDP Protocol

Features At A Glance

The Pico-ESP8266 is a WiFi expansion module designed for Raspberry Pi Pico, which can be controlled via UART AT command, and supports TCP/UDP communication protocol. It is an easy solution to enable WiFi feature for Raspberry Pi Pico, suitable for sorts of IoT communication projects.

• Standard Raspberry Pi Pico header, supports Raspberry Pi Pico series
• UART communication, controlled via AT command, helps you get started quickly
• Supports STA, AP, and STA+AP three WiFi operating modes, embedded LWIP protocol stack, supports TCP/UDP communication
• Based on ESP8266 module, four-layers process, enhanced impedance matching, stronger signal, more stable connection
• 2x functional buttons, convenient for user to update AT firmware through Raspberry Pi Pico
• Comes with development resources and manual (Raspberry Pi Pico C/C++ and MicroPython examples)

Specifications

Raspberry Pi Pico Header Compatibility

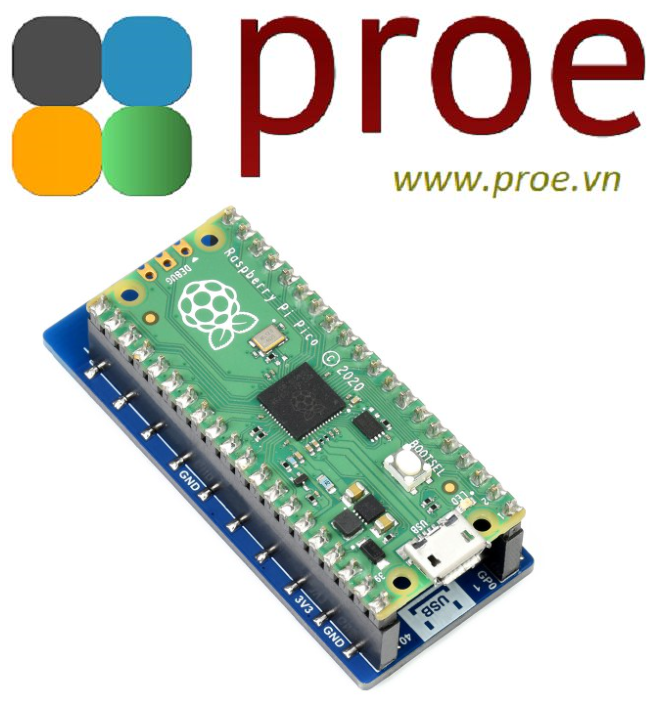

Onboard Female Pin Header For Direct Attaching To Raspberry Pi Pico

Raspberry Pi Pico is NOT included.

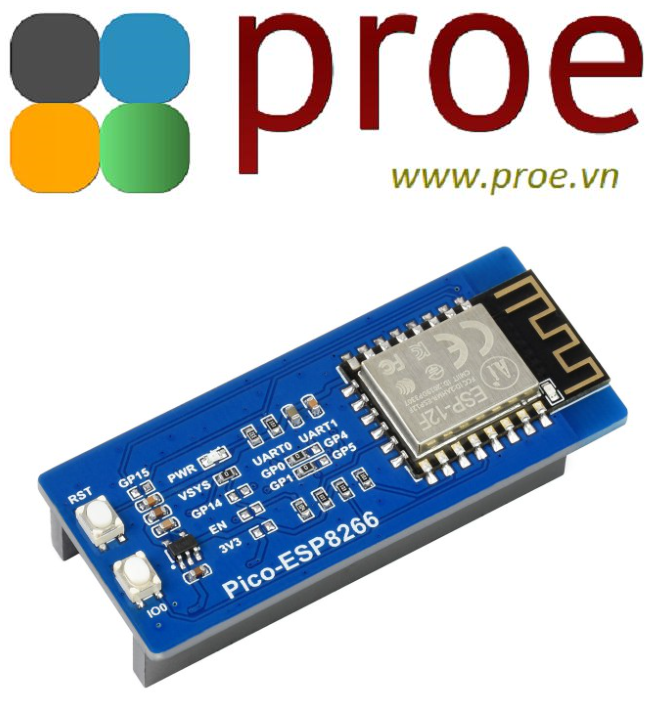

What's On Board

1. ESP8266 module
2. ESP8266 reset button
   connects to ESP8266 reset pin

3. ESP8266 BOOT button
   connects to ESP8266 GPIO 0, press to enter awaiting download mode while reseting
4. SPX3819M5
   3.3V linear regulator

Pinout Definition

Outline Dimensions

Resources & Services

WIKI: Pico-ESP8266
