Electronic Clock for Raspberry Pi Pico, Accurate RTC, Multi Functions, LED Digits

  • Mã sản phẩm: Pico-Clock-Green-EN
  • Nhà sản xuất: Waveshare
  • Website hỗ trợ: https://www.proe.vn
600.000₫
PACKAGE CONTENT

Weight: 0.269 kg

  1. Pico-Clock-Green x1
  2. Case x1
  3. USB-A to micro-B cable 1.2m x1
  4. Button cell CR2032 x1
  5. Screws pack x1

Rectangle Electronic Clock For Raspberry Pi Pico, Accurate RTC, Multi Functions, LED Digits

Rectangle Electronic Clock For Pico

Accurate RTC, LED Digits

Open Source, Programable, Helpful For Study



Features At A Glance

The Pico-Clock-Green is an LED digits electronic clock designed for Raspberry Pi Pico. It incorporates high precision RTC chip DS3231, photosensor, buzzer, and buttons, features multiple functions including accurate electronic clock, temperature display, auto brightness adjustment, alarm, and button config. The important part is, rich open source codes and development tutorials are also provided to help you fast get started with Raspberry Pi Pico and make your own original electronic clock.

  • Standard Raspberry Pi Pico header, supports Raspberry Pi Pico series
  • Onboard high precision RTC chip DS3231, with backup battery holder, maintains accurate timekeeping when main power is off
    • Real-Time Clock Counts Seconds, Minutes, Hours, Date of the Month, Month, Day of the Week, and Year with Leap-Year Compensation Valid Up to 2100
    • Optional format : 24-hour OR 12-hour with an AM/PM indicator
    • 2x programable alarm clock
    • Digital temperature sensor output: ±3°C accuracy
  • Embedded photosensor for auto brightness adjustment due to the ambient light, power saving and eye care
  • Embedded buzzer for alarm or hourly ring, etc.
  • 3x buttons for configuration
  • Comes with development resources and manual (Raspberry Pi Pico C/C++ and MicroPython examples)

Specifications

POWER SUPPLY 5V via USB connection PROGRAM / DEBUG PORT USB
OUTLINE DIMENSIONS 216 × 79 × 25 mm DISPLAY SIZE 190 × 60 mm
LED DIGIT jade green
FUNCTIONS scrolling display
alarm/hourly ring
temperature in ℉ or ℃ format
12/24 time format
day of week auto adjustment
timekeeping without main power
timer configuration
manual/auto brightness adjustment
button configuration

Raspberry Pi Pico Header Compatibility

Attaching Raspberry Pi Pico Directly, Other DIY Expansion Modules Are Also Supported

The clock requires a Pico to work, which is NOT included.
We recommend this one with pre-soldered pin header: Raspberry-Pi-Pico-M

Programable & Study-Helpful

Not only for power supply, the USB port can also be used for debugging, helps you fast get started with Raspberry Pi Pico
C/Python program support, software and hardware open source, rich study and development tutorials

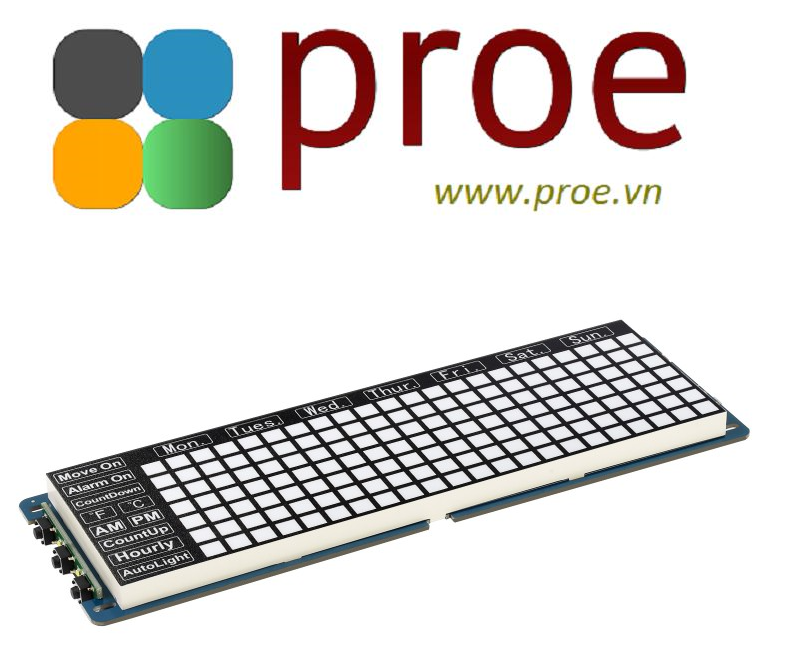

LED Digits Display Panel

SM5166P+SM16106 Driving Solution, Minor I/O Requirement, Better Display Effect

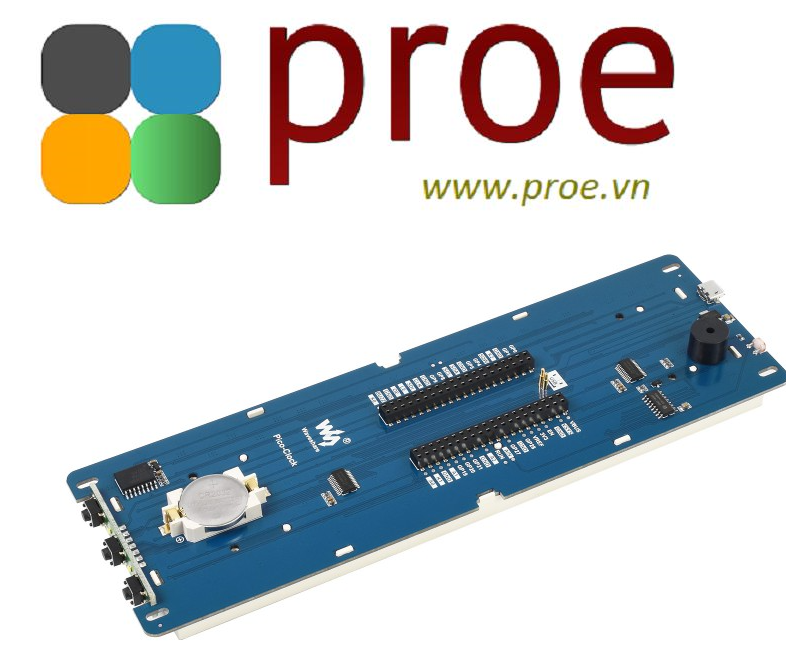

Precision RTC Chip DS3231

Incorporates High Precision RTC Chip DS3231, With Integrated Temperature Sensor
Backup Battery For Continuous Timekeeping When Power-Off

Photosensor & Buzzer

Photosensor Enables Auto Brightness Adjustment Due To Ambient Light
Buzzer Can Be Used For Alarm, Hourly Ring, Or Playing Music

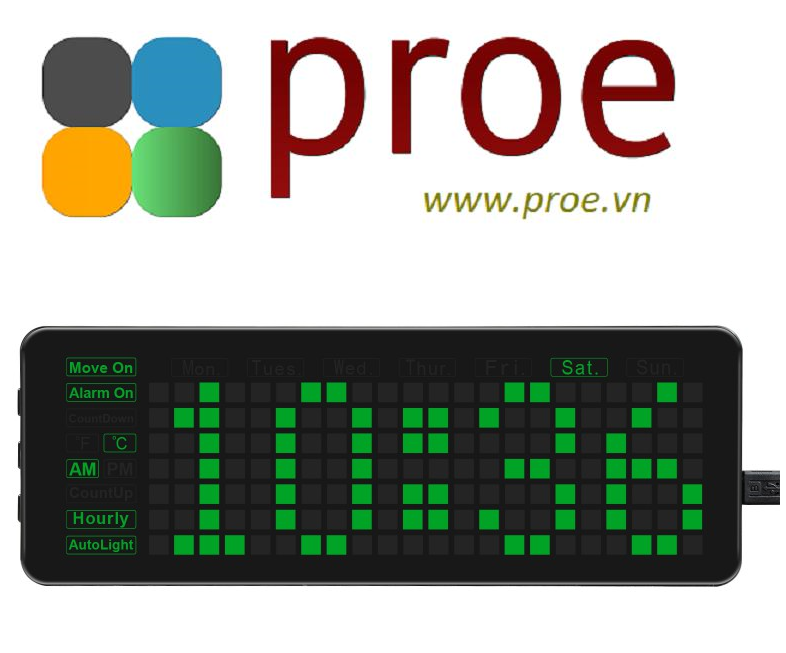

Multi Software Functions Support

Normal Display Or Scrolling Display, 12 Or 24 Hour Format, Countdown Or Countup Timer
And More Other Functions Could Be Created By Yourself

Introduction & Dimensions

* The dimensions are measured manually, for reference ONLY

Resources & Services


WIKI: Pico-Clock-Green
