RDK X3 MD Carrier Board

Official D-Robotics RDK X3 MD Carrier Board For RDK X3 Module, Suitable For All Variants Of RDK X3 MD Module

D-Robotics RDK X3 MD Carrier Board

Specifically designed for D-Robotics RDK X3 MD Module

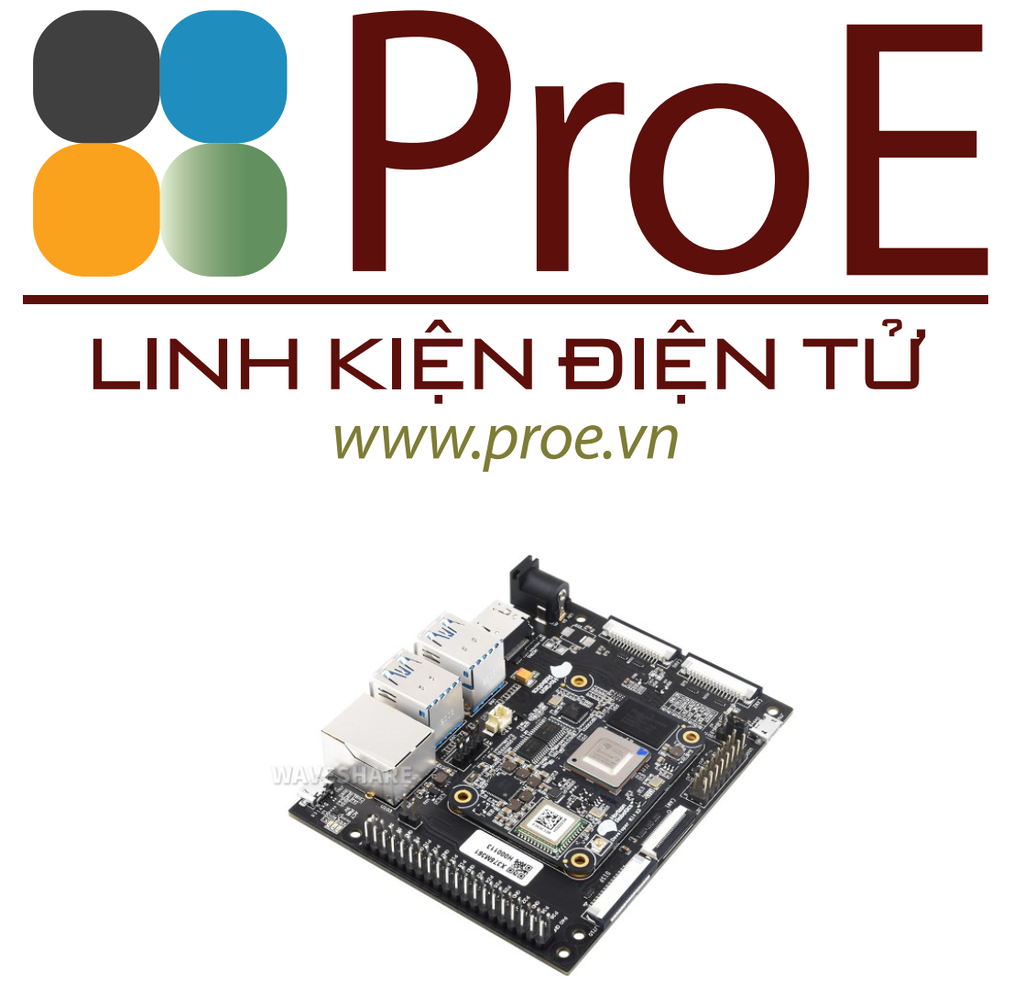

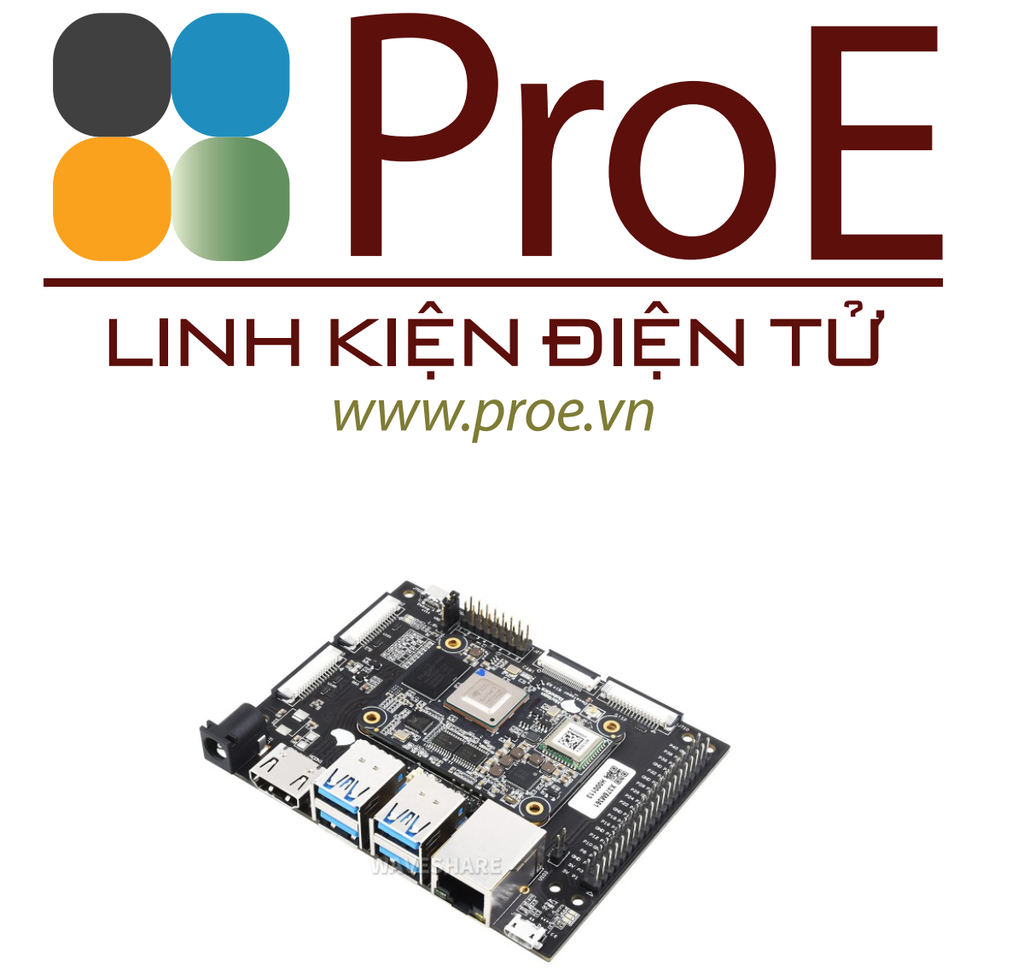

The RDK X3 Module Carrier Board is a companion board for RDK X3 MD Module, provides rich interfaces including USB 3.0, Ethernet, HDMI, MIPI CSI, MIPI DSI and 40PIN header, etc, facilitates functional verification and development of the module.

Specifications

Specifically designed for RDK X3 Module

Easily expand multiple interfaces, making development more convenient

* for reference only, the RDK X3 Module is NOT included.

What's On Board

1. 12V DC Power Jack
2. HDMI Port
3. USB3.0 Host Ports
4. RTC Battery Header
5. 12V Fan Header
6. Gigabit Ethernet Port
7. Micro USB2.0 Device Port
8. Status Indicators
9. 40PIN Header

10. MIPI DSI Interface
11. CAM1 Interface (4-lane)
12. RDK X3 Module Socket
13. Function Control IO Header
14. IO Level Selection Header
15. Debug Port, USB to UART
16. CAM2 Interface (2-lane)
17. CAM0 Interface (2-lane)
18. Micro SD Slot (On The back)

Supports Connecting with multiple devices

More convenient for users to verify and develop module functions

* for reference only, please refer to the package content for detailed part list.

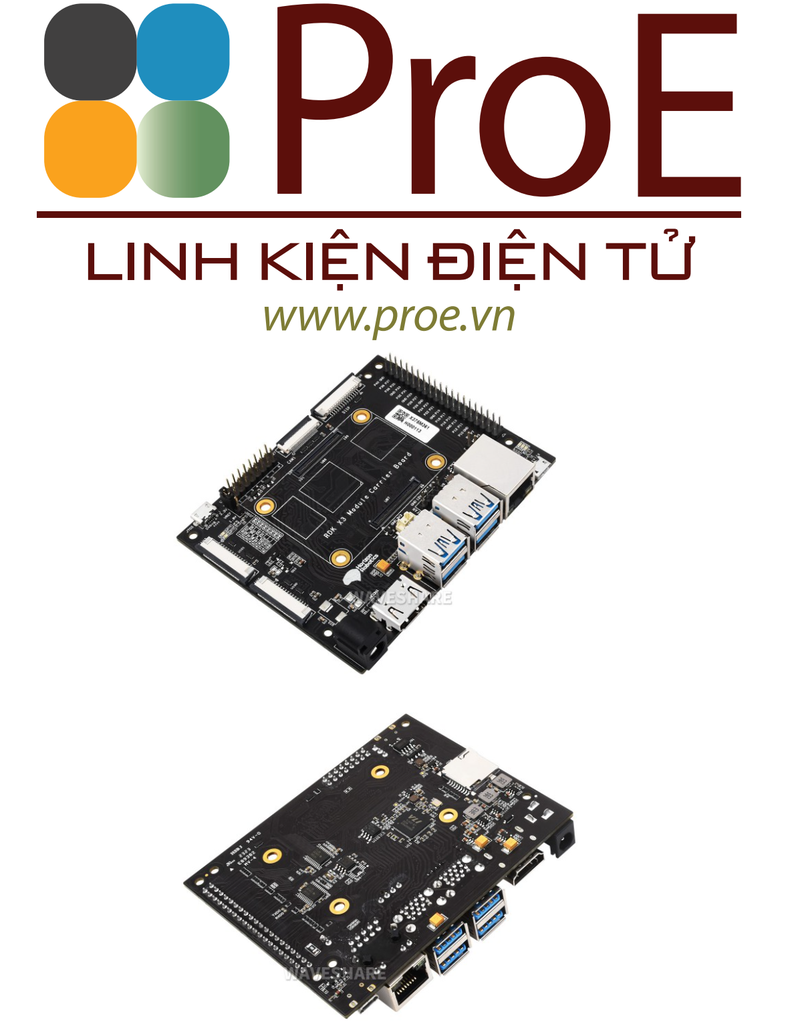

Product Show

Outline dimensions

Resources & Services

Wiki: www.waveshare.com/wiki/RDK_X3_MD_Carrier_Board
