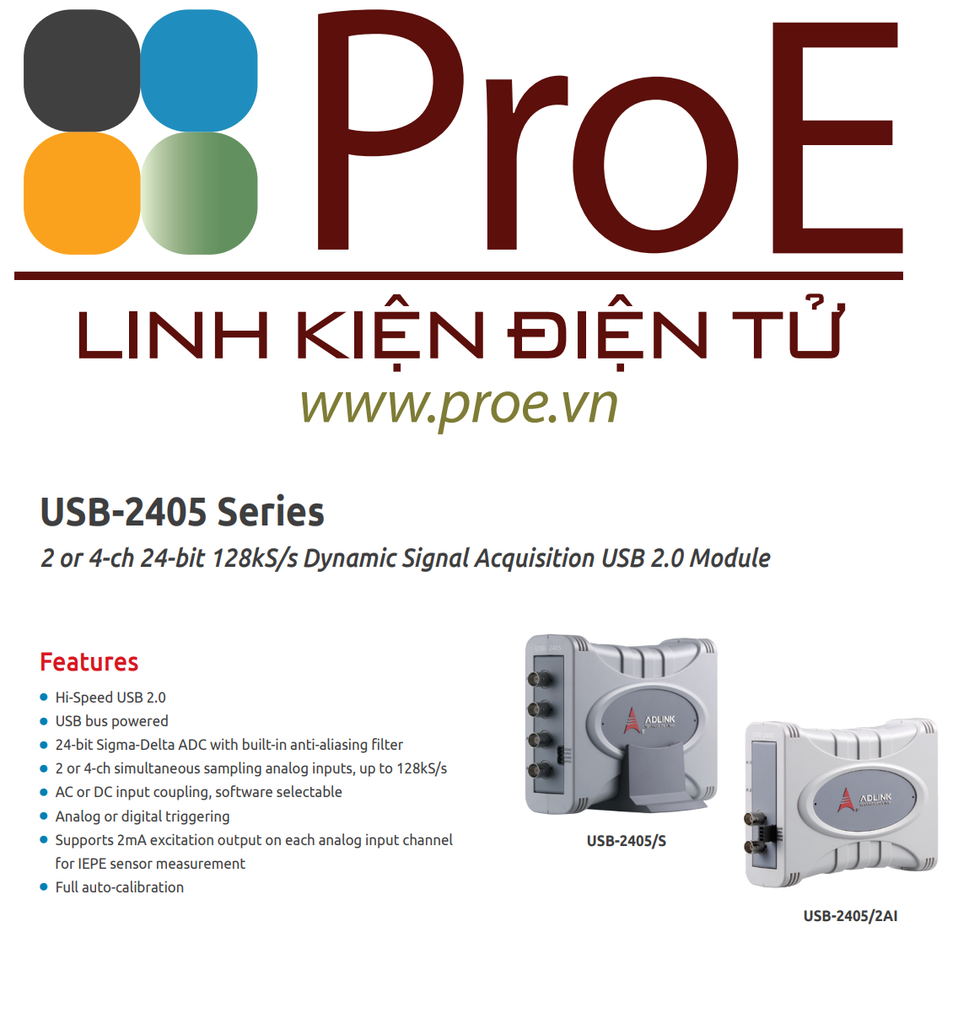

USB-2405

4-CH 24-Bit 128kS/s Dynamic Signal Acquisition USB 2.0 Module (OEM version available)

Key Features

• Hi-Speed USB 2.0, and USB bus powered
• 24-bit Sigma-Delta ADC with built-in anti-aliasing filter
• 4-CH simultaneous sampling analog input, up to 128kS/s
• AC or DC input coupling, software selectable
• Analog and Digital triggering & Full auto-calibration
• Supports 2mA excitation output on each analog input channel for IEPE sensor measurement
• Supporting Time-Frequency analysis software -Visual Signal
• Supported Operating System: Windows 7/8 x64/x86, Linux, and MAC (Call for availability)

The USB-2405 is a 24-bit high-performance dynamic signal acquisition USB module equipped with 4 analog input channels providing simultaneous-sampling at up to 128 kS/s per channel. The USB-2405 also features software selectable AC or DC coupling input configuration and built-in high precision 2 mA excitation current to measure integrated electronic piezoelectric (IEPE) sensors such as accelerometers and microphones.

The USB-2405 delivers high precision, DC and dynamic measurement performance with very low temperature drift. The onboard 24-bit Sigma-Delta ADC supports anti-aliasing filtering, suppressing modulator and signal out-of-band noise and providing usable signal bandwidth of the Nyquist rate, making it ideal for high dynamic range signal measurement in vibration and acoustic applications.

The USB-2405 supports digital and analog trigger sources and flexible trigger modes, including post, delay, middle, gated, and pre-triggering for efficient data acquisition with no need for post-processing. The USB-2405 is USB bus powered and equipped with BNC connectors and removable spring terminals for easy device connectivity.

OS Information
-Windows 7/8 x64/x86, Linux, and Mac
Software Compatibility
-LabVIEW?
-MATLABR
-C/C++
-Visual Basic, Visual Studio.NET
Software Recommendations
-U-Test
-Visual Signal DAQ Express
