Dual-Mode Bluetooth Module for Raspberry Pi Pico, SPP / BLE, Bluetooth 5.1
- Mã sản phẩm: Pico-BLE
- Nhà sản xuất: Waveshare
- Website hỗ trợ: https://www.proe.vn
200.000₫
- PACKAGE CONTENT
-
Weight: 0.01 kg
- Pico-BLE x1
1

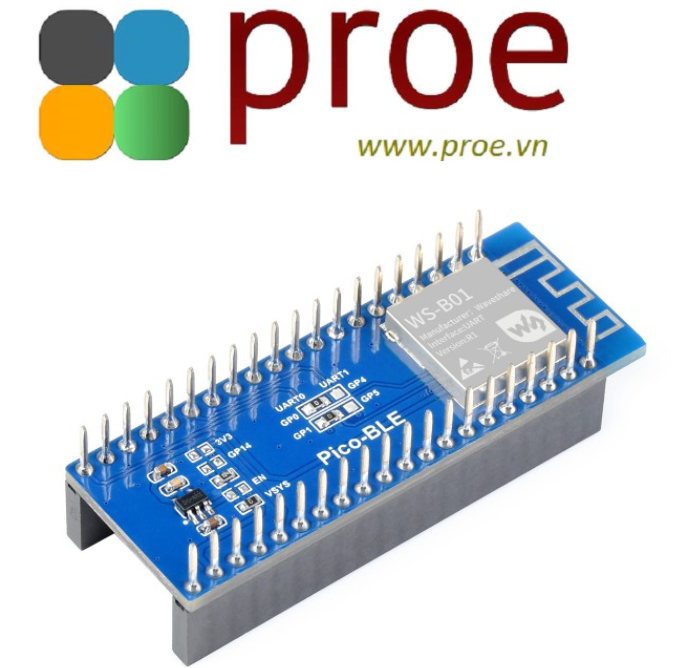

Dual-Mode Bluetooth Module For Raspberry Pi Pico, SPP / BLE, Bluetooth 5.1 Wireless
Dual-Mode Bluetooth Module For Pico
Features At A Glance
The Pico-BLE is a dual-mode Bluetooth 5.1 expansion module designed for Raspberry Pi Pico, which is controlled via UART AT commands, with SPP and BLE support. Combined with the Raspberry Pi Pico, it can be used for Bluetooth wireless communication applications.
- Standard Raspberry Pi Pico header, supports Raspberry Pi Pico series
- Controlled via UART AT commands, get started quickly
- Comes with development resources and manual (Raspberry Pi Pico C/C++ and MicroPython examples)
Specifications
| BLUETOOTH MODULE | dual-mode Bluetooth to UART module |
|---|---|
| TRANSMISSION DISTANCE | 30m (open air) |
| COMMUNICATION | UART |
| ANTENNA | Onboard PCB antenna |
| TRANSMISSION CACHE | 1K bytes UART cache, it is recommended to transmit less than 512 bytes per transmission for SPP |
| UART BAUDRATE | 13 different baudrate configuration, 115200 bps by default |
| INPUT VOLTAGE | 5V / 3.3V |
| OPERATING CURRENT | Startup transient current: about 25mA for about 300ms; Stable status current: about 6mA, non low power mode; Low power mode current: refer to user manual |
| OPERATING TEMPERATURE | -40℃ ~ 80℃ |
| OPERATING HUMIDITY | 5% ~ 95% |
| DIMENSIONS | 56.5 × 21 (mm) |
Raspberry Pi Pico Header Compatibility

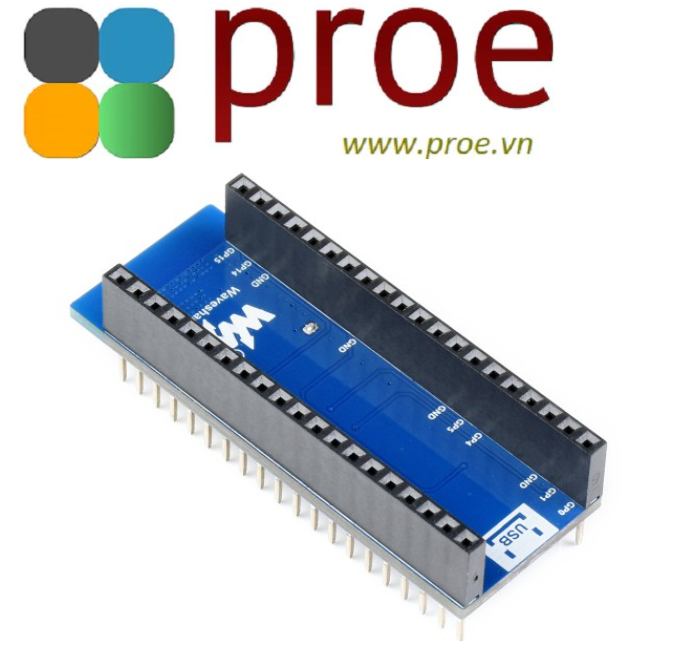

Onboard Female Pin Header For Direct Attaching To Raspberry Pi Pico,
Stackable Design
for reference ONLY, Raspberry Pi Pico is NOT included.

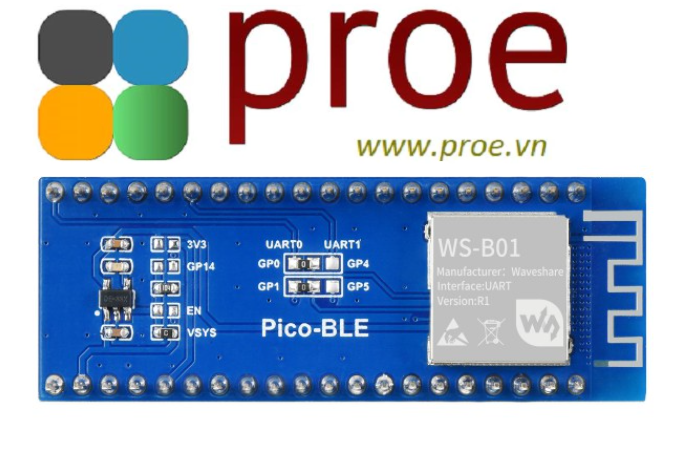

What's On Board
- Bluetooth module
- RT9193-33
3.3V regulator
- Raspberry Pi Pico header
- UART input pins selection
- Onboard Bluetooth antenna
Pinout Definition
Outline Dimensions
Resources & Services
WIKI: Pico-BLE
