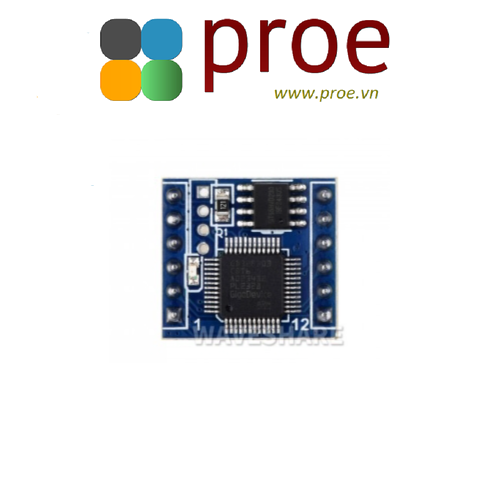

TTL UART To CAN Mini Module, With TTL And CAN Conversion Protocol, Supports Bi-Directional Transmitting And Receiving

  • Mã sản phẩm: WS-TTL-CAN
  • Nhà sản xuất: Waveshare
  • Website hỗ trợ: https://www.proe.vn
300.000₫

WIKI: www.waveshare.com/wiki/WS-TTL-CAN

PACKAGE CONTENT

Weight: 0.002 kg

WS-TTL-CAN x1

DESCRIPTION

TTL UART To CAN Mini Module, With TTL And CAN Conversion Protocol, Supports Bi-Directional Transmitting And Receiving, Multiple Operating Modes

TTL UART To CAN Mini Module

Compact Size | Easy Integration | Low Power Consumption



Features At A Glance

WS-TTL-CAN is a TTL UART to CAN module which is compact and easy to integrate, onboard high-performance MCU, with TTL and CAN conversion protocol, easily achieving UART to CAN via simple configuration.

  •    • Onboard high-performance MCU and CAN transceiver chip, small in size, low power and easy to integrate
  •    • Built in TTL and CAN conversion protocol algorithm, enabling data conversion communication between TTL and CAN via simple configuration
  •    • Supports 3.3V operating voltage on TTL interface, supports both CAN 2.0A (standard frame) and CAN 2.0B (extended frame) on CAN interface
  •    • Supports 14 sets of configurable filters, can only receive CAN bus data in specific range and type via configuration
  •    • Supports 4 operating modes: transparent conversion, transparent with identifiers conversion, format conversion, and Modbus RTU protocol conversion
  •    • Supports offline detection and automatic recovery functions
  •    • UART communication baudrate: 1200bps~460800bps
  •    • CAN communication baudrate: 10kbps~1000kbps, configurable
  •    • Up to 1000 frames CAN buffer for buffering transmission data to prevent data loss
  •    • Supports high-speed conversion, the CAN transmission speed can reach up to 1270 extended frames per second with the UART at 115200bps and CAN at 250kbps (close to the theoretical max value of 1309), and can exceed 5000 extended frames per second with the UART at 460800bps and CAN at 1000kbps
  •    • Supports device firmware upgrade via TTL, more convenient for firmware update and function customization

Specifications

POWER 3.3V@40mA
MCU 32-bit high-performance processor
CAN PORT supports CAN2.0A (standard frame) and CAN 2.0B (extended frame)
with ESD protection and anti-surge protection, excellent EMC performance
baudrate: 10kbps~1000kbps
TTL PORT 3.3V operating voltage
baudrate: 1200bps~460800bps
COMMUNICATION INDICATORS onboard working indicator, reserved RUN, COM, and CAN indicator signal pins
OTHER onboard reset/restore to factory setting pin
WORKING TEMPERATURE -40~85℃
HUMIDITY RANGE 5~95% relative humidity



Primary Function

Achieves Bidirectional Data Transmission Between TTL UART And CAN Interfaces

Supports Four Operating Modes

Transparent Conversion, Transparent With Identifiers Conversion, Format Conversion, And Modbus RTU Protocol Conversion

Supports Host Computer Configuration

Onboard Resources

Pin Definition

NO. PIN DEFINITION DESCRIPTION
1 UART_LED TTL communication indicator signal pin, high level for no data, low level for data transmission
2 CAN_LED CAN communication indicator signal pin, high level for no data, low level for data transmission
3 RUN_LED System running indicator signal pin, toggles between high and low levels (approx. 1Hz) when system is working normally; Outputting high level when CAN bus is abnormal
4 NC Reserved pin, not connected
5 CAN_H CAN differential positive, built-in 120Ω resistor
6 CAN_L CAN differential negative, built-in 120Ω resistor
7 3.3V Power input, 3.3V@40mA
8 GND Ground
9 CFG Reset/restore to factory setting, pull low within 5s for resetting or more than 5s for restoring factory setting
10 DIR RS485 direction control
11 RXD TTL RX
12 TXD TTL TX



Product Show

Outline Dimensions
