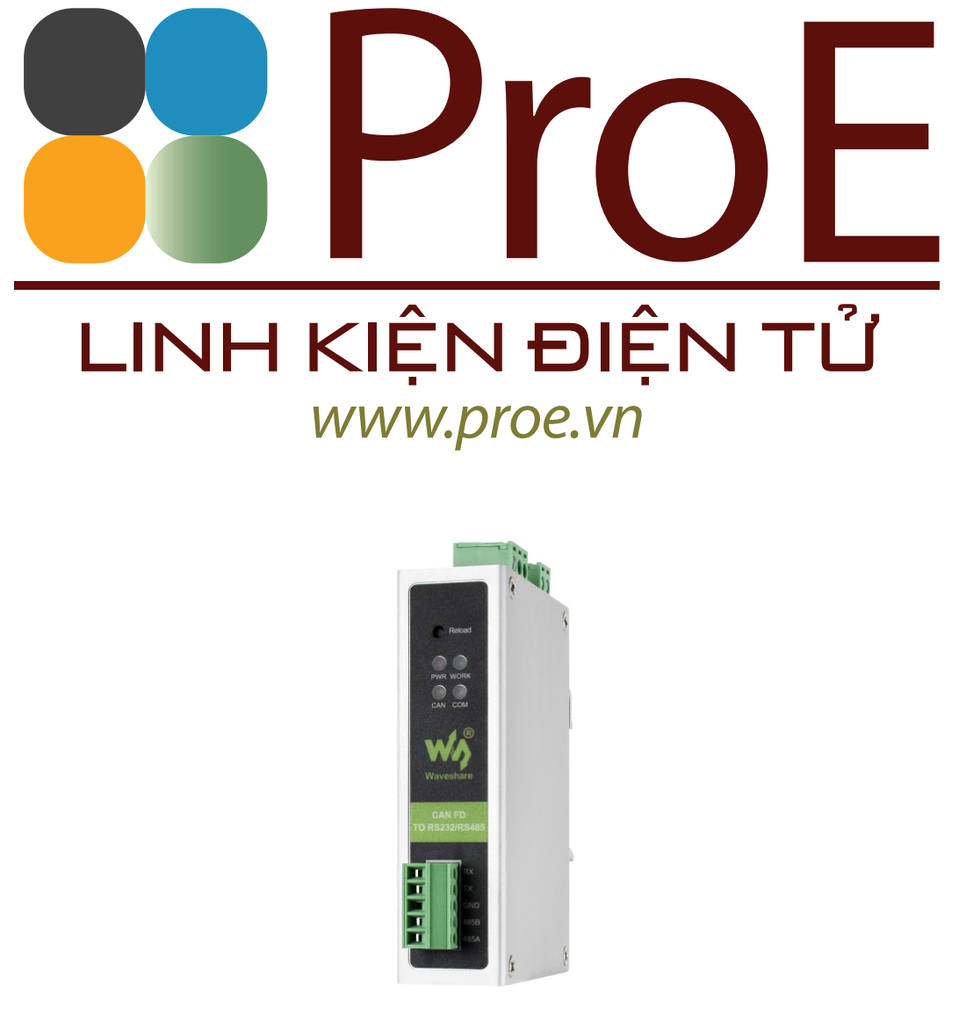

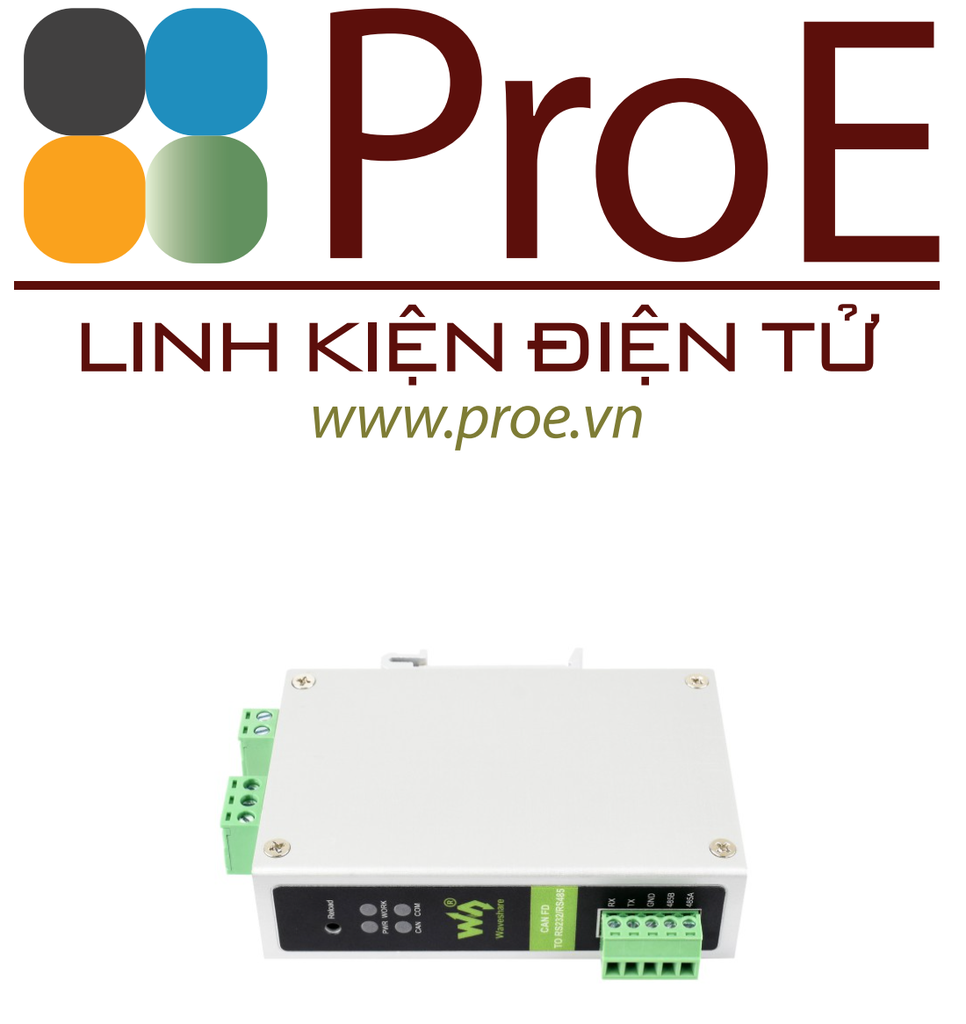

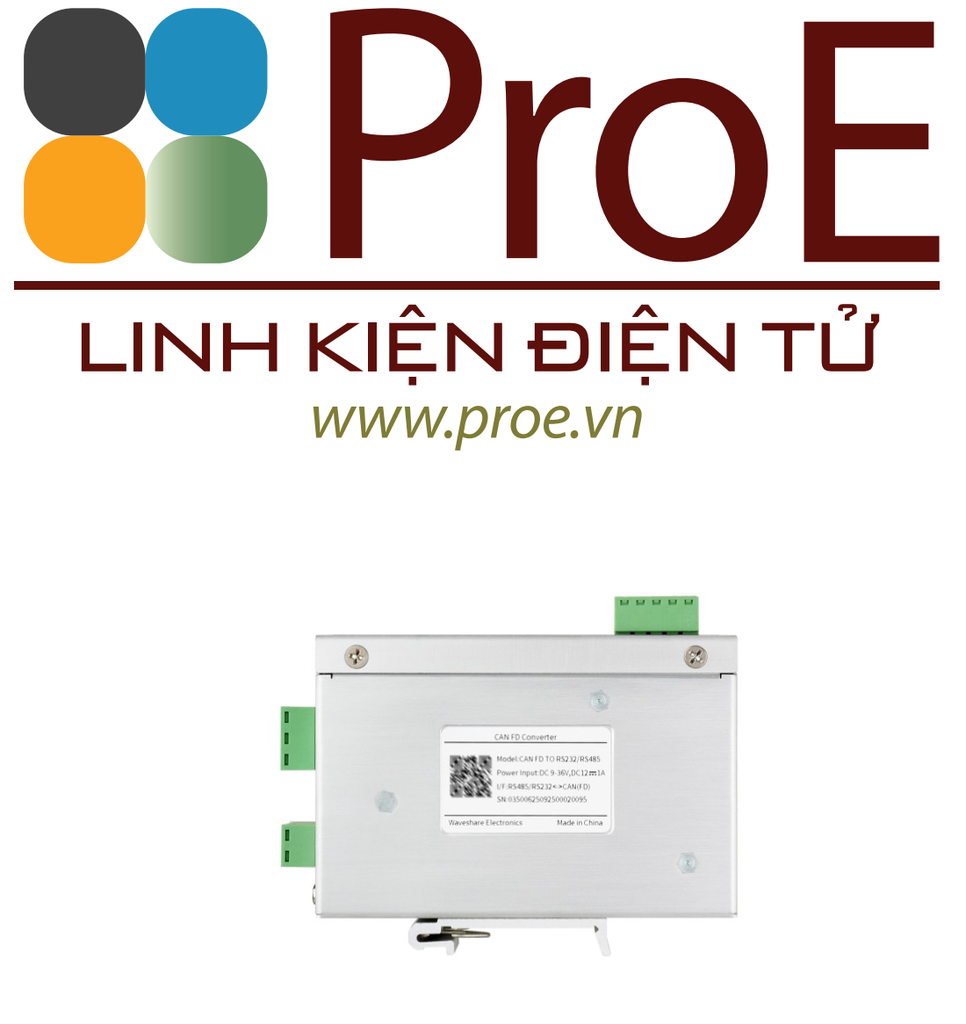

CAN FD TO RS232/RS485

CAN FD Protocol Converter, CAN FD To RS232/RS485 Bidirectional Data Communication, Supports 5 Data Conversion Modes And CAN 2.0A/2.0B Protocols, Rail-mount Support

CAN FD Protocol Converter

CAN FD Protocol | 5 Data Conversion Modes | Industrial Performance

Features at a glance

The CAN FD TO RS232/RS485 is a DIN-rail CAN FD to RS232/RS485 bidirectional converter, featuring high-speed, low-latency, stable performance, ease of use, and cost-effectiveness. It supports five data conversion modes: transparent conversion, transparent conversion with ID, standard protocol conversion, Modbus protocol conversion, and custom protocol conversion. Enables interconnection between CAN and serial devices, compatible with CAN FD and CAN 2.0A/2.0B protocols.

Features industrial-grade design, supports -40°C ~ 85°C stable working, 9V ~ 36V wide power input, 5Kbps~1Mbps CAN FD arbitration domain baud rate, and 100Kbps~5Mbps CAN FD data domain baud rate.

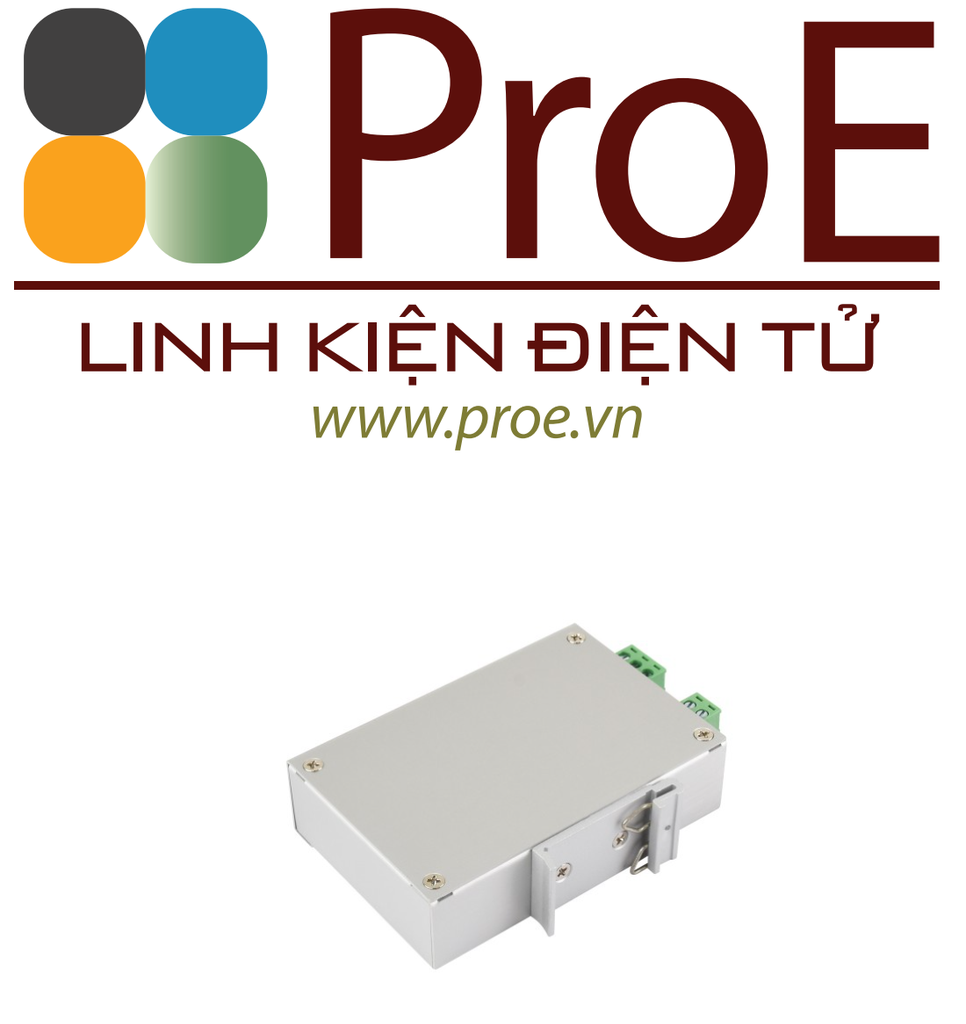

Supports parameter configuration via host computer, built-in 120Ω terminal resistors (switchable via DIP switches), supports DIN-rail mounting, easy to configure and install.

Specifications

Basic Function

supports CAN FD To RS232/RS485 Bidirectional Data Communication

arbitration domain baud rate

CAN FD arbitration domain baud rate : 5Kbps ~ 1Mbps

data domain baud rate

CAN FD data domain baud rate：100Kbps ~ 5Mbps

Industrial-grade design

Supports multiple conversion modes

Transparent conversion, transparent conversion with ID, standard conversion, Modbus protocol conversion, and custom frame headers and trailers conversion

Transparent conversion

Achieve original conversion between CAN FD frames and serial frames

Transparent Conversion with ID

Transfer the ID information in serial frames to CAN FD frames

Standard Conversion

Conversion between 13-byte standard CAN frame format and 69-byte standard CAN FD frame format

Modbus Protocol Conversion

Realize Modbus data transmission over CAN bus through packet segmentation and reassembly

Custom protocol conversion

Users can customize frame headers and trailers to enable bidirectional data conversion

3 Frame Filtering Methods, 32 Sets of Configurable Filters

Supports Only Receive Extended Frame, Only Receive Standard Frame, and Custom Receive Frame ID. In custom mode, users can set up to 32 sets of filter methods to avoid large amounts of data interference

Configuration parameters via host computer

Application Scenarios

BMS Battery Monitoring

Industrial Automation

EV Charging

Traffic Monitoring

Interface introduction

Outline dimensions

Resources & Services

Wiki: www.waveshare.com/wiki/CAN_FD_TO_RS232/RS485

Weight: 0.134 kg

1. CAN FD TO RS232/RS485 x1
2. Power plug adapter x1
3. Screwdriver x1
