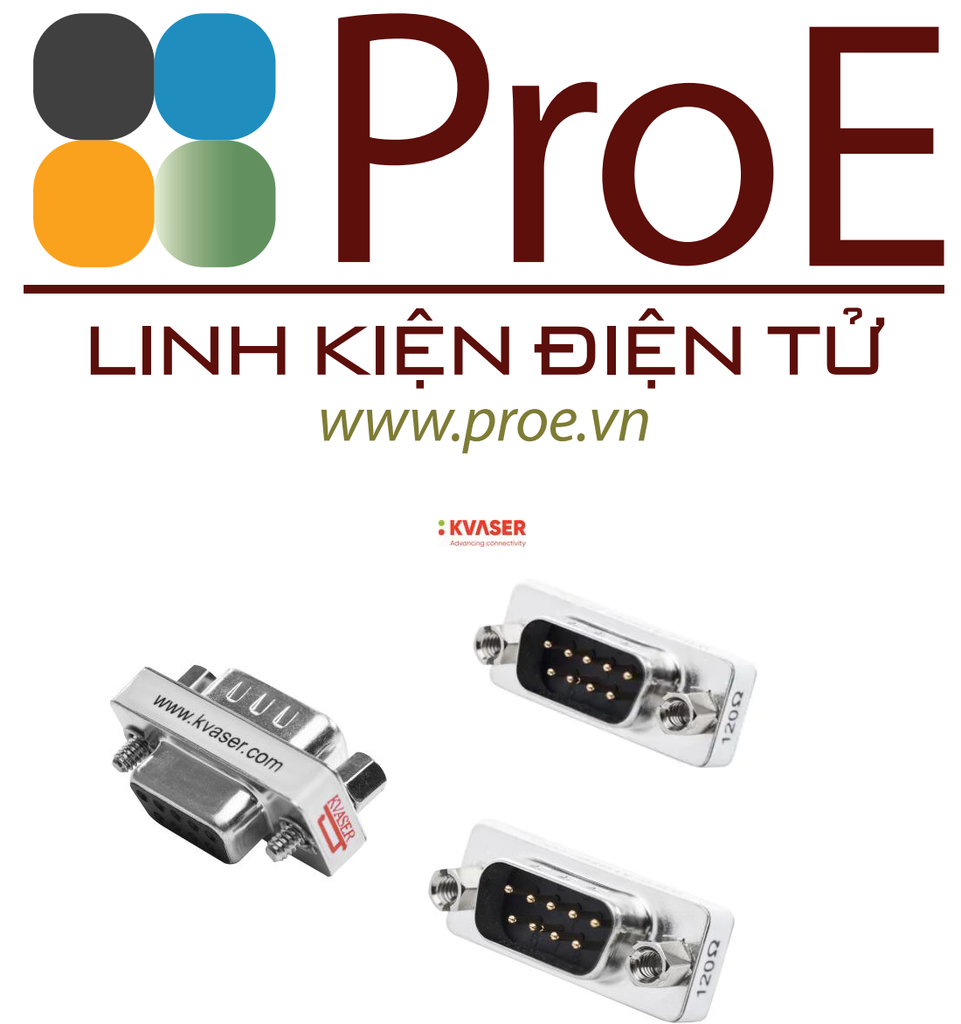

Kvaser DSUB 9-Pin Plug to DSUB 9-Pin Receptacle

Termination Adapter, Kvaser DSUB 9-Pin Plug to DSUB 9-Pin Receptacle, 120 Ohm, CAN

00801-4 is a D-sub 9 pin 120 ohm termination adapter. It is a CAN adapter with a 9-pin male D-Sub connector at one end and a 9-pin female D-Sub socket at the other. Between CAN High (pin 7) and CAN Low (pin 2), there is a built-in 120 ohm CAN terminating resistor. This adapter provides quick and easy termination to any Kvaser high-speed CAN product. The Kvaser CAN termination adapter is used when there is a need to terminate a CAN node without internal termination or when no CAN node is connected to the bus. It has a 9-pin male D-Sub plug connector and a 9-pin female D-Sub socket. A 120 ohm terminating resistor sits between pins 2 and 7.

• Convert from: D sub 9 position plug
• Convert to: D sub 9 position receptacle
• Operating temperature range from -30°C to +85°C
• DSUB 9 connector
• Linux, Win 7,Win 10,Win 8 operating system

Thông số kỹ thuật

Convert From

D Sub 9 Position Plug

Convert To

D Sub 9 Position Receptacle

D Sub Connector B

Standard D Sub

Product Range

-

Contact Plating

-

D Sub Connector A

Standard D Sub

Convert From Gender

Plug

Convert To Gender

Receptacle

Contact Material

-

SVHC

No SVHC (21-Jan-2025)
