CAN FD Protocol Converter

CAN FD Protocol | 5 Data Conversion Modes | Industrial Performance

Features at a glance

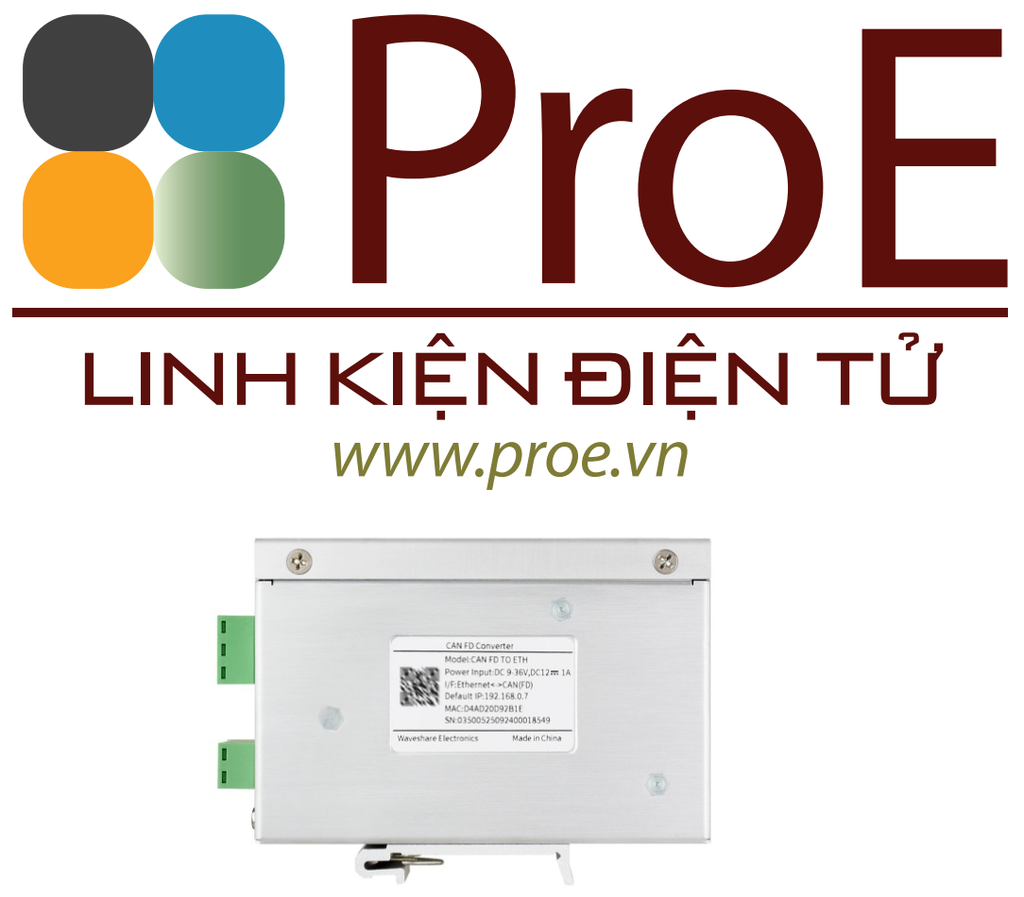

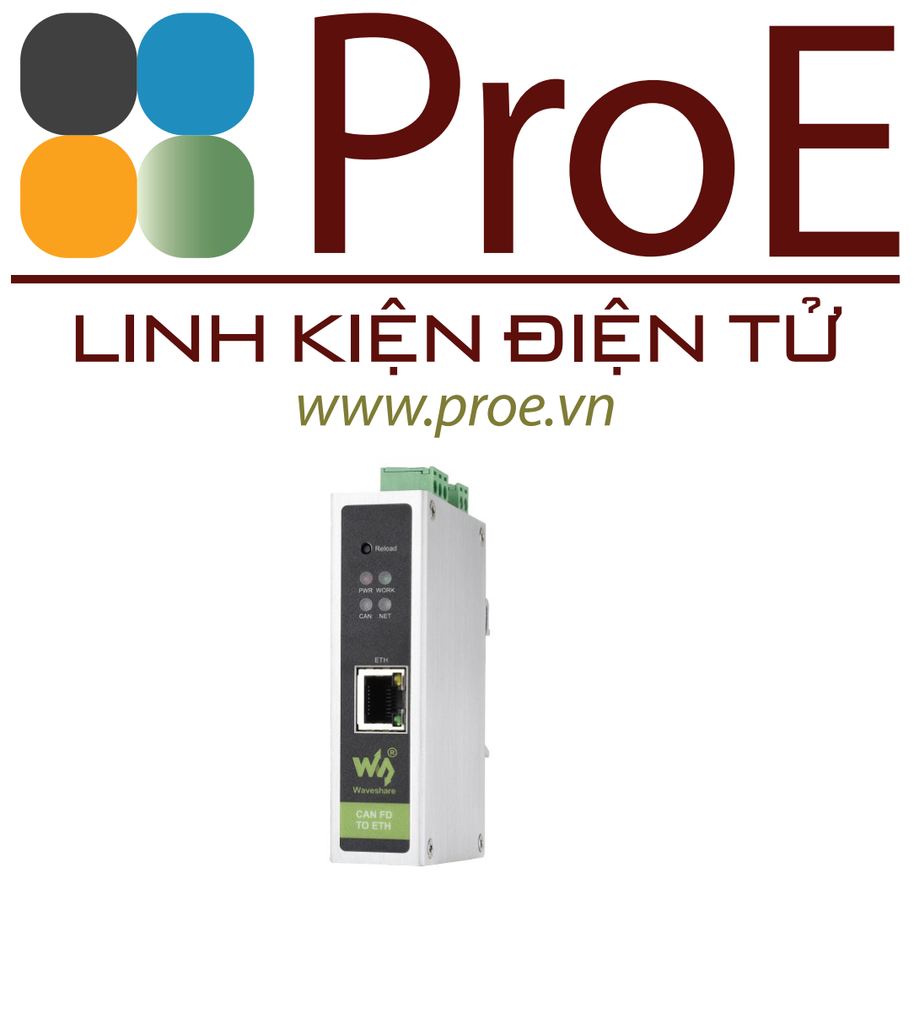

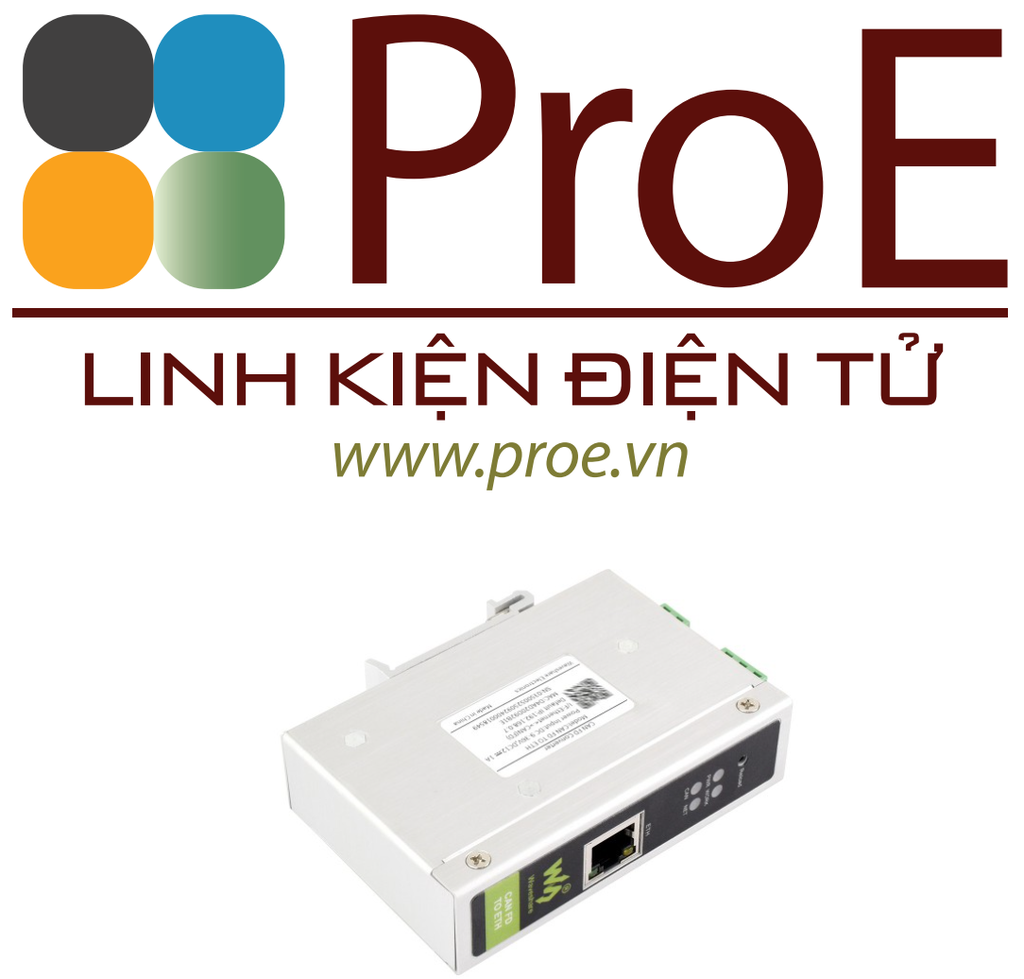

The CAN FD TO ETH is a DIN-rail CAN FD to ETH bidirectional converter, featuring high-speed, low-latency, stable performance, ease of use, and cost-effectiveness. It supports five data conversion modes: transparent conversion, transparent conversion with ID, standard protocol conversion, Modbus protocol conversion, and custom protocol conversion. Enables interconnection between CAN and Network port devices, compatible with CAN FD and CAN 2.0A/2.0B protocols.

Features industrial-grade design, supports -40°C ~ 85°C stable working, 9V ~ 36V wide power input, 5Kbps~1Mbps CAN FD arbitration domain baud rate, and 100Kbps~5Mbps CAN FD data domain baud rate.

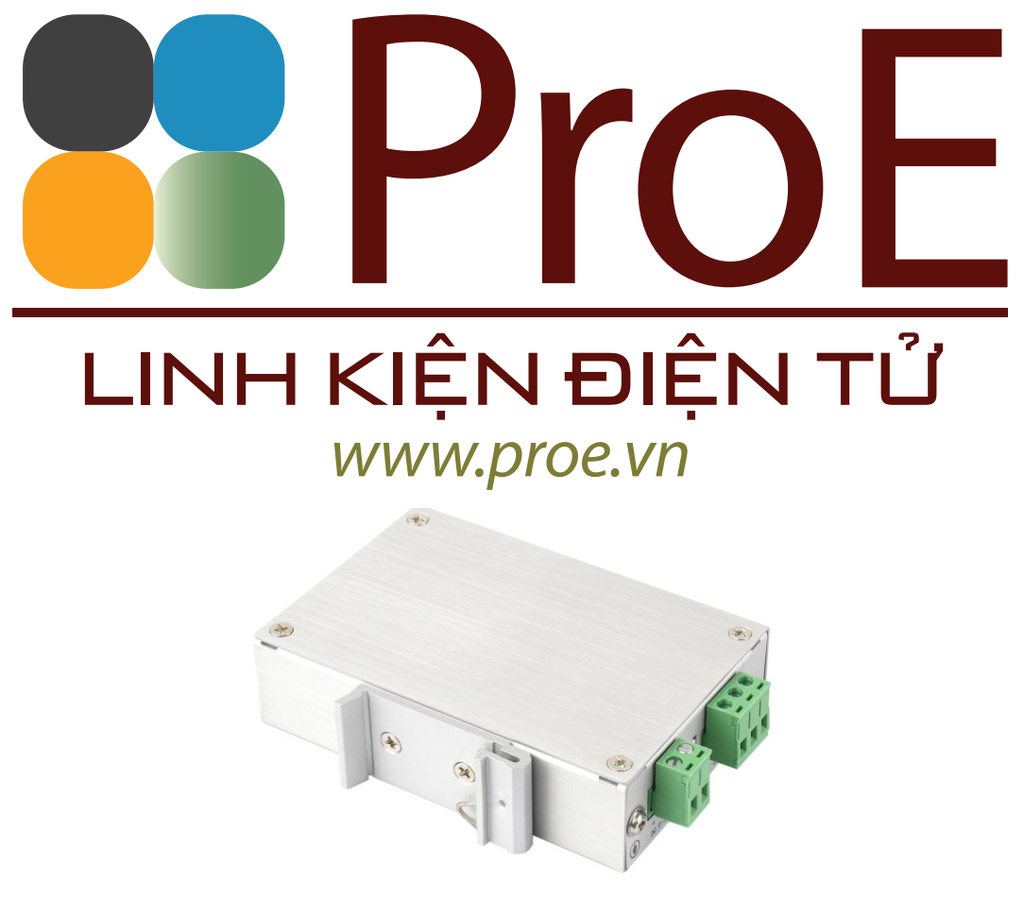

Supports parameter configuration via host computer, built-in 120Ω terminal resistors (switchable via DIP switches), supports DIN-rail mounting, easy to configure and install.

Specifications

Basic Function

supports CAN FD To ETH Bidirectional Data Communication

arbitration domain baud rate

CAN FD arbitration domain baud rate : 5Kbps ~ 1Mbps

data domain baud rate

CAN FD data domain baud rate：100Kbps ~ 5Mbps

Industrial-grade design

Supports multiple conversion modes

Transparent conversion, transparent conversion with ID, standard conversion, Modbus protocol conversion, and custom frame headers and trailers conversion

Transparent conversion

Achieve original conversion between CAN FD frames and Ethernet frames

Transparent Conversion with ID

Transfer the ID information in Ethernet frames to CAN FD frames

Standard Conversion

Conversion between 13-byte standard CAN frame format and 69-byte standard CAN FD frame format

Modbus Protocol Conversion

Realize Modbus data transmission over CAN bus through packet segmentation and reassembly

Custom protocol conversion

Users can customize frame headers and trailers to enable bidirectional data conversion

3 Frame Filtering Methods, 32 Sets of Configurable Filters

Supports Only Receive Extended Frame, Only Receive Standard Frame, and Custom Receive Frame ID. In custom mode, users can set up to 32 sets of filter methods to avoid large amounts of data interference

Configuration parameters via host computer

Function Overview

Heartbeat Packet Function

CAN Heartbeat Packet: Acts as a fixed query command, sending heartbeat packets through the CAN network.
Network Heartbeat Packet: Notifies the server that the device is active and maintains a stable network connection with the server.

Registration Packet Function

Allows the server to identify the source device of incoming data, or serves as an authentication key for the device to access the server’s authorized functions.

Application Scenarios

BMS Battery Monitoring

Industrial Automation

EV Charging

Traffic Monitoring

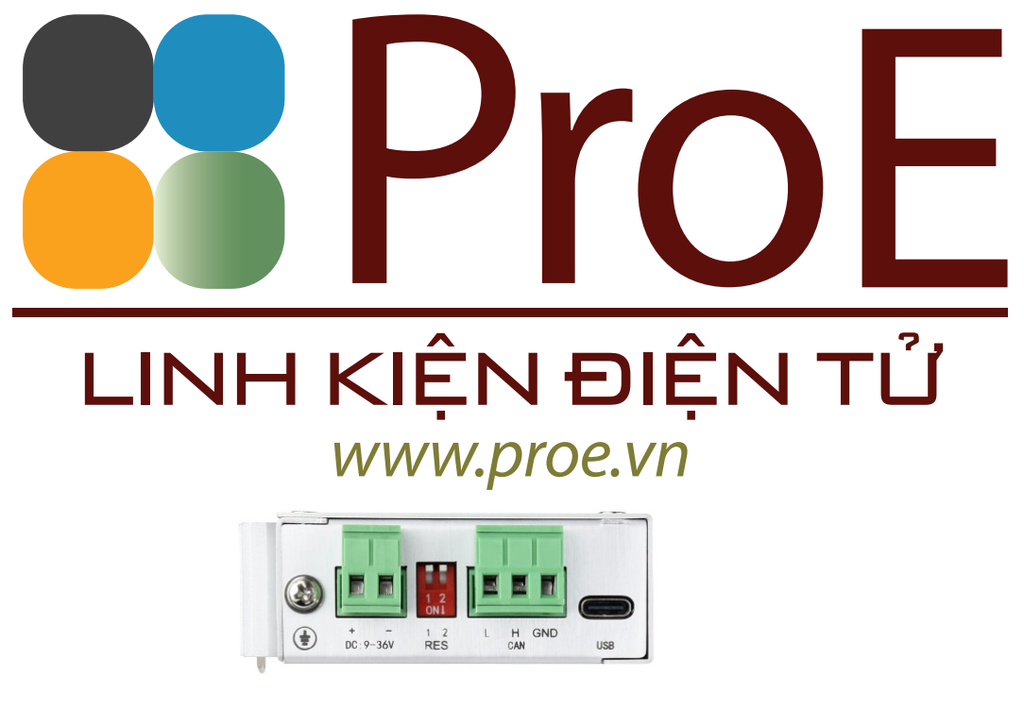

Interface introduction

Outline dimensions

Resources & Services

Wiki: www.waveshare.com/wiki/CAN_FD_TO_ETH

The power supply is not included, it is recommended to use with a 12V Power Adapter

1. CAN FD TO ETH x1
2. Power plug adapter x1
3. Screwdriver x1
