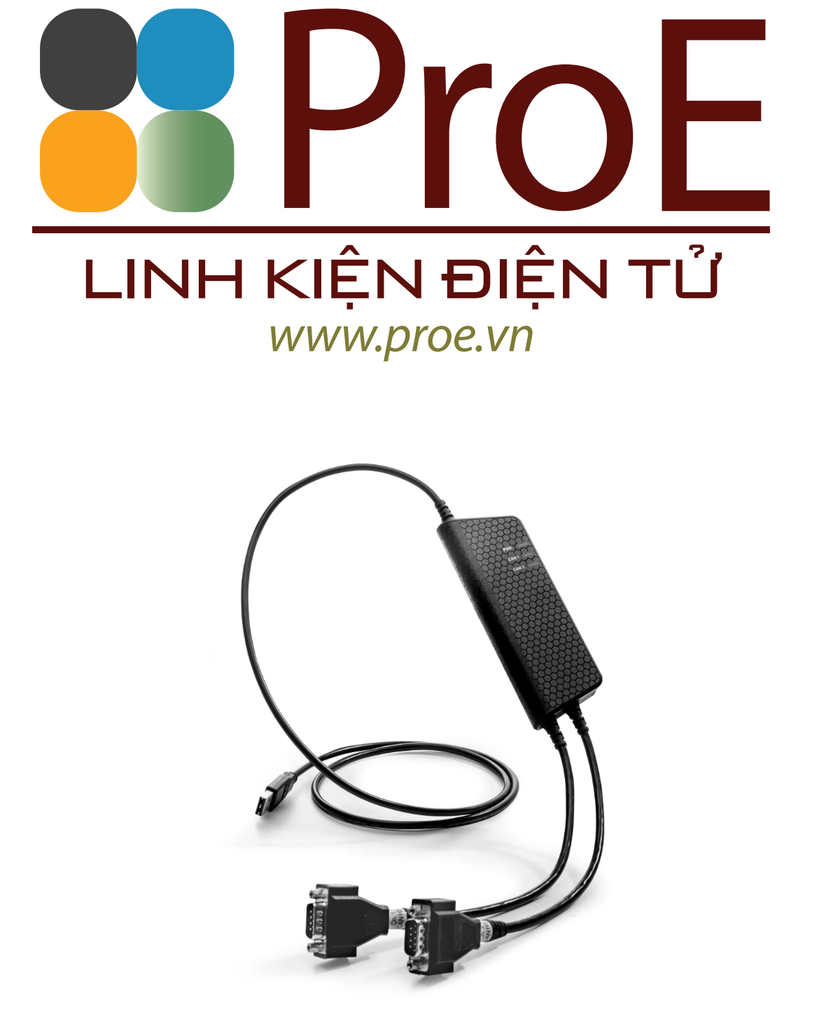

Kvaser USBcan Pro 2xHS v2

The USBcan Pro 2xHS v2 is a USB to dual-channel CAN or CAN FD interface with scriptinge capability. With a standard USB connector and two high-speed CAN channels with ISO 11898-2 compliant CAN transceivers in two separate 9-pin D-SUB CAN connectors, it is high-performance, yet compact, and can be used as a simple dual-channel interface to connect two high speed CAN buses to a PC or mobile computer, or can be programmed to do more. The Pro version is shipped with Kvaser TRX, a lightweight development environment that lowers the bar when starting programming the device.

Tech Specs

Bit Rate (kbps)

50 - 8000 kbps

Height

20 mm

Length

170 mm

Weight

158 g

Messages Per Second Receive

20000 mps

Messages Per Second Sending

20000 mps

Connectors

DSUB 9

Interfaces

USB

CAN FD Bitrate

Up to 8 Mbit/s

Timestamp Resolution (µs)

1 µs

Error Counters Reading

Yes

Error Frame Generation

Yes

Galvanic Isolation

Yes

Silent Mode

Yes

Regulatory Compliance

CE, FCC

Operating System

Windows 7 (IA-32 and x86-64), Windows 8 (IA-32 and x86-64), Windows 10 (IA-32 and x86-64), Windows 11 (x86-64), Linux

Temp range

-40 °C to 85 °C

t script

Yes

Categories

Interfaces, Hardware

Channels

2
