STM8-TSSOP20, Programmer Adapter

Enplas IC Test & Burn-in Socket with a simple board, specifically designed for STM8 microcontroller in TSSOP20(0.65mm pitch) package

Features

• 4-pin SWIM Port for programming or testing
• External crystal can be connected via on board socket for system clock
• All the MCU pins are accessible on expansion connectors
  • pin header pitch: 2.54mm(100mil)

Supported Devices

STM8 microcontroller in TSSOP20(0.65mm pitch) package with compatible pinouts:

• STM8L051FxPx / STM8L101FxPx / STM8L151FxPx / STM8S003FxPx
• STM8S103FxPx / STM8S903FxPx / STM8SPLNB1

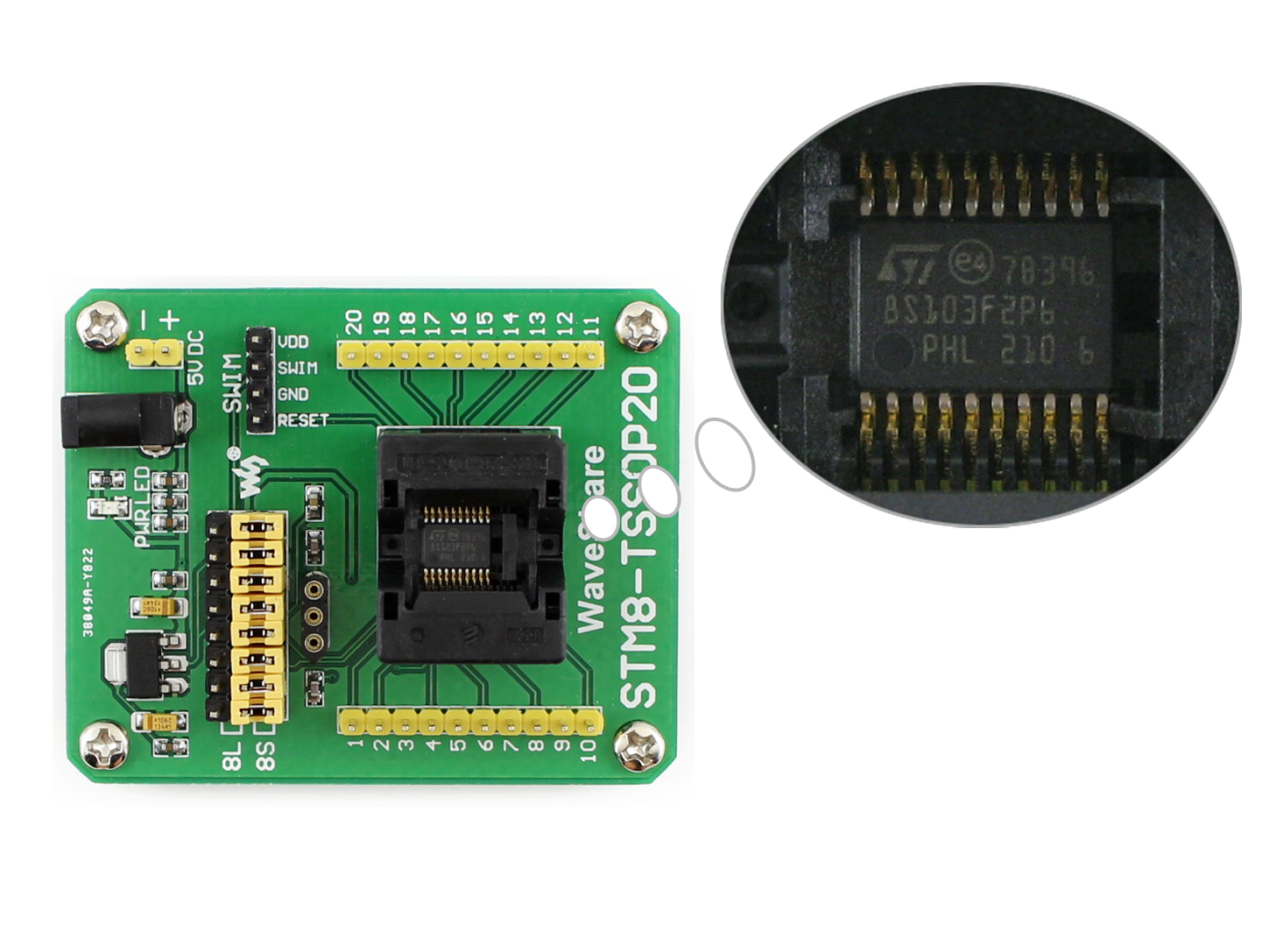

Photos

1. SWIM port
   • for programming/debugging/testing
   • compatible with ST-LINK
2. Power indicator
3. Pin headers connected to MCU pins
   • clearly labeled with onboard marks
   • easy for testing and further expansion
4. 3.3V onboard regulator
   • AMS1117-3.3
5. 5V power input
   • DC jack or 2-pin header
6. External crystal socket
   • insert crystal to the holes on two sides, regardless of the middle hole
7. MCU selection jumpers
   • 8S for STM8S1xx
   • 8L for STM8L1xx
