NUCLEO-8S208RB

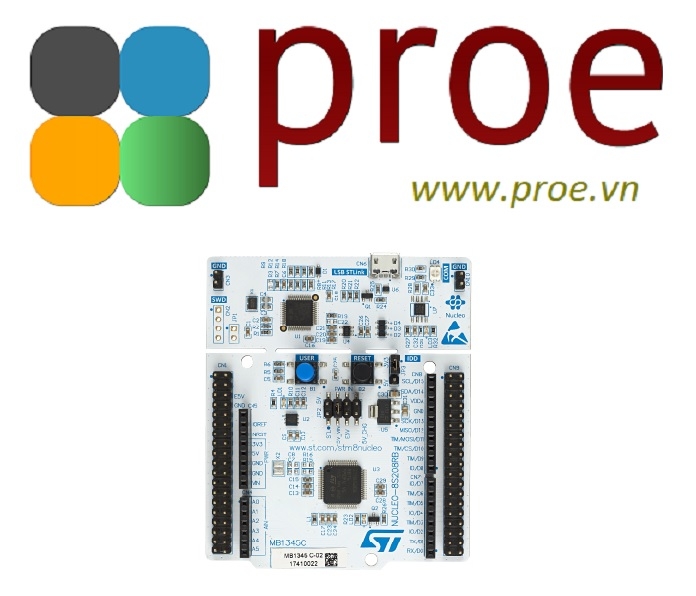

The STM8 Nucleo-64 boards provide an affordable and flexible way for users to try out new concepts and build prototypes with the LQFP64-packaged STM8 microcontroller, which provides various combinations of performance, power consumption and features.

The Arduino™ Uno V3 connectivity support, and the ST morpho headers allow easy expansion of the Nucleo open development platform functionality with a wide choice of specialized shields.

The STM8 Nucleo-64 boards do not require any separate probe as they integrate the ST-LINK/V2-1 debugger and programmer.

Key Features

• STM8 microcontroller in LQFP64 package
• Flash memory size:
  • 64 Kbytes for STM8L152R8T6
  • 128 Kbytes for STM8S208RBT6
• 4 LEDs
  • USB communication (LD4)
  • 5 V STLINK (LD3)
  • User (LD2)
  • Power (LD1)
• 2 push-buttons: USER and RESET
• 32.768 kHz LSE crystal oscillator for the NUCLEO-8L152R8 only
• Board expansion connectors:
  • Arduino^™ Uno V3
  • ST morpho extension pin headers for full access to all STM8 I/Os
• Flexible board power-supply:
  • USB V_BUS or external source (3.3 V, 5 V, 7 - 12 V)
  • Power management access point
• On-board ST-LINK/V2-1 debugger and programmer with SWIM connector
• USB re-enumeration capability. Three different interfaces supported: Virtual COM port, mass storage, debug port
• Comprehensive free software STM8 libraries including a variety of software examples
• Support of a wide choice of Integrated Development Environments (IDEs) including STMicroelectronics free STVD-STM8 (using Cosmic toolchain), IAR™, Cosmic free IDEA
