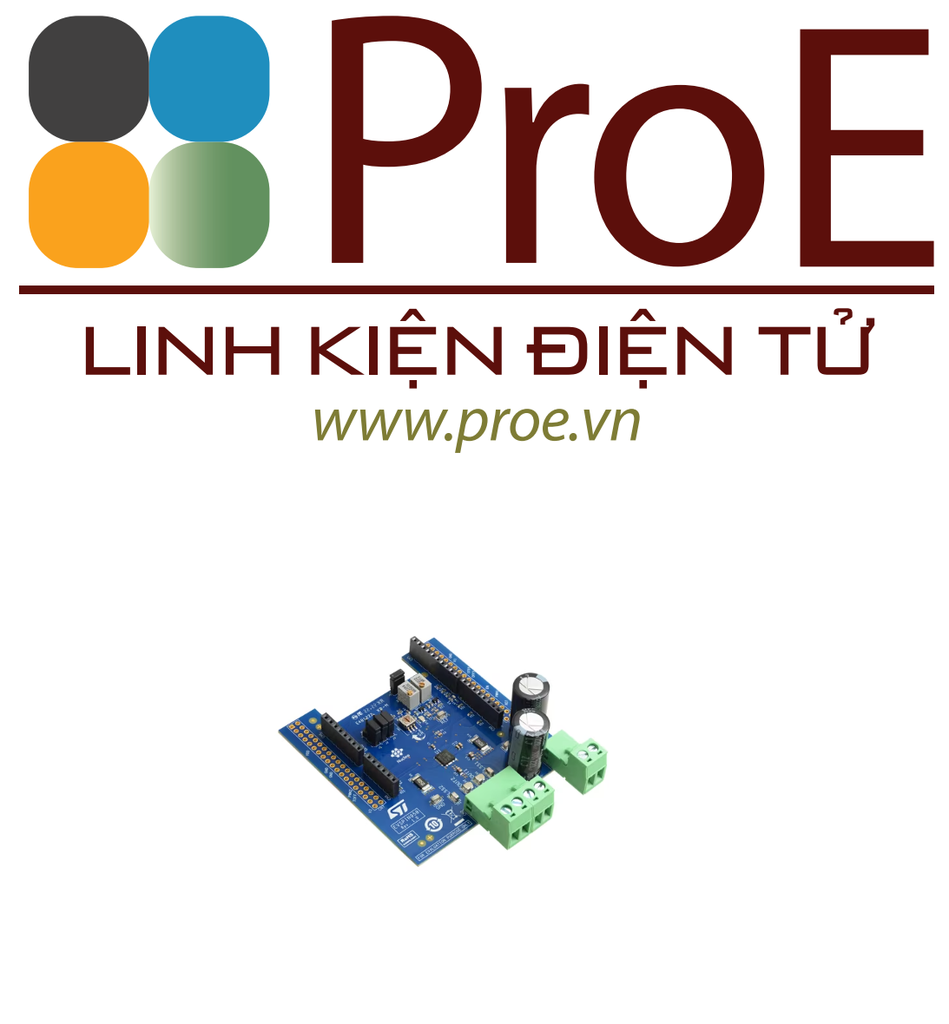

Single brushed DC motor driver expansion board based on STSPIN958
- Mã sản phẩm: EVSPIN958
- Nhà sản xuất: STMicroelectronics
- Website hỗ trợ: https://www.proe.vn
4.200.000₫
Description
The EVSPIN958 single brushed DC motor driver expansion board is based on the STSPIN958.
It provides an affordable and easy-to-use solution for the implementation of brushed DC motor driving applications. Thanks to the parallel operation, it can be easily converted to a single half-bridge with double current capability. In addition to the internal current limiter, the integrated amplifiers allow it to be used in systems with external current control. The EVSPIN958 is compatible with the Arduino® UNO R3 connector and most STM32 Nucleo boards.
-
All features
- Voltage range from 5 V to 58 V
- Phase current up to 5 A r.m.s
- Adjustable output slew rate
- Seven different driving modes
- Current limiter with adjustable off-time
- Two integrated amplifiers with fixed gain
- Full protection set including: overcurrent, undervoltage lockout, and thermal shutdown
- Compatible with Arduino® UNO R3 connector and STM32 Nucleo boards
