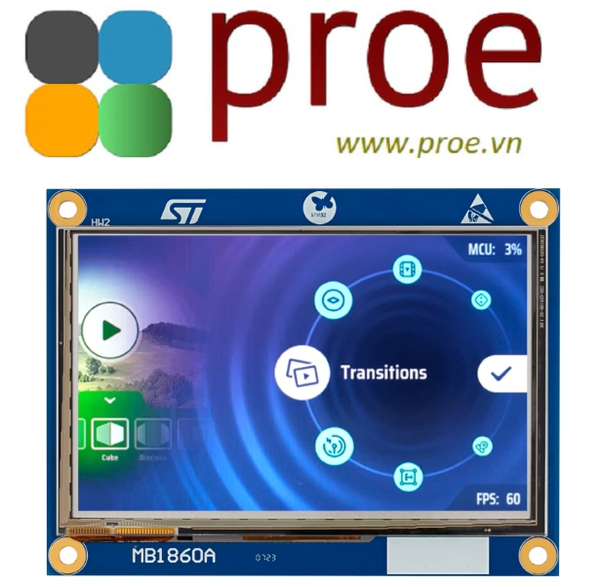

STM32U5G9J-DK2 Discovery kit with STM32U5G9ZJT6Q MCU

New processing unit optimizes rendering of vector graphics and animations such as flips, spins, scaling and more, vastly increasing the number of frames per second - fully integrated in X-CUBE-TOUCHGFX.

Description

The STM32U5G9J-DK2 Discovery kit is a complete demonstration and development platform for the STM32U5G9ZJT6Q microcontroller, featuring an Arm^® Cortex^®‑M33 core with Arm^® TrustZone^®.

Leveraging the innovative ultra-low power-oriented features, 3 Mbytes of embedded SRAM, 4 Mbytes of embedded flash memory, and rich graphics features, the STM32U5G9J-DK2 Discovery kit enables users to prototype applications with state-of-the-art energy efficiency, as well as providing stunning and optimized graphics rendering with the support of a 2.5D Neo-Chrom accelerator, Chrom-ART Accelerator, and Chrom-GRC™ MMU.

The STM32U5G9J-DK2 Discovery kit integrates a full range of hardware features that help the user evaluate all the peripherals, such as a 5" RGB 800x480 pixels TFT colored LCD module with a 24‑bit RGB interface and capacitive touch panel, USB Type-C^® HS, Octo‑SPI flash memory device, ARDUINO^®, and STLINK-V3EC (USART console).

The STM32U5G9J-DK2 Discovery kit integrates an STLINK-V3EC embedded in-circuit debugger and programmer for the STM32 microcontroller with a USB Virtual COM port bridge and comes with the STM32CubeU5 MCU Package, which provides an STM32 comprehensive software HAL library as well as various software examples.

• All features

  • Ultra-low-power STM32U5G9ZJT6Q microcontroller based on the Arm^® Cortex^®‑M33 core with Arm^® TrustZone^®, featuring 4 Mbytes of flash memory, 3 Mbytes of SRAM, and SMPS, in an LQFP144 package
  • 5" 800 × 480 pixels TFT LCD module with 16.7M color depth, parallel RGB interface, and capacitive touch panel
  • USB Type-C^® with USB 2.0 high-speed interface, UCPD Sink only
  • Low-power system designed for VDD at 3.3 V only
  • 1-Gbit Octo‑SPI flash memory
  • Two user LEDs
  • User and reset push-buttons
  • Board connectors:
    • ST-LINK USB Type-C^®
    • User USB Type-C^®
    • Arm^® Cortex^® MIPI10 connector (SWD/JTAG/trace)
    • Tag‑Connect™ 10-pin footprint
    • ARDUINO^® Uno V3 expansion
    • One double-row 2.54 mm pitch expansion connector for additional peripherals prototyping
  • On-board STLINK-V3EC debugger/programmer with USB re-enumeration capability: mass storage, Virtual COM port, and debug port
  • Comprehensive free software libraries and examples available with the STM32CubeU5 MCU Package
  • Support of a wide choice of Integrated Development Environments (IDEs) including IAR Embedded Workbench^®, MDK-ARM, and STM32CubeIDE
