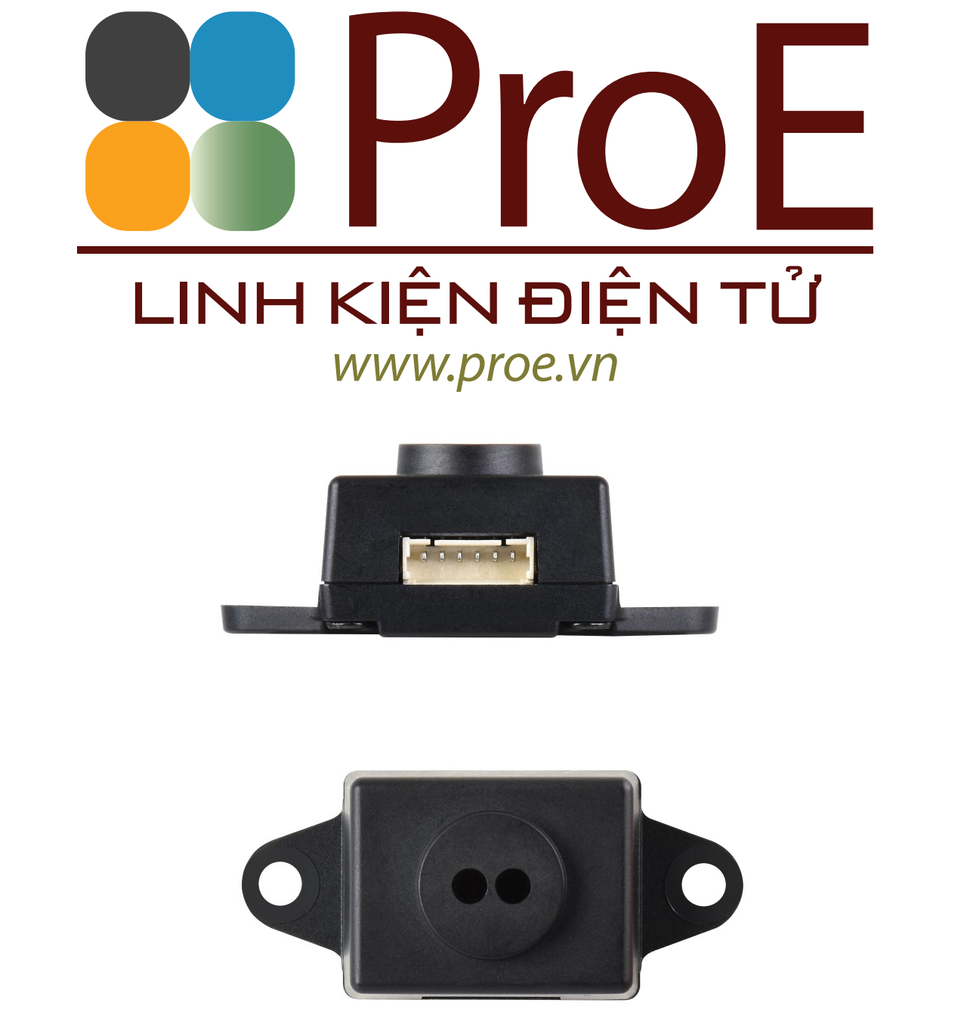

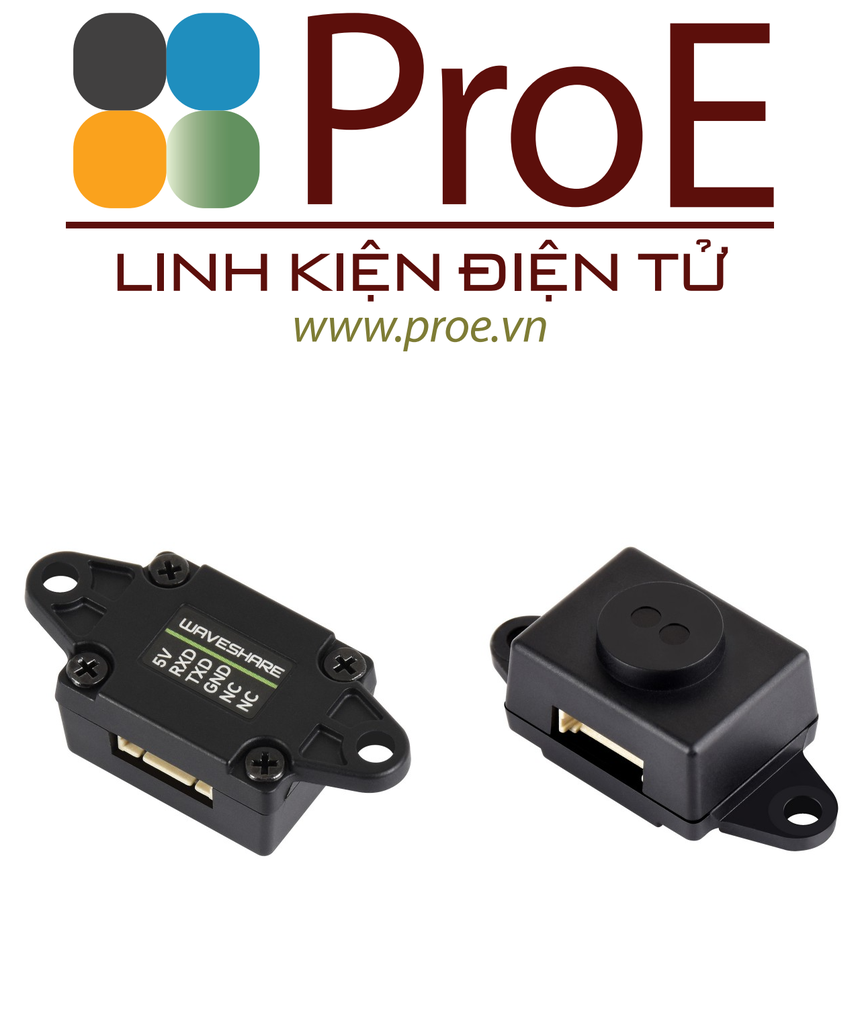

TOF MINIF Range Sensor
- Mã sản phẩm: TOF MINIF Range Sensor 33346
- Nhà sản xuất: Waveshare
- Website hỗ trợ: https://www.proe.vn
890.000₫
Giá thị trường:
TOF (time of flight) Laser Range Sensor, based on D-TOF Single-Point Laser Sensor, UART Communication Support
TOF MINIF Laser Range Sensor
long range | Short Blind Zone | stable/accurate/sensitive | indoor/outdoor
Provides resources for Raspberry Pi, ESP32, Raspberry Pi Pico, Arduino, etc.
Version Options

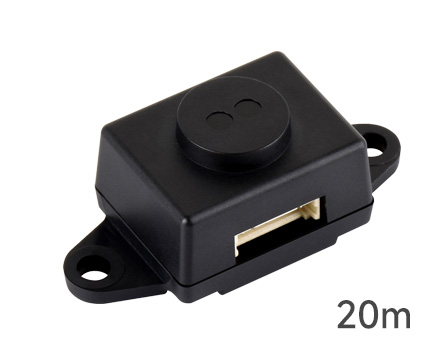

TOF MINIF Range Sensor
0.02m ~ 20m typical measurement range
TOF MINIF Range Sensor (B)
0.02m ~ 5m typical measurement range
Product overview
The TOF MINIF Range Sensor is a laser ranging sensor based on Time-of-Flight (TOF) technology. Built-in controller and ranging algorithm, providing a measurement range of 0.02 ~ 5m/20m with an accuracy within ± (1% ~ 3%). Supports UART communication and features an ultra-narrow FOV for long-range measurement. Suitable for both indoor and outdoor environments, with ambient light resistance of up to approximately 100K Lux, enabling applications such as distance measurement, robotic obstacle avoidance, path planning, ceiling detection, and material level measurement.
Specifications
| Module | TOF MINIF Range Sensor | TOF MINIF Range Sensor (B) |
|---|---|---|
| Typical measuring range | 0.02m ~ 20m | 0.02m ~ 5m |
| Typical measuring accuracy | ± (1% ~ 3%) | ± (1% ~ 3%) |
| Field of view (FOV) | 3°±0.5° | 3°±0.5° |
| Refresh rate | 30Hz (Supports bulk customization for higher frequency, up to 90Hz) |
30Hz (Supports bulk customization for higher frequency, up to 90Hz) |
| Ambient light tolerance | 100K Lux | 100K Lux |
| Operating temperature | -20°C ~ +70°C | -20°C ~ +70°C |
| Operating humidity | 35% ~ 80%RH | 35% ~ 80%RH |
| Laser Safety Class | LASER CLASS 1 | LASER CLASS 1 |
| Wavelength | 940nm | 940nm |
| Communication interface | UART | UART |
| Baud rate | 115.2Kbps (Supports bulk customization for higher rate, up to 2Mbps) |
115.2Kbps |
| Power supply | 4V ~ 5.6V | 4V ~ 5.6V |
| Communication Level | 3.3V | 3.3V |
| Power consumption | 170mW | 100mW ~ 140mW |
| Weight | 3.6g | 3.6g |
| Case Material | PC | PC |
| Storage temperature | -40℃ ~+80℃ | -40℃ ~+80℃ |
| Dimensions (L × W × H) |
35.5 x 16.5 x 13.5 (mm) | 35.5 × 16.2 × 13.5 (mm) |
Cost effective solution
long-range low-cost ranging module with a Measurement Range of 0.02m ~ 5m/20m,
high stability, high accuracy, high sensitivity ranging
UART communication support
applications
Hydraulic Stacking Detection
Hardware connection
connecting with Raspberry Pi board
*for reference only, please refer to the package content for detailed part list.
Outline Dimensions
