HDMI to CSI Adapter (B)
- Mã sản phẩm: 36103
- Nhà sản xuất: Waveshare
- Website hỗ trợ: https://www.proe.vn
1.150.000₫
Wiki: docs.waveshare.com/HDMI_to_CSI_Adapter_B
Weight: 0.007 kg
- HDMI to CSI Adapter (B) x1
- 22PIN 0.5mm pitch FFC cable (opposite) 200mm x1
1
2
HDMI to CSI Adapter type B, 4K at 30fps support, compatible with Raspberry Pi series boards and multiple Luckfox Linux Boards
HDMI to CSI Adapter
Compatible with Raspberry Pi Series Boards
The HDMI to CSI Adapter (B) is an adapter based on the Rockchip RK628H chip, designed to convert HDMI input signal into MIPI CSI video and I2S audio signals. Supports HDMI input with up to 4K at 30fps resolution and MIPI CSI output with up to 4K at 30fps resolution. Supports HDMI video downsampling, with adjustable output resolution to meet different requirements. Suitable for video capture from HDMI sources such as PCs, game consoles, and cameras, and compatible with all Raspberry Pi boards and multiple Luckfox Linux boards.
Specifications
| Chip | RK628H | |
|---|---|---|
| Input signal | Video | HDMI 2.0, supports up to 4K at 30fps |
| Audio | HDMI | |
| Output signal | Video | 2/4-lanes MIPI CSI-2, up to 1.3Gbps data rate per channel |
| Audio | I2S audio output, LPCM audio stream format | |
| Operating voltage | 3.3V | |
| Operating temperature | -20 ~ 70°C | |
Device & System Support
Raspberry Pi
Supports Raspberry Pi OS and comes with drivers
Luckfox Pico Zero
Supports Linux and comes with drivers, up to 3840 × 2160 at 15fps input resolution
Luckfox Aura
Supports Linux and comes with drivers, up to 3840 × 2160 at 30fps input resolution
Luckfox Omni3576
Supports Linux and comes with drivers, up to 3840 × 2160 at 30fps input resolution
how to use

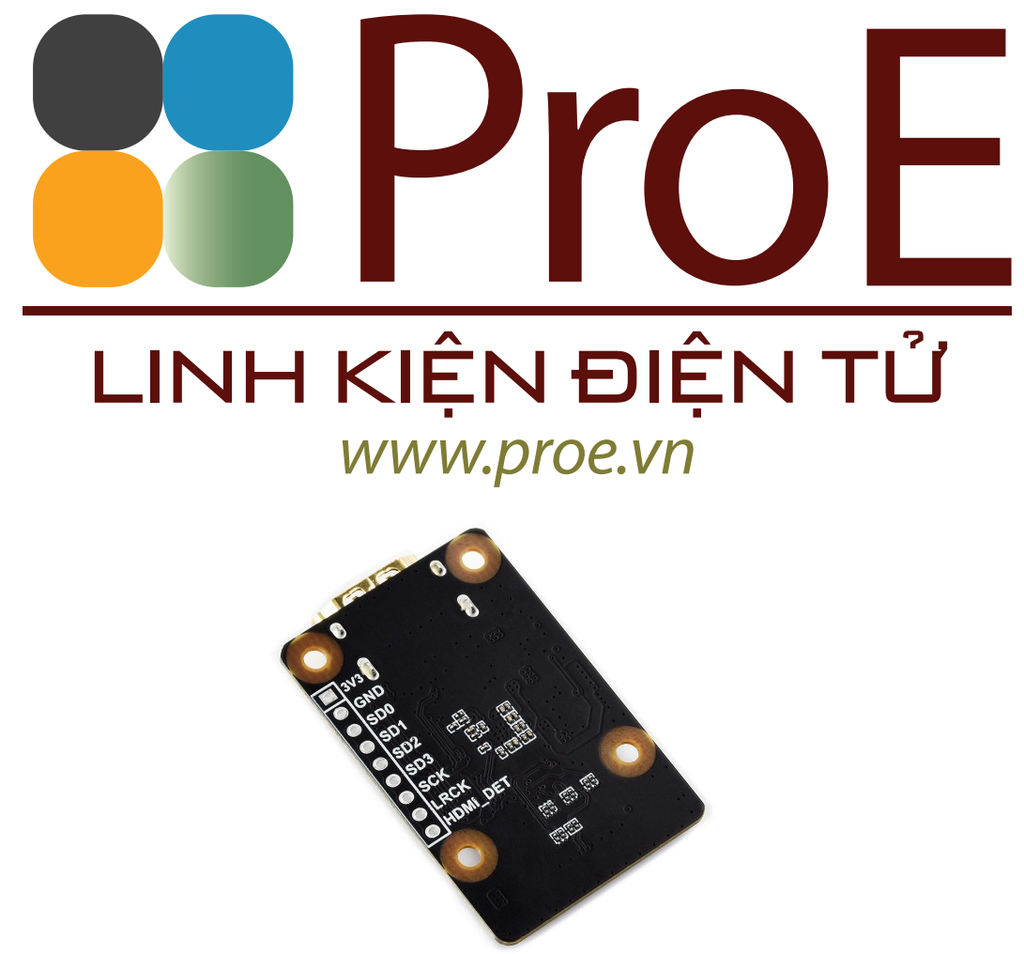

* Note: it is required to connect the reserved solder pad to the I2S pin
of Raspberry Pi for audio output
Connecting with camera and display
* for reference only, please refer to the package content for the detailed part list.
connecting with Raspberry Pi / Luckfox Aura
Connects to Raspberry Pi 5
Connects to Luckfox Aura
* for reference only, the boards and hosts are NOT included in the package.
The FPC Cable is required for Raspberry Pi 4B, supports up to 1080P at 30fps.
Outline dimensions
