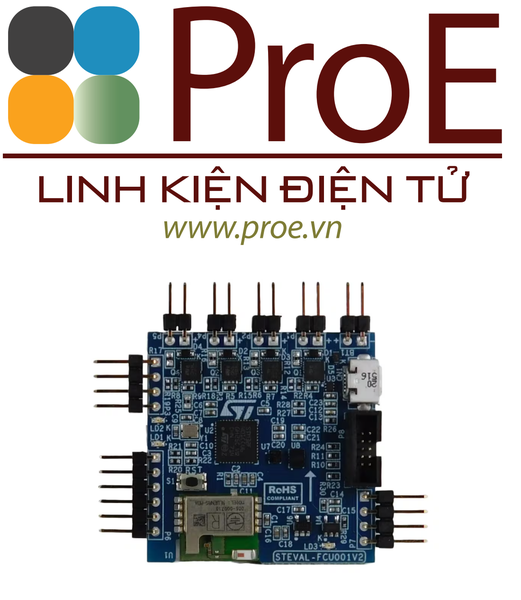

Flight controller unit evaluation board for mini drones
- Mã sản phẩm: STEVAL-FCU001V2
- Nhà sản xuất: STMicroelectronics
- Website hỗ trợ: https://www.proe.vn
3.200.000₫

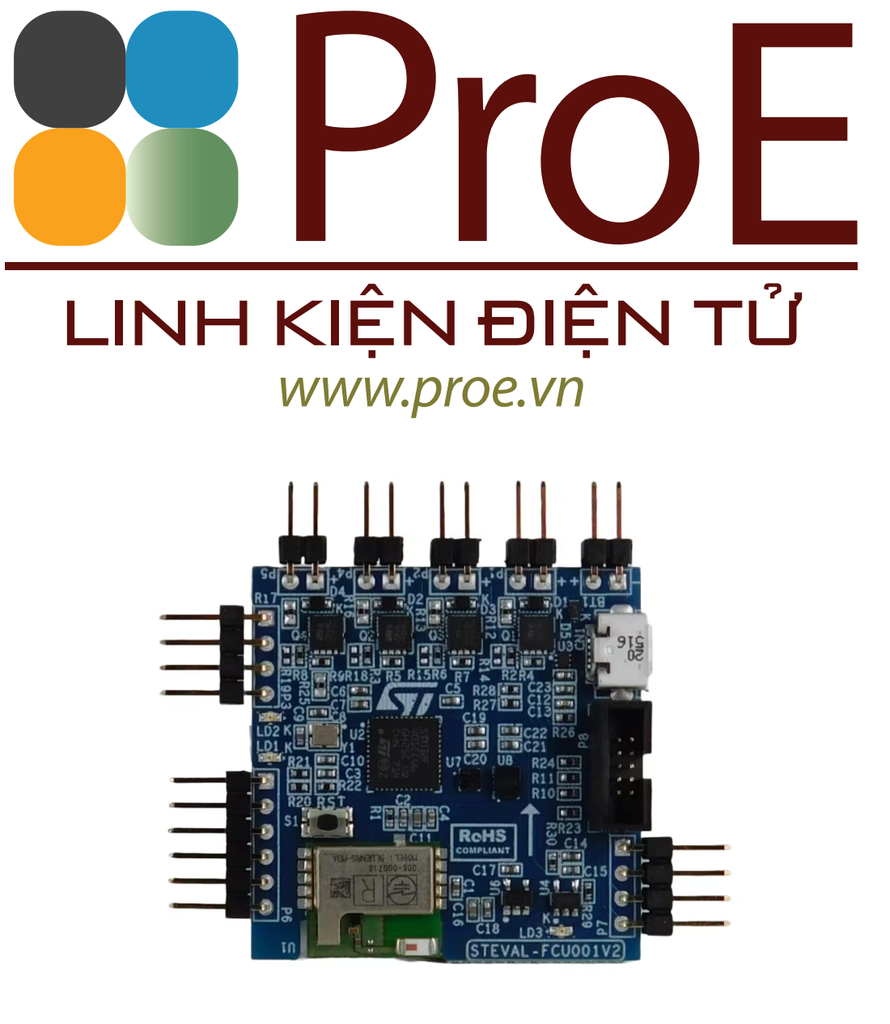

STEVAL-FCU001V2
Flight controller unit evaluation board for mini drones
he STEVAL-FCU001V2 is designed to support quad-copter drone designers.
A complete firmware example project allows the designer to begin flying small or medium sized quad-copters (with brushed or brushless DC motors) immediately and evaluate the performance of the IMU sensors under real flight conditions.
The user can refer to the STEVAL-DRONE02 as its companion kit to make their own mini-drone kit.
The FCU can be controlled by a standard external remote controller (PWM input interface) or by a smartphone or tablet through the on-board Bluetooth low energy module (CE, FCC, ARIB, BQE certified).
Pressure sensor is also embedded to support 3D navigation applications.
SWD, I²C and USART connectors are available for firmware development and debugging, and to support additional external sensors or RF modules.
-
All features
- Compact flight controller unit (FCU) evaluation board with firmware example for a small or medium sized quad-copter
- On-board LiPo 1-cell battery charger
- Possibility to directly drive 4 DC brushed motors through the low voltage on-board MOSFET or alternatively use external ESC for DC brushless motor configuration
- Main components:
- STM32F401 – 32-bit MCU with ARM® Cortex®
- LSM6DSR – iNEMO intertial module: 3D accelerometer and 3D gyroscope
- LPS22HH – High-performance MEMS nano pressure sensor: 260-1260 hPa absolute digital output barometer
- BlueNRG-M0 – Very low power network processor module for Bluetooth® low energy v4.2
- STL10N3LLH5 – N-channel 30 V, 9 A, PowerFLAT(TM) STripFET(TM) V Power MOSFET
- STC4054 – 800 mA standalone linear Li-Ion battery charger
- RoHS compliant
- WEEE compliant
